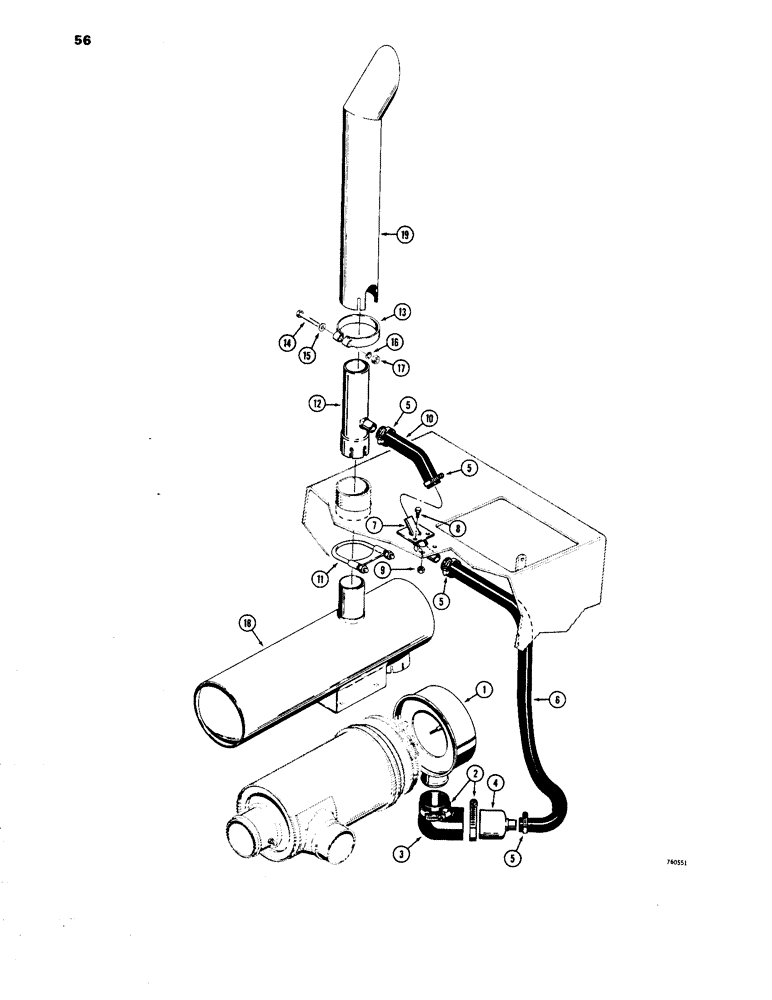

Запчасти Case 1450 (056) - ASPIRATED AIR CLEANER DUST CUP (02) - ENGINE

1

D50943

CUP

- air cleaner

1шт.

2

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - worm, screw, Includes: Ref. 3

2шт.

3

R37129

ELBOW

- red

1шт.

4

R37128

DUST VALVE

VALVE - aspirator

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

6

R41495

INTAKE AIR HOSE,1.25" ID x 48.00"

1.25" ID x 48.00"

1шт.

7

R37124

TUBE - bulk head

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

131-651

NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

2шт.

10

R41494

HOSE - 1-1/4" ID x 9" (32 mm x 229 mm)

1шт.

11

A64801

CLAMP

ASSEMBLY

1шт.

12

R37122

MUFFLER

STACK - aspirator

1шт.

13

R29460

CLAMP

- stack

1шт.

14

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2"

1шт.

15

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

18

REF

INSTRUCTION

MUFFLER - see Figure 58

1шт.

19

REF

INSTRUCTION

STACK - exhaust, see page 59

1шт.

R5928

KIT - aspirated dust cup, machinery item, see Figure 2 for ordering

1шт.
