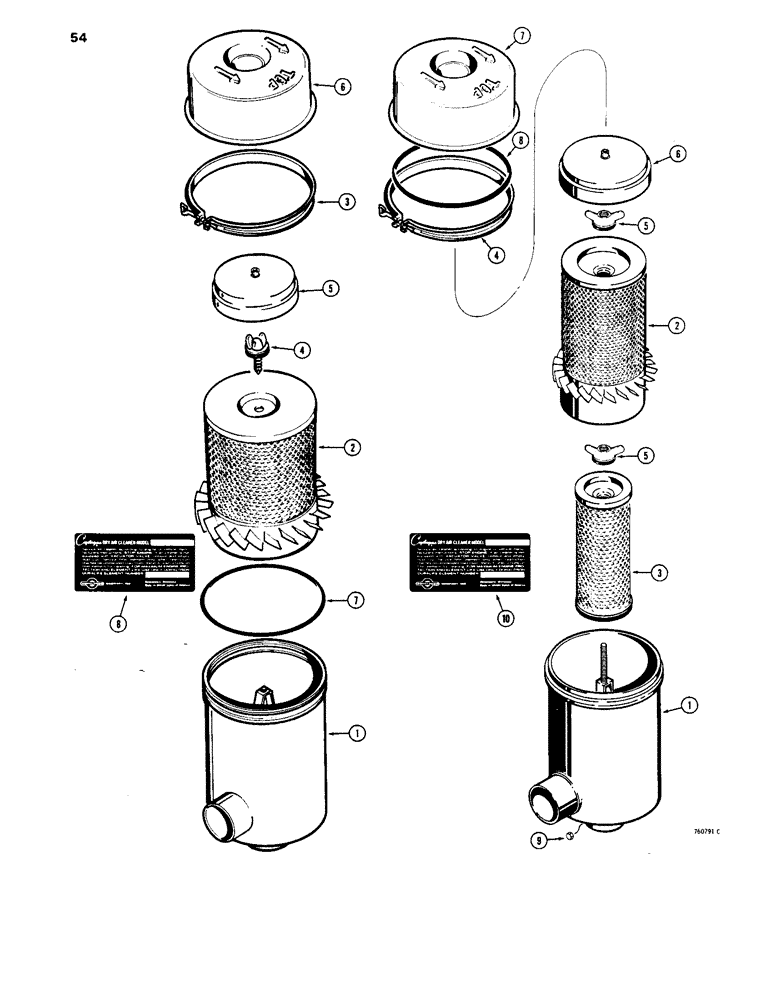

Запчасти Case 1450 (054) - AIR CLEANER, ONE ELEMENT AIR CLEANER (02) - ENGINE

R28797

CLEANER

AIR CLEANER ASSEMBLY - complete, order R36360 for service, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

R29295

FILTER, ELEMENT

ELEMENT - air cleaner

1шт.

3

D50941

CLAMP

- air cleaner

1шт.

4

L35499

NUT

BOLT AND WASHER ASSEMBLY - winged

1шт.

5

D50942

BAFFLE

- air cleaner

1шт.

In the two element air cleaner R78354 should be D78354

1шт.

6

L33819

CUP

- air cleaner

1шт.

7

D50946

GASKET

O-RING

1шт.

8

R31723

DECAL

- air cleaner

1шт.

345-1

ADHESIVE

SEALANT - rubber, 5 oz. tube (147.86 ml)

1шт.

R36360

CLEANER

AIR - complete, 2 elements, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner, 2 element

1шт.

2

R29295

FILTER, ELEMENT

ELEMENT - outer, 2 air cleaner

1шт.

3

R36361

FILTER, ELEMENT

ELEMENT - inner, 2 air cleaner

1шт.

4

D50941

CLAMP

- air cleaner, 2 element

1шт.

5

D78354

WING NUT

NUT AND WASHER - winged, 2 element air cleaner, Includes: Ref. 6 - 9

2шт.

6

D50942

BAFFLE

- 2 element air cleaner

1шт.

7

L33819

CUP

- 2 element air cleaner

1шт.

8

D50946

GASKET

O-RING, 2 element air cleaner

1шт.

9

221-900

CAP

- hex, 1/8" NPT, if used, 2 element air cleaner

1шт.

345-1

ADHESIVE

SEALANT - rubber, 5 oz. tube (147.86 ml), 2 element air cleaner

1шт.

10

R31723

DECAL

- 2 element air cleaner

1шт.
