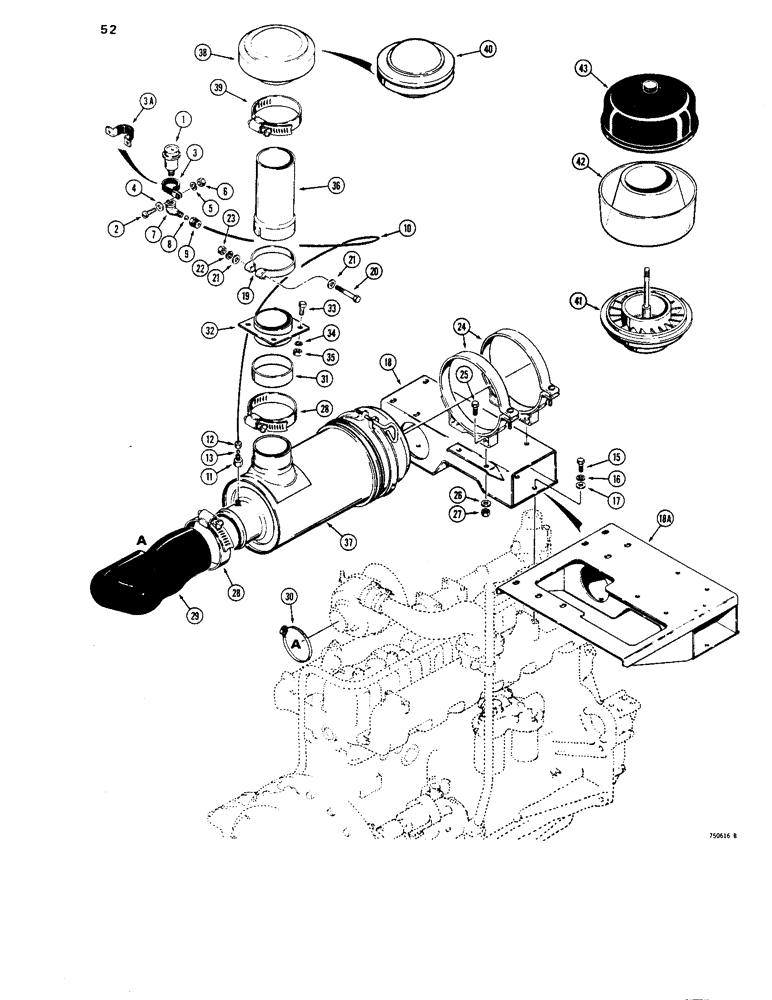

Запчасти Case 1450 (052) - AIR CLEANER AND MOUNTING, TOP INTAKE (02) - ENGINE

1

D47217

INDICATOR

FILTER INDICATOR - air cleaner

1шт.

2

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

BOLT - round head, 1/4" - 20 NC x 3/4", plated (Requires 1-2)

2шт.

3

D45064

CLAMP,1 3/8", Insul, 1/4" Bolt

- indicator "P" style

1шт.

3a

R33808

CLAMP

- indicator, "U" style

1шт.

4

195-18

WASHER,1/4"

- flat, , D45064 clamp 1/4"

1шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Requires 1-2) 1/4"

2шт.

6

25-104

NUT,1/4"-20, G5

(Requires 1-2) 1/4"-20, G5

2шт.

D45588

FITTING

- 90deg., special, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - 90deg.

1шт.

8

D37176

SLEEVE

1шт.

9

D37362

TUBE NUT

1шт.

10

D36945

TUBE

- nylon, filter to air cleaner

1шт.

D35091

PIPE FITTING

FITTING - female, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - female

1шт.

12

D37362

TUBE NUT

1шт.

13

D37176

SLEEVE

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

16

12-6

WASHER

- lock, 3/8"

6шт.

17

195-25

WASHER,3/8"

- flat, 3/8"

6шт.

18

R29386

BRACKET - air cleaner support, before tractor sn 8379608

1шт.

18a

R36968

SUPPORT

BRACKET - air cleaner support, after tractor sn 8379608

1шт.

19

R35673

CLAMP

- stack

1шт.

20

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

21

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

22

92-6

LOCK WASHER,3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

24

A16574

BAND

CLAMP ASSEMBLY - air cleaner mounting

2шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

HHCS - 3/8" - 16 NC x 1"

4шт.

26

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

27

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self lock, 3/8" - 16 NC

4шт.

28

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - worm type

2шт.

29

R28092

INTAKE AIR HOSE,3.00" ID, 5.00" ID x 10.56", SAE 100R4, SAE SC-810

- Air cleaner 3.00" ID, 5.00" ID x 10.56", SAE 100R4, SAE SC-810

1шт.

30

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose

1шт.

31

R35672

SEAL

- air cleaner extension

1шт.

32

R35454

MUFFLER

ADAPTER - stack

1шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

36

R40837

MUFFLER

STACK

1шт.

37

R36360

CLEANER

AIR CLEANER - complete, see Figure 54 ( replaced REF )

1шт.

38

R35458

CAP

- air cleaner, use L45486, Includes: Ref. 39

1шт.

39

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - worm screw

1шт.

40

L45486

AIR CLEANER

CAP - air cleaner, includes bolt and clamp

1шт.

A75056

FILTER

PRE-CLEANER, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

BODY

1шт.

42

L30671

HOUSING

BOWL

1шт.

43

L30669

COVER

1шт.
