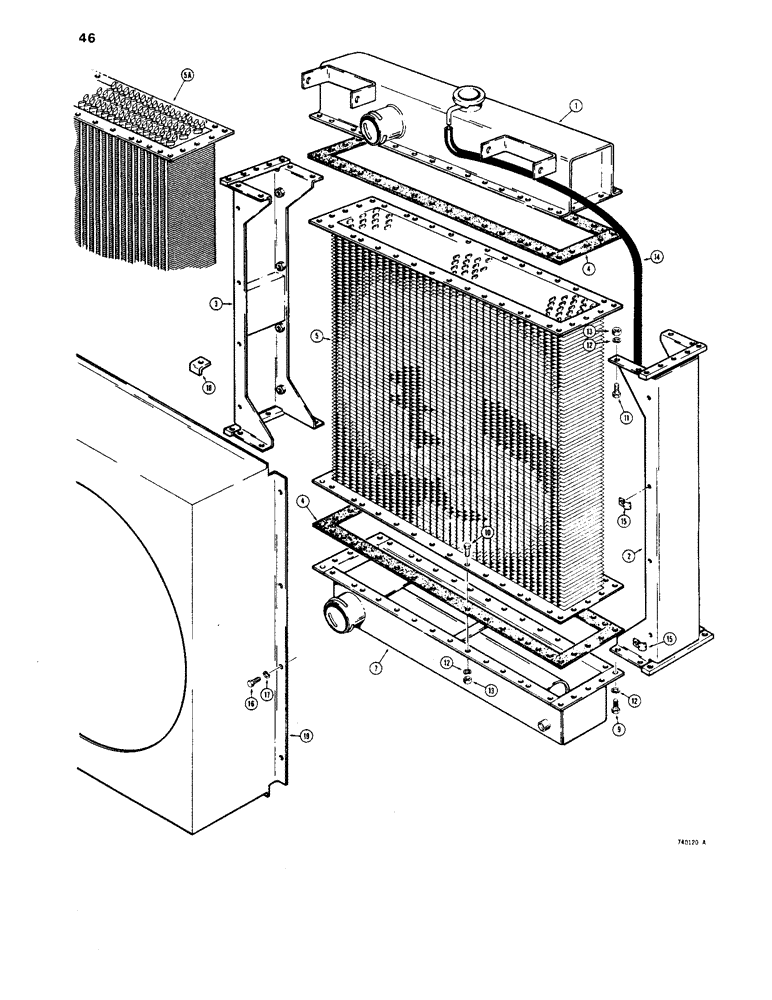

Запчасти Case 1450 (046) - PERFEX RADIATORS, PRODUCTION RADIATORS (02) - ENGINE

R29175

RADIATOR

- dozer model, standard, Perfex no. R-8452-B

1шт.

R29173

RADIATOR

- loader model, standard, Perfex no. R8452-A

1шт.

R38391

RADIATOR

- dozer model, anti-sandblast, Perfex no. R8452-D

1шт.

R38392

RADIATOR

- loader model, anti-sandblast, Perfex no. R8452-C

1шт.

R39900

RADIATOR

- standard, service replacement, Includes: Ref. 1 - 15

1шт.

R39901

RADIATOR

- anti-sandblast, service replacement, Includes: Ref. 1 - 15

1шт.

1

R30902

TANK - service replacement radiators

1шт.

2

R30904

LARGE PIN

SIDE ASSEMBLY - radiator, RH, service replacement

1шт.

3

R30904

LARGE PIN

SIDE ASSEMBLY - radiator, LH, service replacement

1шт.

4

N6649

STRIP-GASKET

- tank, service replacement radiators

4шт.

5

R30908

CORE

- standard radiator, service replacement

1шт.

5a

R38393

CORE - anti-sandblast radiator, service replacement

1шт.

6

R30909

WASHER - core, not shown, service replacement radiators

4шт.

7

R30903

TANK

- bottom, service replacement radiators

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Service replacement radiators Hex, 5/16"-18 x 3/4", G5, Full Thd

20шт.

10

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Service replacement radiators Hex, 5/16"-18 x 7/8", G5, Full Thd

40шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Service replacement radiators Hex, 5/16"-18 x 1", G5, Full Thd

16шт.

12

92-5

LOCK WASHER,5/16"

service replacement radiators 5/16"

76шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, service replacement radiators

56шт.

14

R30911

TUBE

- overflow, service replacement radiators

1шт.

15

L32695

CLIP

- tube, service replacement radiators

2шт.

16

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Service replacement radiators Hex, 1/4"-20 x 3/4", G5, Full Thd

8шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Service replacement radiators 1/4"

8шт.

18

R10971

CLIP

- shroud, service replacement radiators

4шт.

19

R30907

GUARD

SHROUD - dozer models, service replacement radiators

1шт.

19

R30906

GUARD

SHROUD - loader models, service replacement radiators

1шт.
