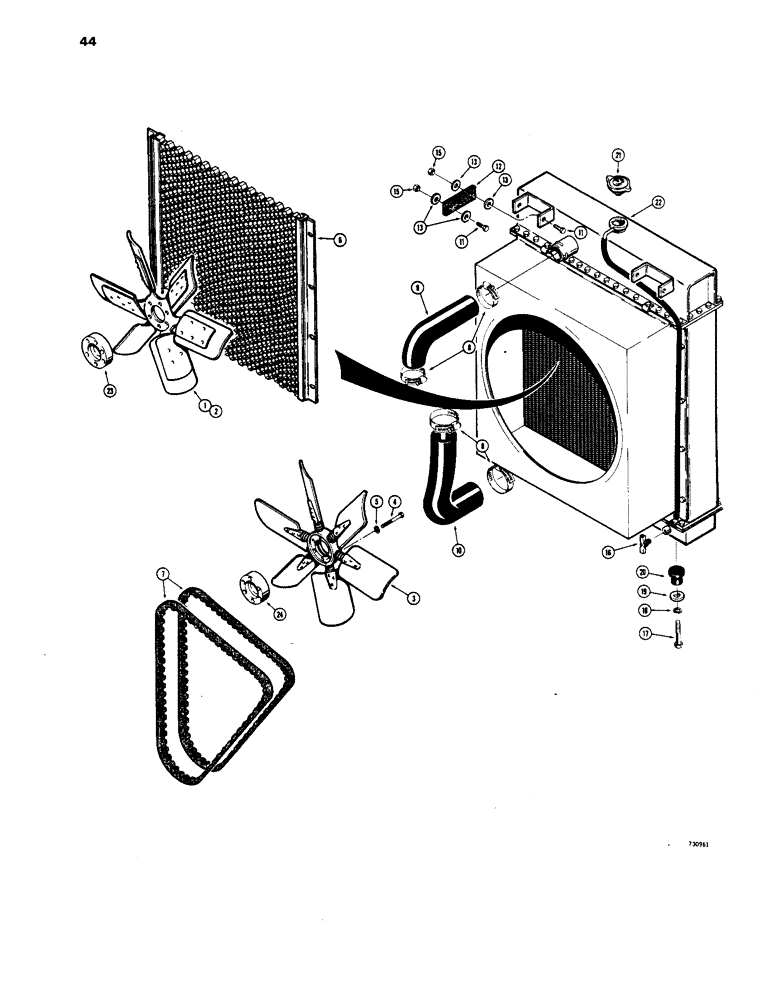

Запчасти Case 1450 (044) - RADIATOR, FANS AND HOSES (02) - ENGINE

1

R29176

FAN

- pusher, use with R29305 screen, anti-sand blast radiator

1шт.

2

R29167

FAN

- suction

1шт.

3

R29168

FAN

- reversible, use with R29305 screen

1шт.

4

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2", R29166 and R29167 fans

6шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

R29168 fan Hex, 3/8"-16 x 2", G5

6шт.

5

92-6

LOCK WASHER,3/8"

6шт.

6

R29305

FILTER SCREEN

SCREEN - anti-sand blast

1шт.

7

R28518

SET OF BELTS,0.69" W x 67.00" L

Fan and alternator, Matched set 0.69" W x 67.00" L

1шт.

8

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

4шт.

9

R28993

RADIATOR HOSE,2.50" ID x 16.50", SAE 20R4 Class SC

HOSE - upper, dozer models

1шт.

9

R28991

RADIATOR HOSE,2.50" ID, SAE 20R4

Loader Models 2.50" ID, SAE 20R4

1шт.

10

R28992

RADIATOR HOSE,2.62" ID, SAE 20R4

Lower, Dozer Models 2.62" ID, SAE 20R4

1шт.

10

R28990

RADIATOR HOSE,2.62" ID, SAE 100R4

Lower, Loader Models 2.62" ID, SAE 100R4

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

12

R31414

STRAP

- radiator mounting

2шт.

13

195-2037

WASHER,7/16" x 2" x .180"

- flat, 3/8"

8шт.

15

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self lock, 3/8" - 16 NC

4шт.

16

217-92

COCK

VALVE - drain

1шт.

17

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

D25022

WASHER

- special

2шт.

20

R29799

SHOCK ABSORBER

MOUNT - rubber, radiator

2шт.

21

D25826

CAP

- radiator, 7 PSI

1шт.

22

REF

INSTRUCTION

RADIATOR - cooling, see Figures 46 and 48

1шт.

23

R41827

BUSHING

SPACER - pusher or suction fan, dozer model

1шт.

24

NLS

NO LONGER SERVICED

SPACER - reversible fan, dozer model

1шт.
