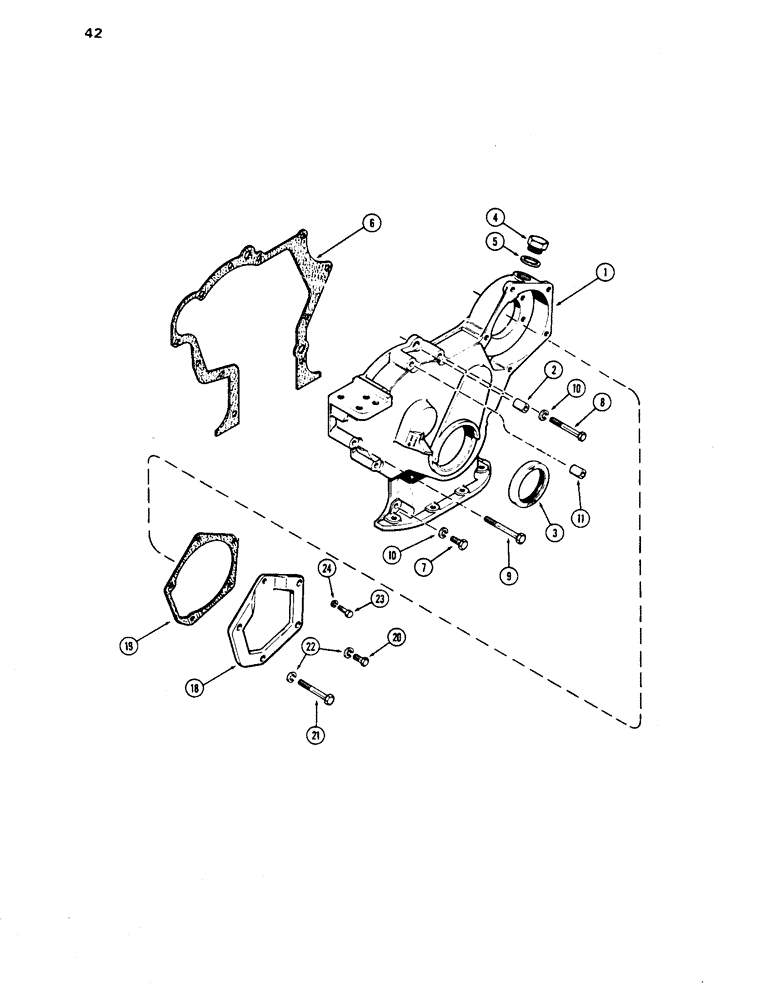

Запчасти Case 1450 (042) - TIMING GEAR COVER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A58609

COVER

ASSY. - timing gears, Includes: Ref. 2

1шт.

2

A58611

PIN

- cover locating (3/8 x 5/8 x 1")

2шт.

3

A62049

OIL SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2")

1шт.

4

A21140

PLUG

- timing hole

1шт.

5

A58613

SEALING WASHER

GASKET - timing hole plug

1шт.

6

A58612

GASKET

- timing, Serial Range: cover-block

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

2шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

1шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

A19774

BUSHING

SPACER - alternator pry point (3/8" pipe x 1")

1шт.

18

A61053

COVER

- inj. pump gears

1шт.

19

A58615

GASKET

- cover

1шт.

20

A150118

BOLT

- 3/8 x 1-1/4" N.C. hex. (head drilled for anti-tamper wire)

2шт.

21

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.
