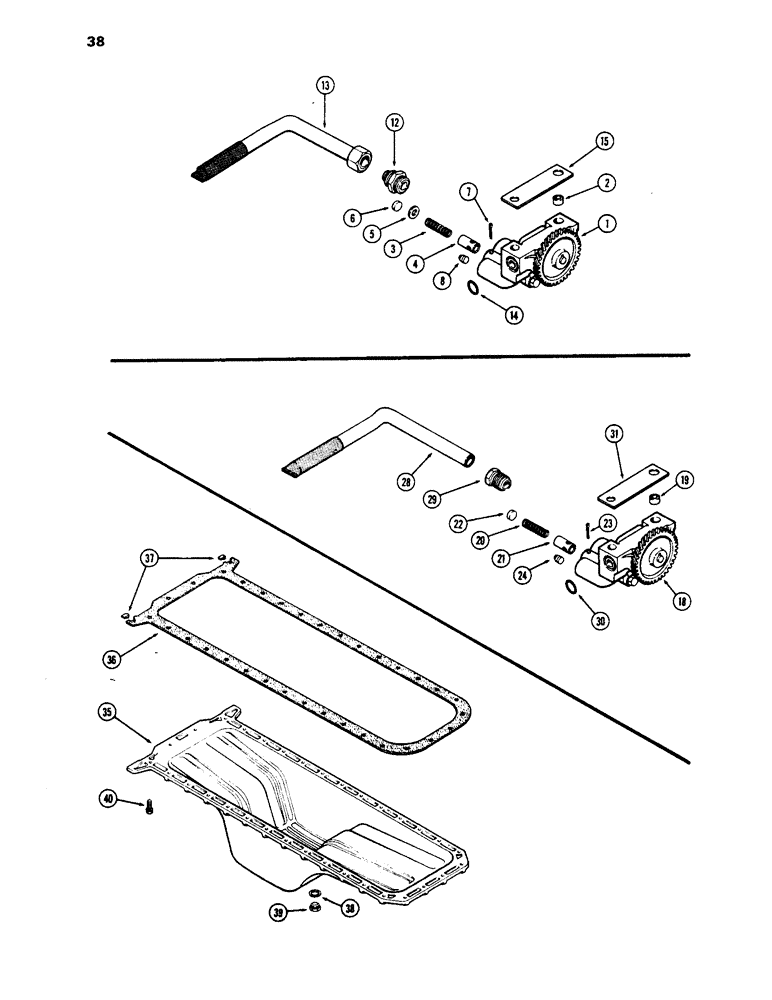

Запчасти Case 1450 (038) - OIL PUMP, 504BDT DIESEL ENGINE, 1ST USED ENG. SER. NO. 2585351 (02) - ENGINE

1

A153000

PUMP

ASSEMBLY - oil (Replaces A144773), Includes: Ref. 2 - 8

1шт.

2

A58915

SLEEVE

- pump locating (5/8 x 3/4 x 1/2")

1шт.

3

A59111

SPRING

- relief valve (2" free length)

1шт.

4

A65083

VALVE

- relief

1шт.

5

A57470

WASHER

- 3/8 x 11/16 x 16 ga.

1шт.

6

41-1041

PLUG

- relief valve (11/16" cup type)

1шт.

7

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

8

221-844

PLUG,Hex Soc, 1/2"-14

- (1/2" P.T. hex socket head)

1шт.

12

A142004

CONNECTOR, ELEC

CONNECTOR - oil suction tube

1шт.

13

A139713

TUBE

SCREEN - oil suction

1шт.

14

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block (15/16 x 1-1/8 x 3/32")

1шт.

15

A58859

SHIM,.005" Thk

Oil pump to brg. cap .005" Thk

1шт.

18

A65080

PUMP

ASSEMBLY - oil, used prior to eng s/n 2585351, Includes: Ref. 18 - 22

1шт.

19

A58915

SLEEVE

- pump locating (5/8 x 3/4 x 1/2"), used prior to eng s/n 2585351

1шт.

20

A59111

SPRING

- relief valve (2" free length), used prior to eng s/n 2585351

1шт.

21

A65083

VALVE

- relief, used prior to eng s/n 2585351

1шт.

22

41-1041

PLUG

- relief valve (11/16" cup type), used prior to eng s/n 2585351

1шт.

23

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), , Used prior to eng s/n 2585351 3/32" x 1 1/2"

1шт.

24

221-844

PLUG,Hex Soc, 1/2"-14

- used prior to eng s/n 2585351

1шт.

28

A62801

SCREEN

- oil suction, used prior to eng s/n 2585351

1шт.

29

222-510

TUBE NUT,1 1/4"-18

NUT - screen tube to pump, used prior to eng s/n 2585351

1шт.

30

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block, used prior to eng s/n 2585351

1шт.

31

A58859

SHIM,.005" Thk

Oil pump, used prior to eng S/N 2585351 .005" Thk

1шт.

35

A60502

PAN

- oil

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A43006) (See Figure 40)

1шт.

37

A62402

GASKET

- oil pan, corners

2шт.

38

A27968

RING

- drain plug (7/8 x 1-1/8 x 14 ga. copper) (Replaces A58933 nylon gasket), oil pan

1шт.

39

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

40

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT (3/8 x 1-1/4" NC hex, sems), oil pan

32шт.
