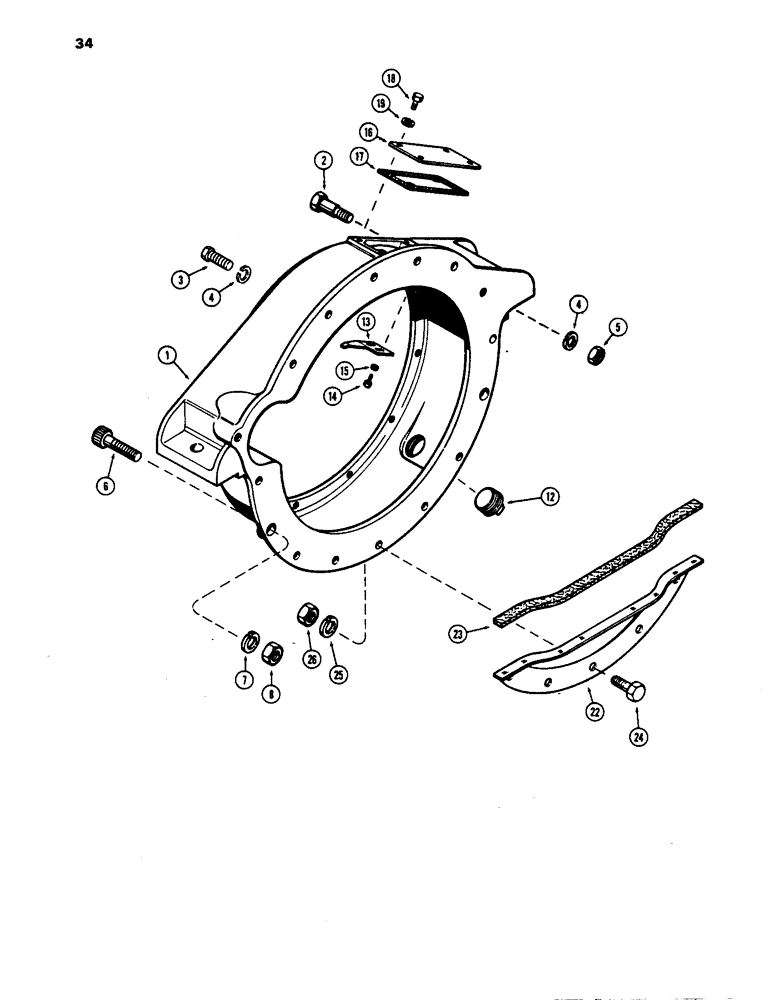

Запчасти Case 1450 (034) - FLYWHEEL HOUSING, 504BDT DIESEL ENGINE (02) - ENGINE

1

A21040

HOUSING

- flywheel

1шт.

2

A61040

STEP BOLT

BOLT - dowel (1/2 x 1-3/8" NC hex)

1шт.

2

A61041

STEP BOLT

BOLT - dowel (1/2 x 2-13/16" NC hex)

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- (1/2 x 2-1/2" NC hex)

3шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

4шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- (3/4 x 3" NC, 12 pt. hd.)

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

25-1012

NUT,3/4"-10, G5

2шт.

12

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - housing (1-1/4" P.T., sq. hd.)

1шт.

13

A22586

INDICATOR

POINTER - timing

1шт.

14

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

A22584

COVER

PLATE - hand hole cover

1шт.

17

A22585

GASKET

- cover plate

1шт.

18

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Plate Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

19

92-5

LOCK WASHER,5/16"

4шт.

22

A64462

GUARD

SHIELD - dust, flywheel housing

1шт.

23

A57144

GASKET

- dust shield

1шт.

24

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Shield Hex, 1/2"-13 x 1 3/8", G5, Full Thd

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.

26

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

4шт.
