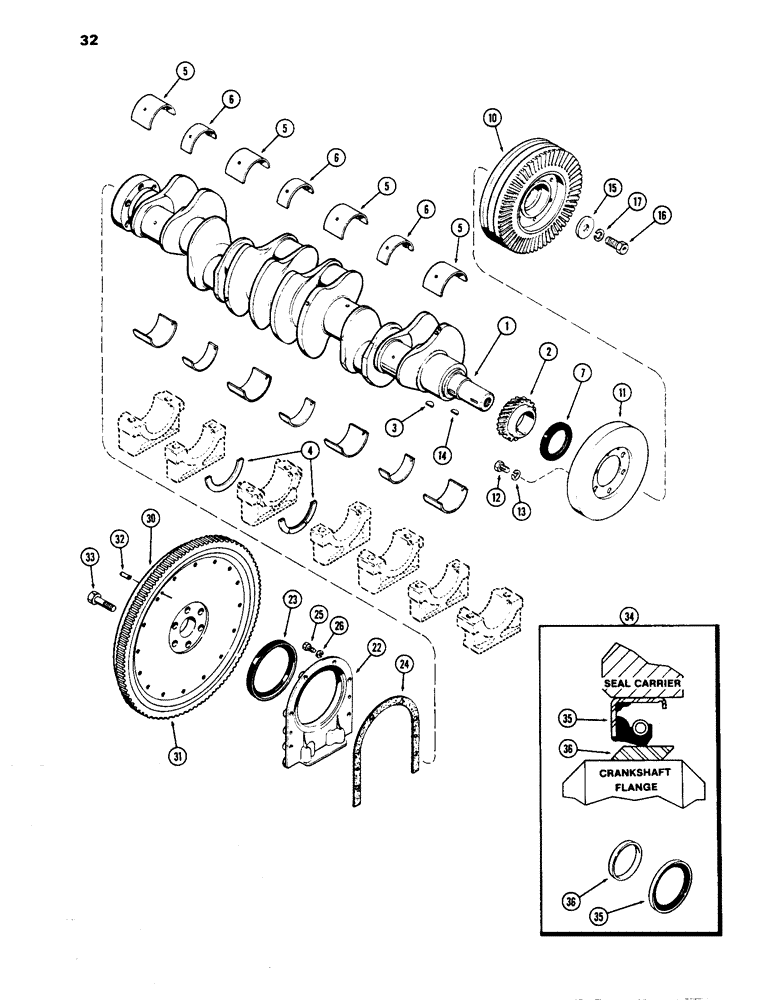

Запчасти Case 1450 (032) - CRANKSHAFT AND FLYWHEEL, 504BDT DIESEL ENGINE (02) - ENGINE

1

A77270

CRANKSHAFT

ASSY. - (Replaces A65097 & A66728), Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft, front

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust (Standard) (.156")

2шт.

4

A42447

WASHER

- thrust (Oversize) (.162")

2шт.

5

A43090

BEARING LINER

LINER SET - main brg., wide (Std.) (Set of 2)

4шт.

5

A43124

LINING

LINER SET - main brg., wide (-.002") (Set of 2)

4шт.

5

A43125

CRANKSHAFT BEARING

LINER SET - main brg., wide (-.010") (Set of 2)

4шт.

5

A43126

LINING

LINER SET - main brg., wide (-.020") (Set of 2)

4шт.

5

A43127

LINING

LINER SET - main brg., wide (-.030") (Set of 2)

4шт.

6

A43089

BEARING LINER

LINER SET - main brg., narrow (Std.) (Set of 2)

3шт.

6

A43120

LINING

LINER SET - main brg., narrow (-.002") (Set of 2)

3шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER SET - main brg., narrow (-.010") (Set of 2)

3шт.

6

A43122

LINING

LINER SET - main brg., narrow (-.020") (Set of 2)

3шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER SET - main brg., narrow (-.030") (Set of 2)

3шт.

7

A62049

OIL SEAL

- oil, front (2-5/8 x 3-5/8 x 1/2")

1шт.

10

A58828

PULLEY

- fan drive

1шт.

11

A58900

DAMPER

- pulley

1шт.

12

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Damper to pulley Hex, 3/8"-16 x 7/8", G5, Full Thd

6шт.

13

92-6

LOCK WASHER,3/8"

6шт.

14

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley (Replaced 136-129 ) #C, 5/16" x 1 1/8", HT

2шт.

15

A27903

WASHER

- drive pulley

1шт.

16

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley to crankshaft Hex, 5/8"-18 x 1 1/2", G5

1шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

A57457

RETAINER

- rear oil seal

1шт.

23

A62050

OIL SEAL

- oil, rear (4-3/4 x 5-3/4 x 1/2") (See Ref. 34)

1шт.

24

A32830

GASKET

- rear oil seal retainer

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

26

92-6

LOCK WASHER,3/8"

6шт.

30

A60508

FLYWHEEL

ASSY., Includes: Ref. 31 and 32

1шт.

31

A27920

GEAR

- ring

1шт.

32

A27840

PIN

- timing (5/16 x 3/4")

1шт.

33

A182040

SCREW

BOLT - flywheel to crankshaft (5/8 x 1-1/2" N.F. hex.) ( replaced 28-1024 )

6шт.

34

A43194

KIT

WEAR SEAL - oil, crankshaft, rear, Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (4-7/8" x 5-3/4 x 1/2"), A43194 weat kit

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear (4-3/4 x 4-7/8 x 9/16"), A43194 seal kit

1шт.
