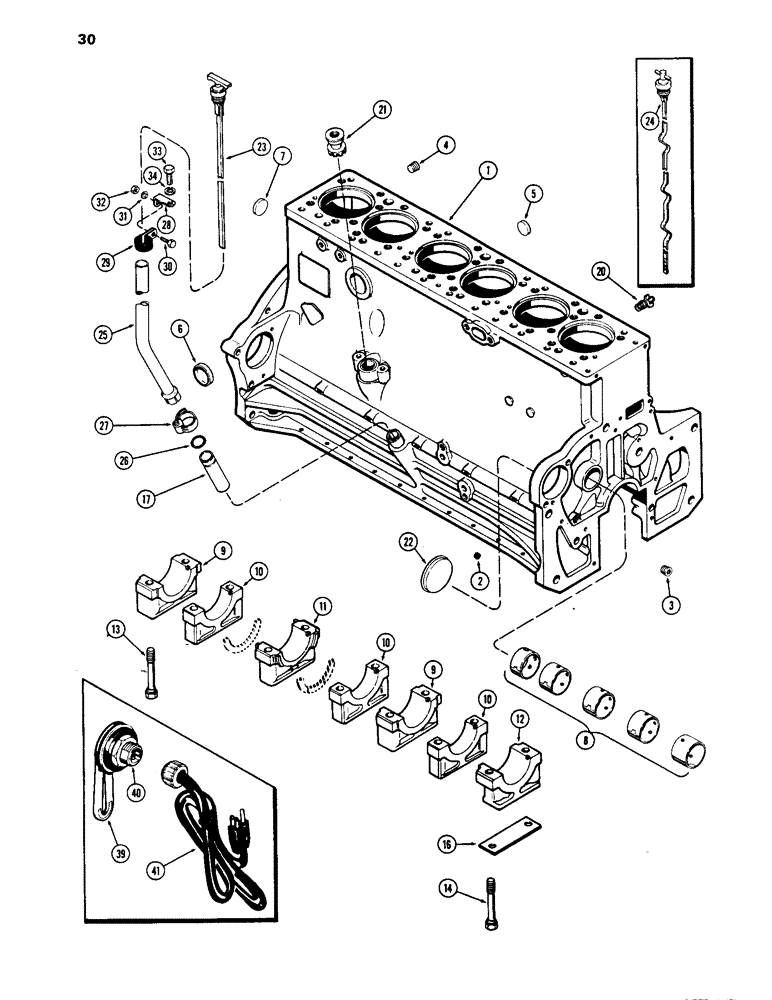

Запчасти Case 1450 (030) - CYLINDER BLOCK, 504BDT DIESEL ENGINE, USED PRIOR TO ENG. SER NO. 2556252 (02) - ENGINE

A43079

SKELETON ENGINE

BLOCK ASSY. - short (Incl. stripped block, piston assy., connecting rods & brgs., crankshaft & brgs., camshaft & timing gears) (Order 1-A44098 block and 30-A76638 bolts), Includes: Ref. 1 - 17

1шт.

1

A41765

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting No. A58515) (Order 1-A46000 block and 30-A76638 bolts), Includes: Ref. 2 - 17

1шт.

A151233

CRANKCASE

Engine Short Block, Tier 0

1шт.

AR151233

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

AC151233

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

2

221-41

PLUG

- oil gallery (1/8" P.T., sltd., headless)

6шт.

3

221-1843

PLUG

- oil gallery (3/8" P.T., hex. sckt. hd)

4шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

- (3/4" P.T., hex. sckt. hd.)

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery (1-3/8" cup type)

3шт.

6

A58569

PLUG,Cup, 2", Stainless

- heater hole (2" cup type)

1шт.

7

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

8

A23544

BUSHING

SET - camshaft

1шт.

9

A58562

CAP

- main bearing, wide

2шт.

10

A58563

CAP

- main bearing, narrow

3шт.

11

A58564

CAP

- main bearing, thrust

1шт.

12

A58561

CAP

- main bearing, front

1шт.

13

A58566

STEP BOLT

BOLT - brg. caps (5/8 x 4-9/16" N.C. hex.)

12шт.

14

A58567

STEP BOLT

BOLT - brg. cap, front (5/8 x 6-13/16" N.C. hex.)

2шт.

16

A58859

SHIM,.005" Thk

Oil pump to front brg. cap .005" Thk

1шт.

17

A34540

TUBE

SOCKET - oil filler & dipstick

1шт.

20

A23656

COCK, DRAIN

VALVE - water

1шт.

21

A34266

DRIVE

ASSY. - tachometer

1шт.

22

41-1052

PLUG,Cup, 3 1/4"

- auxiliary drive hole (3-1/4" cup type)

1шт.

23

A137323

DIPSTICK

- (Replaces A66758)

1шт.

24

A66756

DIPSTICK

- (Order A137323)

1шт.

25

A66757

TUBE

- extension, oil filler & dipstick

1шт.

26

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- extension (1-1/8 x 1-3/8 x 1/8")

1шт.

27

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - extension to socket (1-3/16" to 1-3/4")

1шт.

28

A66758

BRACKET

- extension, Serial Range: tube-manifold

1шт.

29

D39138

CLAMP

- extension, Serial Range: tube-bracket

1шт.

30

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Clamp to bracket Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to manifold Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

34

92-9

BEARING WASHER,9/16"

WASHER - 3/8" lock

1шт.

A44812

HEATER

ASSY. - (Replaces A42279), Includes: Ref. 39 - 42

1шт.

39

NSS

NOT SOLD SEPARAT

ELEMENT - heater, eng block

1шт.

40

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- element (1-3/4 x 2 x 1/8"), eng block heater

1шт.

42

A44813

CABLE EXTENSION

CORD ASSY. - (12" long) (Replaces A42297), eng block heater

1шт.
