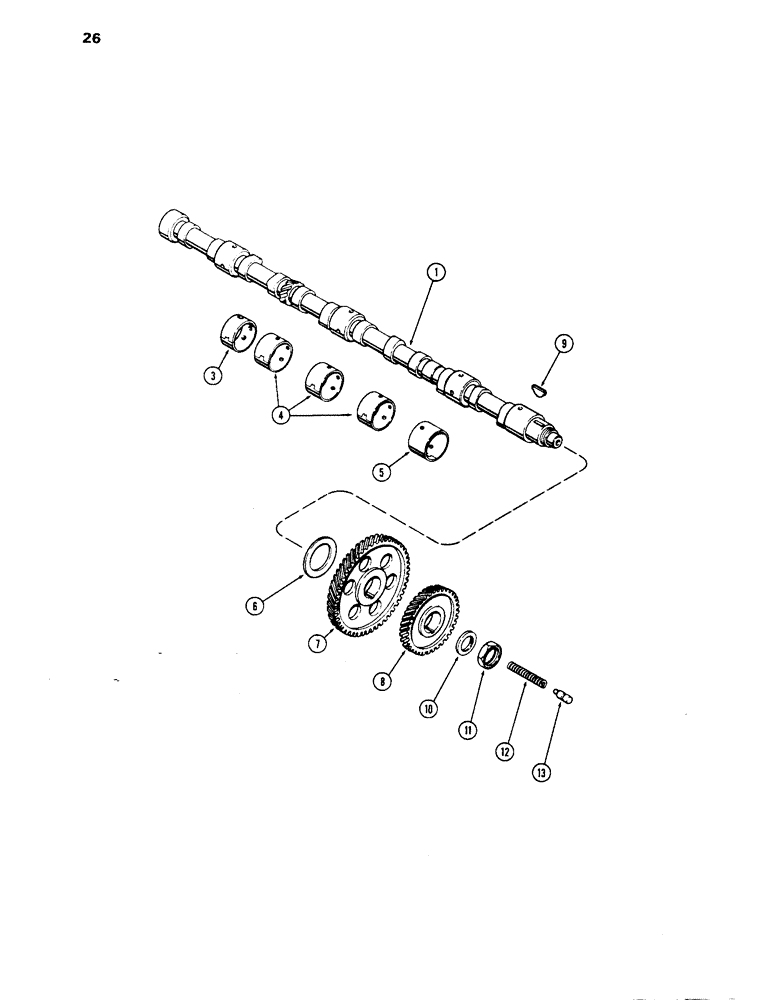

Запчасти Case 1450 (026) - CAMSHAFT, 504BDT DIESEL ENGINE (02) - ENGINE

1

A66743

CAMSHAFT

- (Replaces A62734)

1шт.

A23544

BUSHING

SET - camshaft, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear (1-5/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1-7/16" wide)

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front (1-5/8" wide)

1шт.

6

A21017

WASHER

- thrust (2-1/4 x 3-1/4 x 1/8")

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - (Hi-Pro)

1шт.

10

A31038

THRUST WASHER

- lock, camshaft nut (Replaces tab washer A58594)

1шт.

11

A58595

NUT

- camshaft gears retaining

1шт.

12

CASA27853

SPRING

- thrust plunger

1шт.

13

A27852

PLUNGER

- thrust

1шт.
