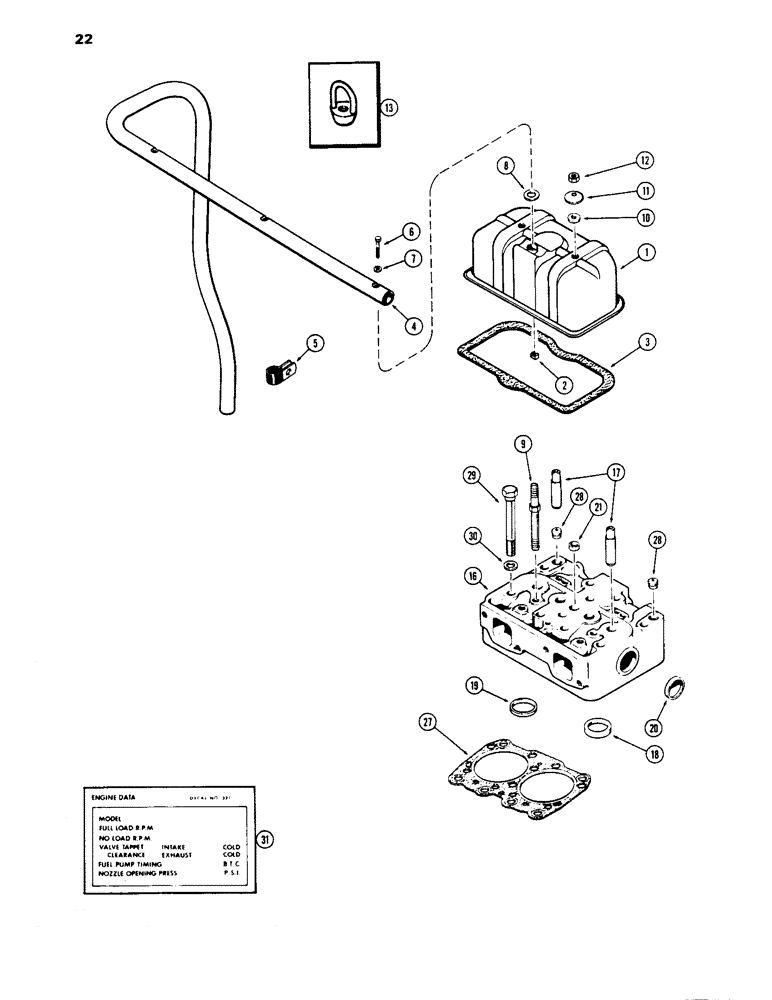

Запчасти Case 1450 (022) - CYLINDER HEAD AND COVER, 504BDT DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A58929
COVER
COVER ASSEMBLY - cylinder head, Includes: Ref. 2
3шт.
2
131-114
SPRING NUT,Rtnr, 1/4" - 20, 0.25" High
NUT - (1/4" NC Tinnerman)
1шт.
3
A65734
CYLINDER HEAD GASKET
GASKET - cylinder head cover
3шт.
4
A65433
TUBE
TUBE - breather
1шт.
5
D34033
CLAMP
CLAMP - breather tube
1шт.
7
A34133
GASKET
GASKET - tube, upper (fiber)
3шт.
8
A58635
GASKET,17.27mm ID x 32mm OD x 6.6mm Thk
GASKET - tube, lower
3шт.
9
A67121
STUD
STUD - cylinder head cover
6шт.
10
A23684
GASKET
GASKET - cover stud (rubber)
6шт.
11
A23683
WASHER
WASHER - cover studs (dished)
6шт.
12
25-107
NUT,7/16"-14, G5
NUT - cover studs, 7/16" NC hex
6шт.
13
A60567
EYE
EYE - engine lifting
2шт.
16
A66709
HEAD
HEAD ASSEMBLY - cylinder (Casting No. A60559) (Replaces A60558), Includes: Ref. 17 - 21
3шт.
16
AR66686
REMAN-CYLINDER HEAD
Remanufactured CYLINDER HEAD
3шт.
16
AC66686
CORE-CYLINDER HEAD
Return Number
3шт.
16
AR152265
REMAN-CYLINDER HEAD
Cylinder Head
3шт.
16
AC152265
CORE-CYLINDER HEAD
Return Number
3шт.
17
A41783
GUIDE
GUIDE - intake and exhaust valves
4шт.
18
A66192
INSERT
INSERT - exhaust valve seat
2шт.
19
A60557
INSERT
INSERT - intake valve seat
2шт.
20
A34124
PLUG,Cup, 1 5/8", Stainless
PLUG - 1-5/8" (41.27 mm) cup type
2шт.
21
A58620
PLUG,Cup, 3/4", Stainless
PLUG - 3/4" (19.1 mm) cup type
1шт.
27
REF
INSTRUCTION
GASKET - cylinder head (See Figure 40)
3шт.
28
221-843
PLUG,Hex Soc, 3/8"-18
PLUG - 3/8" PT, hex socket head
6шт.
29
A76638
BOLT
BOLT - 5/8 x 6-1/4" NC hex (Used engine SN 2556252 and after)
30шт.
29
A62732
STEP BOLT
BOLT - 5/8 x 5-5/8" NC hex (Used prior engine SN 2556252)
30шт.
30
A58629
BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk
WASHER - cylinder head bolts
30шт.
31
321-2321
DECAL
DECAL - engine data
1шт.
Выбрано товаров: 29
