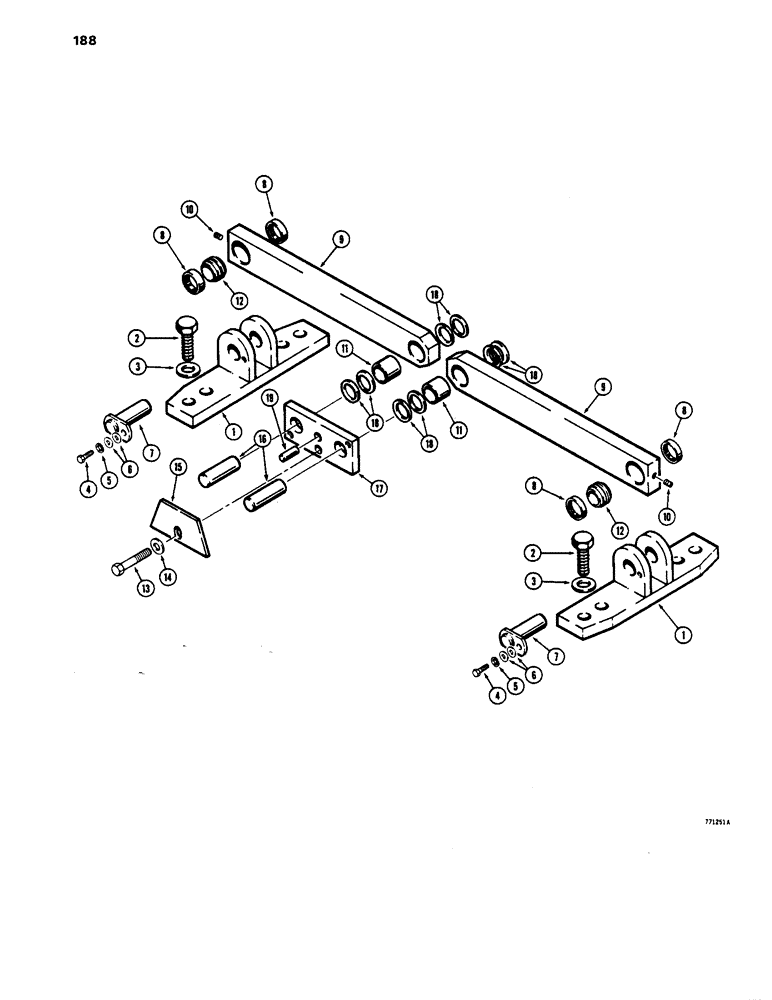

Запчасти Case 1450 (188) - SUSPENSION SYSTEM, GUIDE LEVERS (11) - TRACKS/STEERING

1

R38247

BRACKET

- guide lever

2шт.

2

26-1636

BOLT,Hex, 1" - 8 x 2-1/4", Gr 8

HHCS - 1" - 8 NC x 2-1/4", grade 8

8шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

8шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

7

R28204

PIN

- guide lever

2шт.

8

R27452

SEAL

- guide lever

4шт.

9

R28206

LEVER

- guide (replaced R29206), Includes: Ref. 10 - 12

2шт.

10

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

SCREW - set, socket head, 1/4" - 20 NC x 3/4"

1шт.

11

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- guide lever, frame end

1шт.

12

L12570

BUSHING

- guide lever, track frame end

1шт.

13

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

1шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

15

R28214

PLATE

- pin retaining

1шт.

16

R28212

PIN

- guide lever

2шт.

17

R28213

PLATE

- lever retaining

1шт.

18

R27181

WASHER

SEAL - washer, cone

8шт.

19

D38062

PIN

- dowel

1шт.
