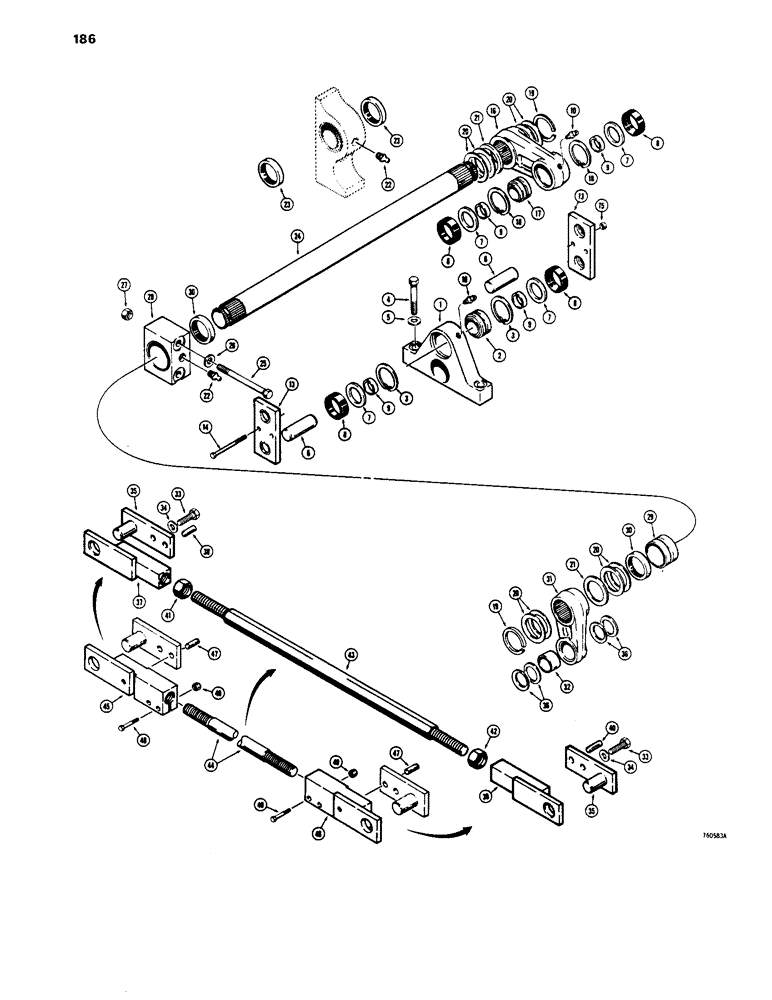

Запчасти Case 1450 (186) - SUSPENSION SYSTEM, EQUALIZER BAR AND TORSION BAR (11) - TRACKS/STEERING

R40847

BAR ASSY.

MOUNT ASSEMBLY - equalizer bar, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - mount

1шт.

2

D46942

BEARING,1.75" ID x 2.8125" OD x 1.526"

ASSEMBLY - self aligning

1шт.

3

F61018

SNAP RING,M73, Int

Ring, Snap, 2.812", Int, #281

2шт.

4

13-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

HHCS - 1" - 8 NC x 3-1/2"

4шт.

5

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

4шт.

6

R28019

PIN

- link retaining

4шт.

7

R32594

WASHER

- backup seal

8шт.

8

R32593

SEAL

- rubber, models without grease fittings

8шт.

8

R40568

SEAL

- rubber, models with grease fittings

8шт.

9

R32592

SPACER

- seal

8шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

4шт.

13

R32821

LINK

S - equalizer

4шт.

14

13-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

4шт.

15

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self lock, 1/2" - 13 NC

4шт.

16

R40566

LEVER

- equalizer, front, Includes: Ref. 17 and 18

2шт.

17

D46942

BEARING,1.75" ID x 2.8125" OD x 1.526"

ASSEMBLY - self aligning

1шт.

18

F61018

SNAP RING,M73, Int

Ring, Snap, 2.812", Int, #281

2шт.

19

R28016

RING

- retaining

4шт.

20

R32119

WASHER,71mm ID x 114mm OD x 1.6mm Thk

SHIM - .062" (1.5748 mm) thick

1шт.

21

R32118

SPACER

- torsion bar, order (2) R32119 shims for each washer

4шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease, 1/8" NPT

4шт.

23

R28013

SEAL

- torsion bar

4шт.

24

R28009

BAR

- torsion

2шт.

25

15-12104

BOLT

HHCS - 3/4" - 10 NC x 6-1/2"

4шт.

26

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

4шт.

27

25-1012

NUT,3/4"-10, G5

4шт.

R28010

BRACKET

ASSEMBLY - torsion bar, Includes: Ref. 28 and 29

2шт.

28

NSS

NOT SOLD SEPARAT

BRACKET - torsion bar

1шт.

29

R28012

BUSHING

- bracket

1шт.

30

R28013

SEAL

- torsion bar

4шт.

31

R28026

LEVER

- equalizer, Includes: Ref. 32

2шт.

32

R28550

BUSHING

- lever

1шт.

33

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

34

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

2шт.

35

R28029

PIN

ASSEMBLY - equalizer

2шт.

36

R28028

WASHER

SEAL - washer, cone

8шт.

37

R28063

PLATE

- retaining, used with R28035 rod, LH, Includes: Ref. 38

1шт.

38

D38062

PIN

- dowel

1шт.

39

R28064

PLATE

- retaining, used with R28035 rod, RH, Includes: Ref. 40

1шт.

40

D38062

PIN

- dowel

1шт.

41

129-378

NUT,Jam, 1 1/2"-12, G5, LH

- hex, lock, 1-1/2" - 12 NF, LH thread

1шт.

42

25-1524

JAM NUT,Jam, 1 1/2"-12, G5

- hex, lock, 1-1/2" - 12 NF, RH thread

1шт.

43

R28035

ROD

- equalizer, use R37085

1шт.

R37085

ROD

ASSEMBLY, Includes: Ref. 44 - 49

1шт.

44

R37060

ROD

- equalizer

1шт.

45

R37054

PLATE

- retaining, LH

1шт.

46

R37055

PLATE

- retaining, RH, Includes: Ref. 47

1шт.

47

D38062

PIN

- R37054 and R37055 plates

1шт.

48

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

HHCS - 5/8" - 11 NC x 3-1/2"

4шт.

49

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self lock, 5/8" - 11 NC

4шт.
