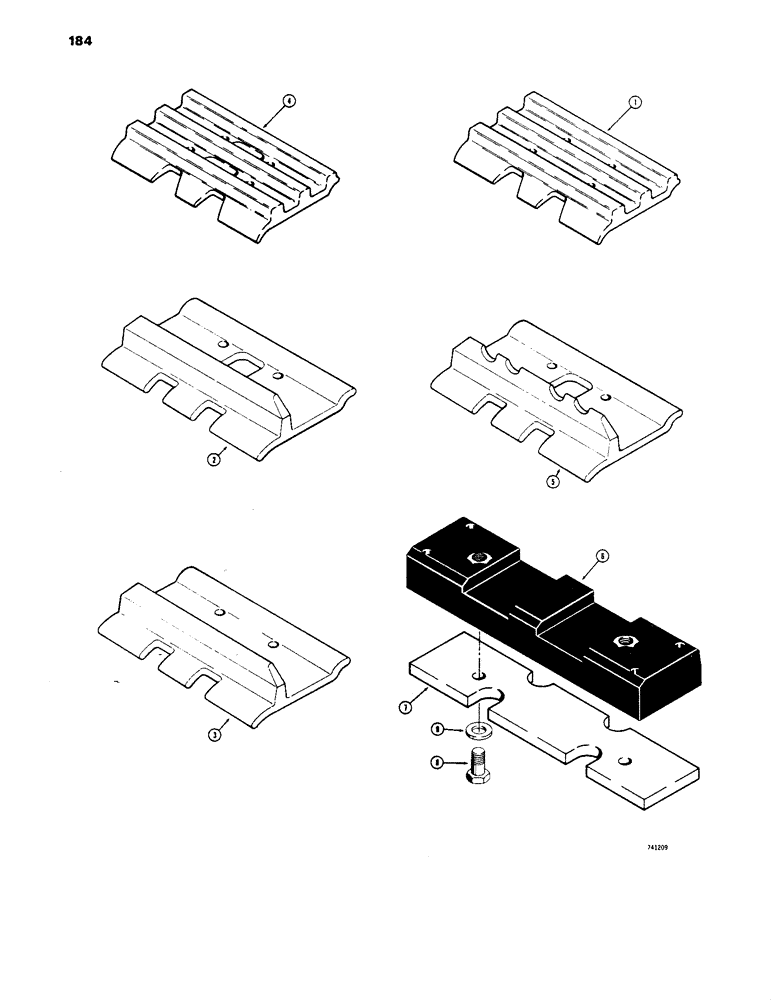

Запчасти Case 1450 (184) - TRACK SHOES, SEMI-GROUSER, CLOSED, LOADER MODELS ONLY (11) - TRACKS/STEERING

1

R29206

SHOE (ASSY)

SHOE - track, 15" (381.0 mm)

72шт.

1

R29207

TRACK SHOE

SHOE - track, 16" (406.4 mm)

72шт.

2

R29200

PLATE

SHOE - track, 16" (406.4 mm), grouser open center, dozer models only

72шт.

2

R29201

TRACK SHOE

SHOE - track, 18" (457.2 mm), grouser open center, dozer models only

72шт.

2

R29202

TRACK SHOE

SHOE - track, 20" (508.0 mm), grouser open center, dozer models only

72шт.

2

R29203

TRACK SHOE

SHOE - track, 22" (558.8 mm), grouser open center, dozer models only

72шт.

2

R29204

TRACK SHOE

SHOE - track, 24" (609.6 mm), grouser open center, dozer models only

72шт.

2

R29205

SHOE - track, 26" (660.4 mm), grouser open center, dozer models only

72шт.

3

R29194

TRACK SHOE

SHOE - track, 16" (406.4 mm), grouser-closed, dozer models only

72шт.

3

R29195

TRACK SHOE

SHOE - track, 18" (457.2 mm), standard, grouser-closed, dozer models only

72шт.

3

R36937

TRACK SHOE

SHOE - track, 18" (457.2 mm), heavy duty, grouser-closed, dozer models only

72шт.

3

R29196

TRACK SHOE

SHOE - track, 20" (508.0 mm), standard, grouser-closed, dozer models only

72шт.

3

R36938

TRACK SHOE

SHOE - track, 20" (508.0 mm), heavy duty, grouser-closed, dozer models only

72шт.

3

R29197

SHOE

- track, 22" (558.8 mm), grouser-closed, dozer models only

72шт.

3

R29198

TRACK SHOE

SHOE - track, 24" (609.6 mm), grouser-closed, dozer models only

72шт.

3

R29199

SHOE - track, 26" (660.4 mm), discontinued, grouser-closed, dozer models only

72шт.

4

R29208

TRACK SHOE

SHOE - track, 15" (381.0 mm), semi-grouser, open center, loader models only

72шт.

4

R29209

TRACK SHOE

SHOE - track, 16" (406.4 mm), semi-grouser, open center, loader models only

72шт.

5

R29226

TRACK SHOE

SHOE - track, 16" (406.4 mm), grouser-ice, dozer models only

72шт.

R5628

KIT - rubber track shoes, machinery item, see Figure 2 for ordering

1шт.

6

R38862

SHOE

- rubber, track

72шт.

7

R33307

SPACER - shoe, rubber track

72шт.

8

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Rubber track shoe Hex, 5/8"-11 x 1 3/4", G5, Full Thd

144шт.

9

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, rubber track shoe

144шт.

R40964

TRACK SHOE

SHOE - track, teo bar grouser, rubber

1шт.
