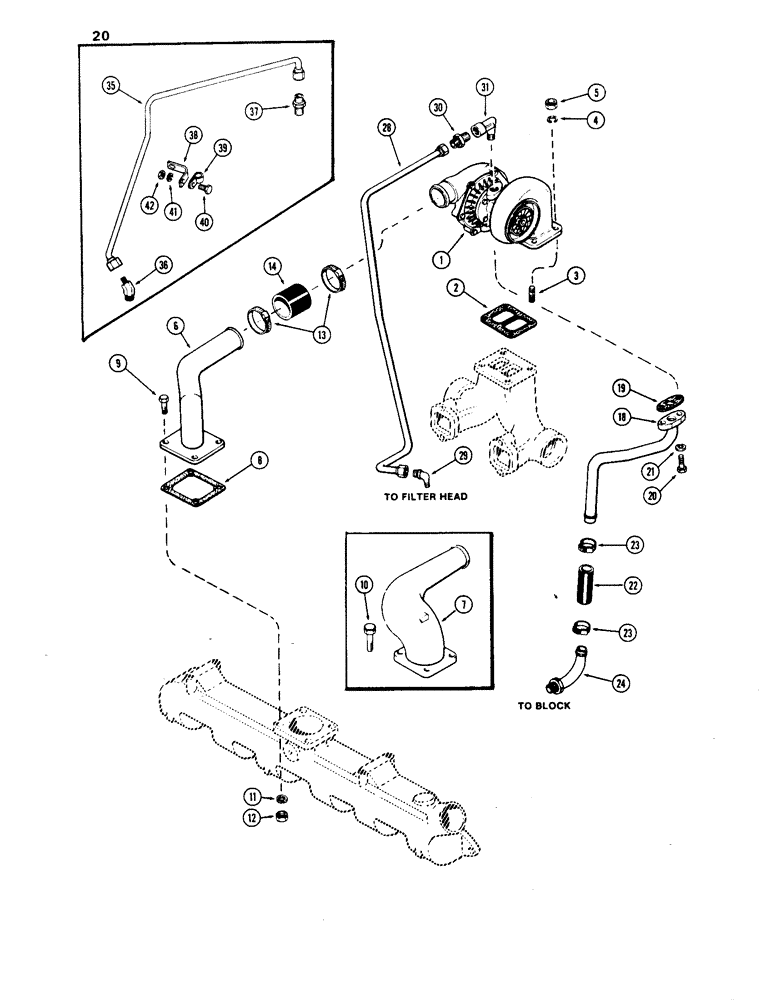

Запчасти Case 1450 (020) - TURBO-CHARGER SYSTEM, 504BDT DIESEL ENGINE (02) - ENGINE

1

A44051

CORE-TURBOCHARGER

TURBO-CHARGER ASSY - (Do not use this part no. for ordering. This part no. is to be used in requesting return authority on used turbo-chargers to be returned for credit.)

1шт.

1a

A44052

TURBOCHARGER

ASSY - (Rebuilt)

1шт.

1a

A48190

REMAN-TURBOCHARGER

Remanufactured, TURBOCHARGER

1шт.

1a

A48189

CORE-TURBOCHARGER

Return Number

1шт.

2

A58899

GASKET,0.45mm Thk

GASKET -, Serial Range: turbo-charger-manifold

1шт.

3

G102128

BOLT

STUD - (3/8" NC x 1-7/16") (Replaces A11204)

4шт.

4

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" NC hex, Seezpruf

4шт.

6

A150450

ELBOW

ELBOW - air intake (formed tube) (Replaces A77242) (1st used engine serial no. 2579516)

1шт.

7

A58903

ELBOW UNION

Union Elbow ELBOW - air intake (cast iron) (Order A150450) (Used prior to engine serial no. 2579516)

1шт.

8

A58910

GASKET

GASKET -, Serial Range: elbow-manifold

1шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8 x 1-1/2" NC hex) (Used with A150450 elbow)

4шт.

10

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, (Used with A58903 elbow) Hex, 3/8"-16 x 1 3/4", G5

4шт.

11

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

12

25-106

NUT,3/8"-16, G5

WASHER - 3/8" NC hex

4шт.

13

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

14

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

Elbow (Replaces A58894)

1шт.

18

A62518

TUBE

TUBE - oil drain

1шт.

19

A58892

GASKET,1.59mm Thk

GASKET - drain tube

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

22

A58893

HOSE

HOSE - drain tube (7/8" ID x 3-1/2")

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16 to 1-3/4")

2шт.

24

A58897

FITTING

CLAMP - drain (to block)

1шт.

28

A66037

TUBE

TUBE ASSY - oil supply 1st used eng s/n 10095016

1шт.

29

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

ELBOW - 90deg. (in filter head)(3/8" PT), oil supply tubes 1st used eng s/n 10095016

1шт.

30

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - (tube to elbow), oil supply 1st used eng s/n 10095016

1шт.

31

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

ELBOW ASSY - 90deg. (in turbo-charge) (1/4" PT), oil supply tubes 1st used eng s/n 10095016

1шт.

35

A62479

TUBE

TUBE ASSY - oil supply, used prior to engine s/n 10095016

1шт.

36

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

ELBOW - 90deg. (in filter head) (3/8" PT), used prior to engine s/n 10095016

1шт.

37

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - (In turbo-charger) (1/4" PT), used prior to engine s/n 10095016

1шт.

38

A75301

BRACKET

BRACKET - used prior to engine s/n 10095016

1шт.

39

49845

CLAMP

CLIP - used prior to engine s/n 10095016

1шт.

40

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, , Clip to bracket, used prior to engine S/N 10095016 Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

41

92-6

LOCK WASHER,3/8"

LOCK WASHER, , used prior to engine s/n 10095016 3/8"

1шт.

42

25-106

NUT,3/8"-16, G5

NUT - 3/8" NC hex, used prior to engine s/n 10095016

1шт.
