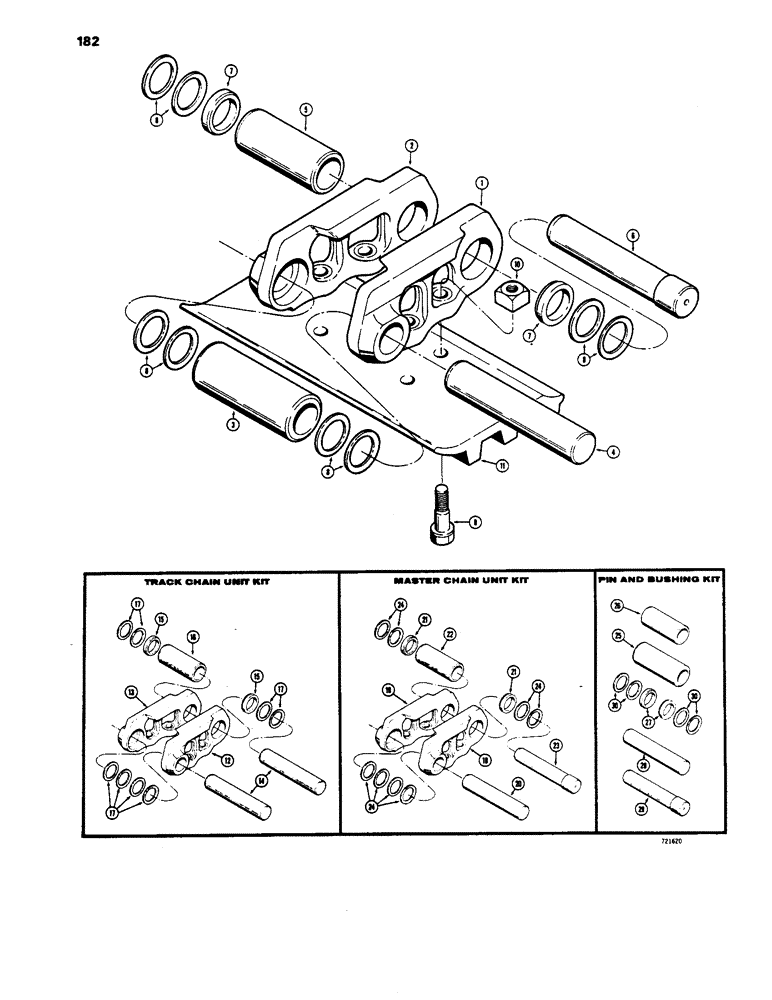

Запчасти Case 1450 (182) - TRACK CHAIN (11) - TRACKS/STEERING

R29244

CHAIN (AG)

CHAIN ASSEMBLY - 36 unit, Includes: Ref. 1 - 8

2шт.

1

R29242

LINK

- track, RH replaced R29241 )

36шт.

2

R29241

LINK

- track, LH ( replaced R29242 )

36шт.

3

R29193

BUSHING

- standard, long

35шт.

4

R29190

PIN

- track, standard

35шт.

4

R29191

PIN

- track, .003" (.0762 mm) oversize, service option

35шт.

5

R29192

BUSHING

- track, master

1шт.

6

R29243

PIN

- track, master

1шт.

6

R31689

PIN

- track, master, .003" (.0672 mm), service option

1шт.

7

R29185

BUSHING

SPACER - master, short

2шт.

8

R29184

SEAL

- washer, cone

144шт.

9

R29245

BOLT

- special

288шт.

10

R29246

NUT

- special

288шт.

11

REF

INSTRUCTION

SHOE - track plate, see Figure 184 for options

72шт.

R31686

DRAG LINK

KIT - track chain unit, Includes: Ref. 12 - 17

72шт.

12

R29241

LINK

- LH, track chain unit kit

1шт.

13

R29242

LINK

- RH, track chain unit kit

1шт.

14

R29190

PIN

- track, standard, track chain unit kit

2шт.

15

R29185

BUSHING

SPACER - track chain unit kit

2шт.

16

R29192

BUSHING

- master, short, track chain unit kit

1шт.

17

R29184

SEAL

- washer, cone, track chain unit kit

8шт.

R31688

LINK

KIT - master chain unit kit, Includes: Ref. 18 - 24

2шт.

18

R29241

LINK

- LH, master chain unit kit

1шт.

19

R29242

LINK

- track, RH, master chain unit kit

1шт.

20

R29190

PIN

- track, standard, master chain unit kit

1шт.

21

R29185

BUSHING

SPACER - master chain unit kit

2шт.

22

R29192

BUSHING

- short, master chain unit kit

1шт.

23

R29243

PIN

- track, master chain unit kit

1шт.

24

R29184

SEAL

- washer, cone, master chain unit kit

8шт.

R31687

PIN

KIT - bushing, Includes: Ref. 25 - 30

1шт.

25

R29193

BUSHING

- standard, long, pin and bushing kit

70шт.

26

R29192

BUSHING

- master, short, pin and bushing kit

2шт.

27

R29185

BUSHING

SPACER - pin and bushing kit

4шт.

28

R29191

PIN

- track, .003" (0.0762 mm) oversize, pin and bushing kit

70шт.

29

R31689

PIN

- track, master, .003" (0.0762 mm) oversize, pin and bushing kit

2шт.

30

R29184

SEAL

- washer, cone, pin and bushing kit

288шт.
