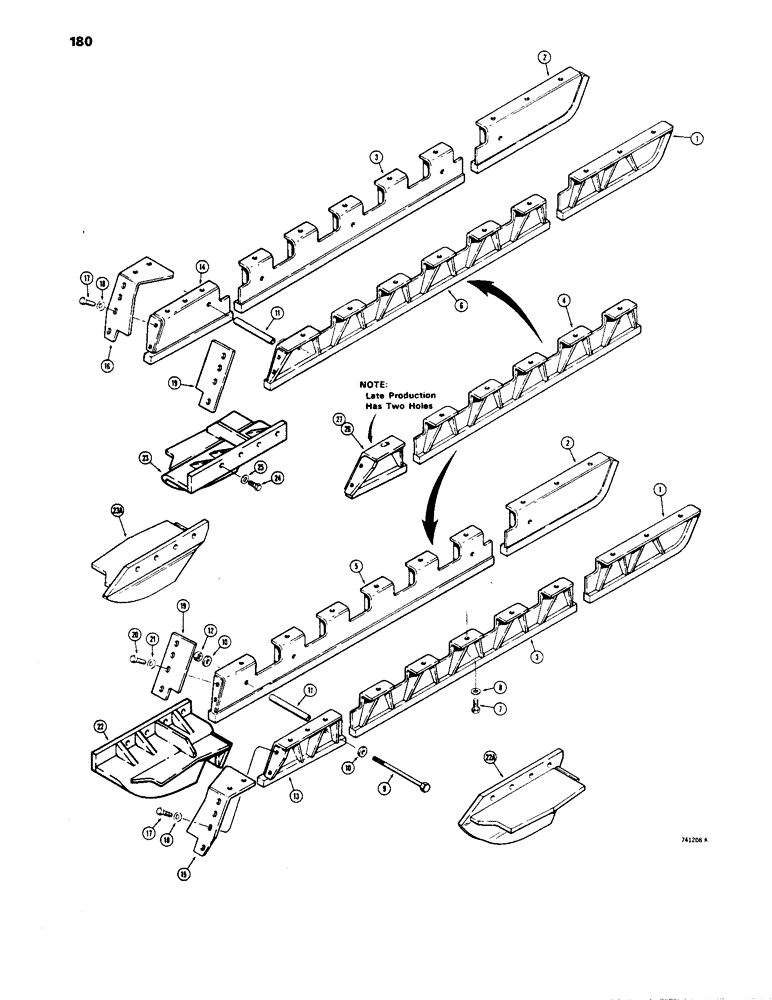

Запчасти Case 1450 (180) - TRACK GUIDE (ROCK GUARDS) (11) - TRACKS/STEERING

1

R29000

GUARD

- rock, RH front

2шт.

2

R28999

GUARD

- rock, LH front

2шт.

3

R29001

GUARD

- rock, RH and LH center, outer

2шт.

4

R29001

GUARD

- rock, RH and LH center, inner, tractor s/n 8379095 and after

2шт.

5

R29016

GUARD

- rock, LH center, inner, before tractor s/n 8379095

1шт.

6

R29017

GUARD

- rock, LH center, inner, before tractor s/n 8379095

1шт.

7

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

40шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special (replaced T53567)

40шт.

9

15-12192

BOLT

HHCS - 3/4" - 10 NC x 12"

10шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special (replaced D43266)

20шт.

11

R28978

SPACER

- guards

10шт.

12

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self lock, 3/4" - 10 NC

10шт.

13

R29004

GUARD

- rock, RH rear, outer

1шт.

14

R29003

GUARD ASSY.

GUARD - rock, LH rear, outer

1шт.

15

R29248

BUSHING, LARGE

COVER - guard, RH outer, dozer model

1шт.

15

R28857

COVER - guard, RH outer, loader model

1шт.

16

R29247

COVER - guard, LH outer, dozer model

1шт.

16

R28856

COVER ASSY

COVER - guard, LH outer, loader model

1шт.

17

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

12шт.

18

T43567

WASHER - hardened

12шт.

19

R29124

COVER

- guard, inner

2шт.

20

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Used before tractor S/N 8379036 Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

21

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, used before trac s/n 8379036

8шт.

22

R29250

GUARD ASSY.

GUARD - RH rock, drive sprocket, dozer model, used before trac s/n 8379036

1шт.

Service R29250 or R31563 guards with R36007 guard, R29124 cover, R28978 spacer, 15-12192 nut, (2) 13-1224 bolts (4) D34666 washers, (4) T53567 washers and (4) 13-1020 bolts.

1шт.

22a

R31563

GUARD ASSY.

GUARD - RH rock, drive sprocket, loader model, used before trac s/n 8379036

1шт.

Service R29250 or R31563 guards with R36007 guard, R29124 cover, R28978 spacer, 15-12192 nut, (2) 13-1224 bolts (4) D34666 washers, (4) T53567 washers and (4) 13-1020 bolts.

1шт.

23

R29249

GUARD ASSY.

GUARD - LH rock, drive sprocket, dozer model, used before trac s/n 8379036

1шт.

Service R29249 or R31562 guards with R36006 guard, R29124 cover, R28978 spacer, 15-12192 bolt, 25-1012 nut, (2) 13-1224 bolts, (4) D34666 washers, (4) T53567 washers and (4) 13-1020 bolts.

1шт.

23a

R31562

GUARD ASSY.

GUARD - LH rock, drive sprocket, loader model, used before trac s/n 8379036

1шт.

Service R29249 or R31562 guards with R36006 guard, R29124 cover, R28978 spacer, 15-12192 bolt, 25-1012 nut, (2) 13-1224 bolts, (4) D34666 washers, (4) T53567 washers and (4) 13-1020 bolts.

1шт.

24

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Used before tractor S/N 8379036 Hex, 5/8"-11 x 2", G5

8шт.

25

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special, used before trac s/n 8379036

8шт.

26

R36007

GUARD

- RH rock, drive sprocket, used trac s/n 8379036 & aft

1шт.

27

R36006

GUARD ASSY.

GUARD - LH rock, drive sprocket, used trac s/n 8379036 & aft

1шт.
