Case
/
Строительно-дорожная техника
/
Бульдозеры гусеничные
/
1000
/
(1450) - CASE CRAWLER TRACTOR (1/73-12/80)
/
(11) - TRACKS/STEERING
/

(178) - R33583 TRACK ROLLER - SINGLE FLANGE, FOR ID: SEE REF 2 OF ILLUSTRATION, INTERTRAC ROLLER

Запчасти Case 1450 (178) - R33583 TRACK ROLLER - SINGLE FLANGE, FOR ID: SEE REF 2 OF ILLUSTRATION, INTERTRAC ROLLER (11) - TRACKS/STEERING

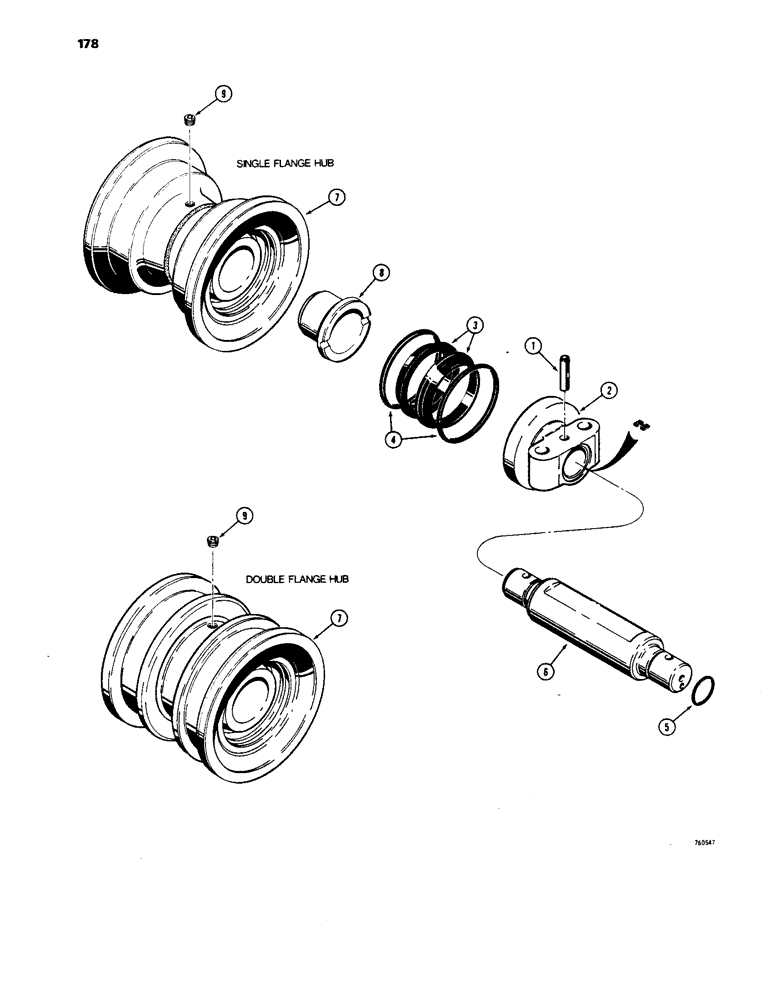

Схема запчастей Case 1450 - (178) - R33583 TRACK ROLLER - SINGLE FLANGE, FOR ID: SEE REF 2 OF ILLUSTRATION, INTERTRAC ROLLER (11) - TRACKS/STEERING

№

Артикул

Название

Примечание

Количество

R33583

ROLLER

- track, Includes: Ref. 1 - 9

6шт.

1

R33593

PIN

- cap retaining

2шт.

2

R33590

CAP

- end collar

2шт.

S209139

SEAL

- face, Includes: Ref. 3 and 4

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

4

NSS

NOT SOLD SEPARAT

RING - sealing

2шт.

5

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

2шт.

6

R33591

SHAFT

- roller

1шт.

R33587

ROLLER

HUB ASSEMBLY - roller, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

HUB - roller

1шт.

8

R33589

BUSHING

2шт.

9

R33557

PLUG

1шт.

R33584

ROLLER

- track, double flange for id: see ref 2 of illustration, intertrac, Includes: Ref. 1 - 9

6шт.

1

R33593

PIN

- cap retaining, R33584 track roller - double flange for id: see ref 2 of illustration, intertrac

2шт.

2

R33590

CAP

- end collar, R33584 track roller - double flange for id: see ref 2 of illustration, intertrac

2шт.

S209139

SEAL

- face, R33584 track roller - double flange for id: see ref 2 of illustration, intertrac, Includes: Ref. 3 and 4

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL - rubber, R33584 track roller - double flange for id: see ref 2 of illustration, intertrac

2шт.

4

NSS

NOT SOLD SEPARAT

RING - sealing, R33584 track roller - double flange for id: see ref 2 of illustration, intertrac

2шт.

5

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- R33584 track roller - double flange for id: see ref 2 of illustration, intertrac

2шт.

6

R33591

SHAFT

- roller, R33584 track roller - double flange for id: see ref 2 of illustration, intertrac

1шт.

R33588

ROLLER

HUB ASSEMBLY , R33584 track - double flange for id: see ref 2 of illustration, intertrac, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

HUB - roller, R33584 track roller - double flange for id: see ref 2 of illustration, intertrac

1шт.

8

R33589

BUSHING

- R33584 track roller - double flange for id: see ref 2 of illustration, intertrac

2шт.

9

R33557

PLUG

- R33584 track roller - double flange for id: see ref 2 of illustration, intertrac

1шт.

Выбрано товаров: 24
