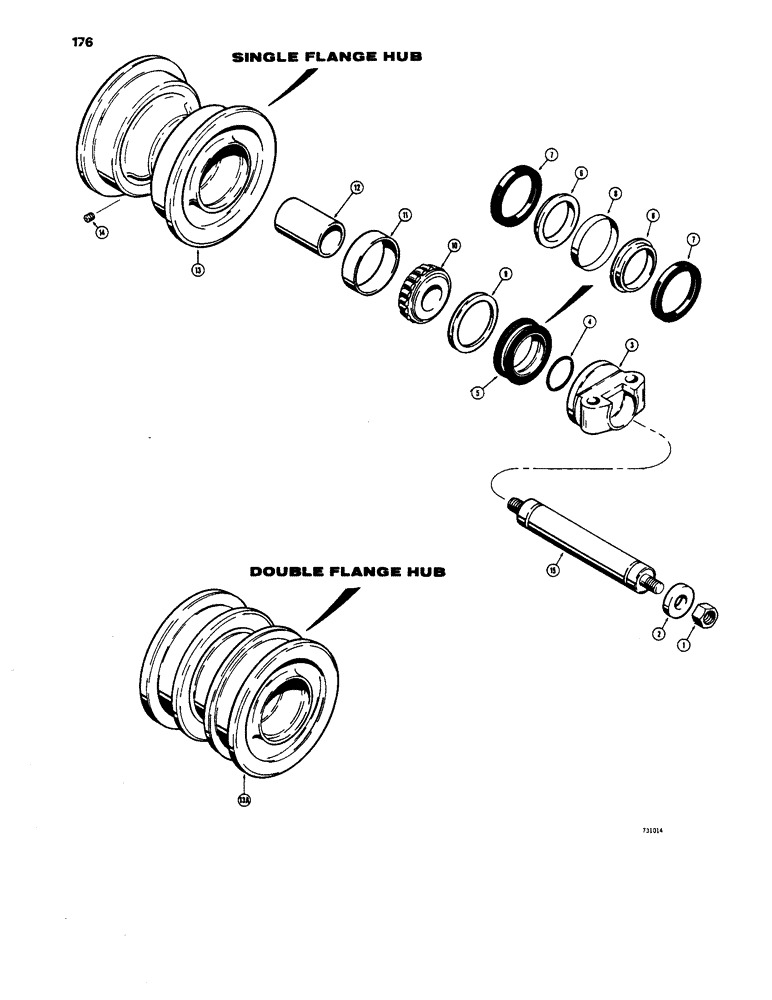

Запчасти Case 1450 (176) - R27948 TRACK ROLLER - SINGLE FLANGE, FOR IDENTIFICATION SEE REF 3 OF ILLUSTRATION (11) - TRACKS/STEERING

R27948

ROLLER

ASSEMBLY - track, single flange, Includes: Ref. 1 - 15

6шт.

1

280375

NUT,3/4"-10, GC

NUT - hex, self lock, 3/4" - 10 NC

2шт.

2

R29429

WASHER

- special

2шт.

3

R27951

CYLINDER END CAP

BLOCK AND RETAINER - seal

2шт.

4

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

2шт.

5

R39273

SEAL

- face (Replaces R29273), Includes: Ref. 6 - 8

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

KIT - repair

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

9

R34742

SEAL

SPACER - seal

2шт.

10

A75219

ROLLER BEARING,1.9685" ID x 1.4173"

CONE - bearing

2шт.

11

A75218

BEARING CUP,4.1339" OD x 1.1417"

CUP - bearing

2шт.

12

R27955

SPACER

- bearing

1шт.

13

R27949

ROLLER

HUB - roller, single flange

1шт.

14

221-841

PLUG

- hex, socket, 1/4" NPT

1шт.

15

R27956

SHAFT

- roller

1шт.

R28342

ROLLER

ASSEMBLY - track, double flange, for id: see ref 3 of illustration, Includes: Ref. 1 - 15

6шт.

1

280375

NUT,3/4"-10, GC

NUT - hex, self lock, 3/4" x 10 NC, R28342 track roller-double flange, for id: see ref 3 of illustration

2шт.

2

R29429

WASHER

- special, R28342 track roller-double flange, for id: see ref 3 of illustration

2шт.

3

R27951

CYLINDER END CAP

BLOCK AND RETAINER - seal, R28342 track roller-double flange, for id: see ref 3 of illustration

2шт.

4

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- R28342 track roller-double flange, for id: see ref 3 of illustration

2шт.

5

R39273

SEAL

- face, R28342 track roller-double flange, for id: see ref 3 of illustration, Includes: Ref. 6 - 8

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - seal, split, R28342 track roller-double flange, for id: see ref 3 of illustration

1шт.

D36826

SEAL KIT

KIT - repair, R28342 track roller-double flange, for id: see ref 3 of illustration, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rubber, R28342 track roller-double flange, for id: see ref 3 of illustration

2шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - plastic, R28342 track roller-double flange, for id: see ref 3 of illustration

1шт.

9

R34742

SEAL

SPACER - seal, R28342 track roller-double flange, for id: see ref 3 of illustration

2шт.

10

A75219

ROLLER BEARING,1.9685" ID x 1.4173"

CONE - bearing, R28342 track roller-double flange, for id: see ref 3 of illustration

2шт.

11

A75218

BEARING CUP,4.1339" OD x 1.1417"

CUP - bearing, R28342 track roller-double flange, for id: see ref 3 of illustration

2шт.

12

R27955

SPACER

- bearing, R28342 track roller-double flange, for id: see ref 3 of illustration

1шт.

13a

R28301

BEARING, ROLLER

HUB - roller, double flange, R28342 track roller-double flange, for id: see ref 3 of illustration

1шт.

14

221-841

PLUG

- hex, socket, 1/4" NPT, R28342 track roller-double flange, for id: see ref 3 of illustration

1шт.

15

R27956

SHAFT

- R28342 track roller-double flange, for id: see ref 3 of illustration

1шт.
