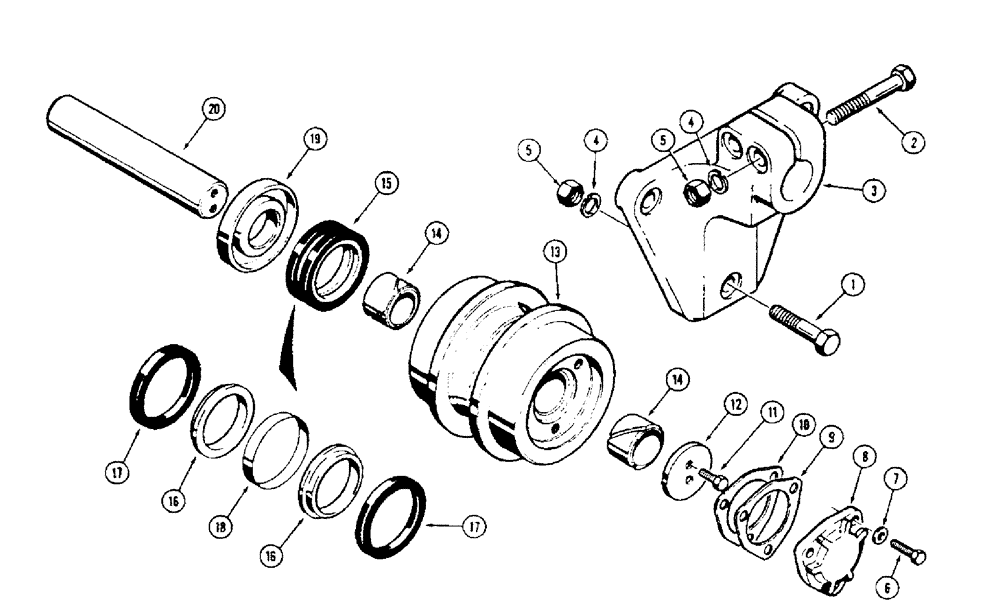

Запчасти Case 1450 (174) - TRACK CARRIER ROLLER AND MOUNTING (11) - TRACKS/STEERING

1

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

6шт.

2

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

HHCS - 5/8" - 11 NC x 3-1/2"

4шт.

3

R34885

BRACKET

- mounting, roller

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

5

25-1010

NUT,5/8"-11, G5

10шт.

R28291

CARRIER

ROLLER ASSEMBLY - carrier, Includes: Ref. 6 - 20

2шт.

6

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

R28291 track carrier roller, for id: see ref 8 of illustration Hex, 1/2"-13 x 1 1/4", G8, Full Thd

3шт.

7

D35288

WASHER

- special, copper, R28291 track carrier roller, for id: see ref 8 of illustration

3шт.

8

R29288

COVER ASSY

COVER - roller, R28291 track carrier roller, for id: see ref 8 of illustration

1шт.

9

D30383

SHIM,.005" Thk

(.127 mm), Blue, R28291 Track carrier roller, for ID: see Ref 8 of illustration .005" Thk

1шт.

10

D30384

SHIM,.010" Thk

(0.254 mm), Brown, R28291 Track carrier roller, for ID: See Ref 8 of illustration .010" Thk

1шт.

11

26-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

HHCS - 1/2" - 13 NC x 1", grade 8, R28291 track carrier roller, for id: see ref 8 of illustration

2шт.

12

R29259

WASHER

- thrust, R28291 track carrier roller, for id: see ref 8 of illustration

1шт.

13

R28292

HUB CARRIER

HUB - roller, R28291 track carrier roller, for id: see ref 8 of illustration

1шт.

14

R24542

BUSHING,44.51mm ID x 49.23mm OD x 38.1mm L

- split, R28291 track carrier roller, for id: see ref 8 of illustration

2шт.

15

R39273

SEAL

- face, R28291 track carrier roller, for id: see ref 8 of illustration, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - split, R28291 track carrier roller, for id: see ref 8 of illustration

2шт.

D36826

SEAL KIT

KIT - repair, R28291 track carrier roller, for id: see ref 8 of illustration, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - rubber, R28291 track carrier roller, for id: see ref 8 of illustration

2шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - plastic, R28291 track carrier roller, for id: see ref 8 of illustration

1шт.

19

D35265

COLLAR

BUSHING - thrust, R28291 track carrier roller, for id: see ref 8 of illustration

1шт.

20

R28294

SHAFT

- roller, R28291 track carrier roller, for id: see ref 8 of illustration

1шт.
