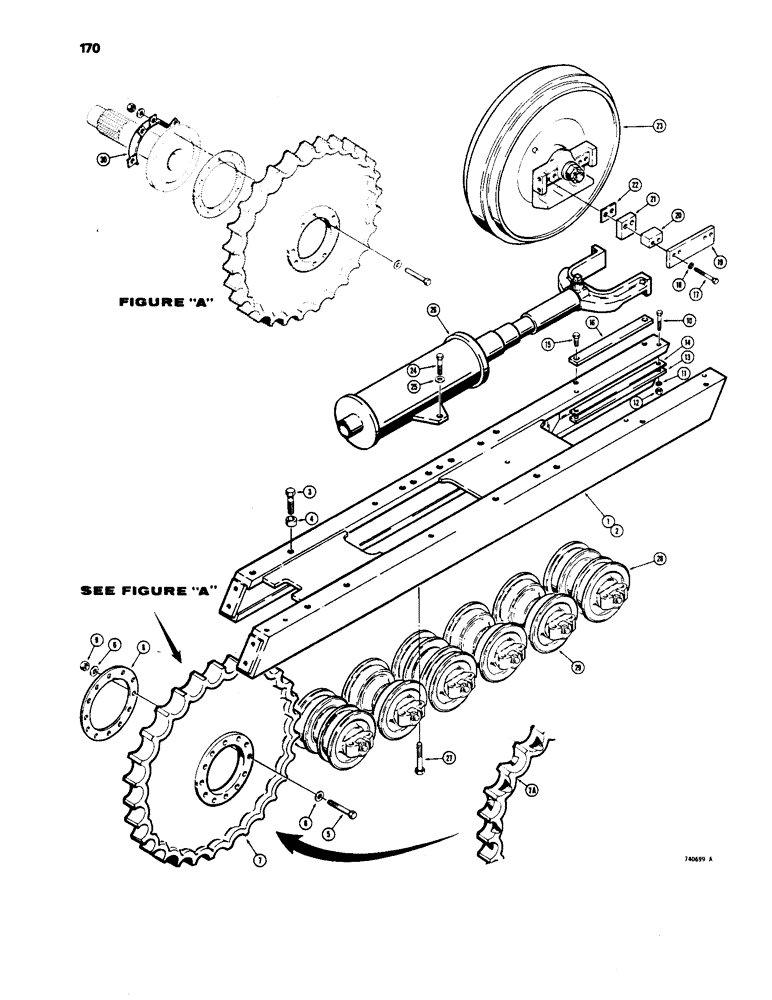

Запчасти Case 1450 (170) - TRACK FRAMES AND RELATED PARTS, LOADER MODELS (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
1
R28361
FRAME - track, RH
1шт.
2
R28360
FRAME - track, LH
1шт.
3
13-1656
BOLT,Hex, 1" - 8 x 3-1/2", Gr 5
HHCS - 1" - 8 NC x 3-1/2"
20шт.
4
R29162
BUSHING
SPACER - frame mounting
20шт.
5
R27242
BOLT
- 3/4" - 10 NC x 3", grade 8
24шт.
5
R39270
BOLT
- 3/4" - 10 NC x 3-1/4", grade 8
24шт.
6
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- hardened
48шт.
7
R29298
DRIVE SPROCKET
SPROCKET - .800" (20.32 mm) thick flange, use R41002 and (12) R38270 bolts
2шт.
7
R41002
DRIVE SPROCKET
SPROCKET - .994" (25.25 mm) thick flange
2шт.
7a
R33393
DRIVE SPROCKET
SPROCKET - relieved, service option, .800" (20.32 mm) thick flange, use R41003 and (12) R39270 bolts
2шт.
7a
R41003
DRIVE SPROCKET
SPROCKET - relieved, service option, .994" (25.25 mm) thick flange
2шт.
8
R27241
SHIM,1/32" Thk
(7.62 mm) 1/32" Thk
1шт.
10
13-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
8шт.
12
25-1010
NUT,5/8"-11, G5
8шт.
13
R25689
BAR
- wear
4шт.
14
R25691
SHIM
- .030" (0.762 mm) thick
1шт.
15
13-1228
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
8шт.
16
R28233
BAR
- guide
4шт.
17
26-864
BOLT,Hex, 1/2" - 13 x 4", Gr 8
HHCS - 1/2" - 13 NC x 4", grade 8
16шт.
18
92-8
LOCK WASHER,1/2"
16шт.
19
R29187
BLOCK
- thrust
4шт.
20
R30203
SPACER
- block
8шт.
21
R25694
BLOCK
- guide, idler
8шт.
22
R25693
SHIM,.0299" Thk
(0.7594 mm) ( Replaced R24593 ) .0299" Thk
1шт.
23
REF
INSTRUCTION
IDLER WHEEL ASSEMBLY - parts list Figure 172
2шт.
24
13-1228
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
4шт.
25
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- hardened
4шт.
26
REF
INSTRUCTION
RECOIL SYSTEM - parts list Figure 172
2шт.
27
13-1252
BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5
48шт.
28
REF
INSTRUCTION
ROLLER - double flange, see Figures 176 and 178
6шт.
29
REF
INSTRUCTION
ROLLER - single flange, see Figures 176 and 178
6шт.
30
R36703
GUARD
- sprocket seal
4шт.
Выбрано товаров: 34
