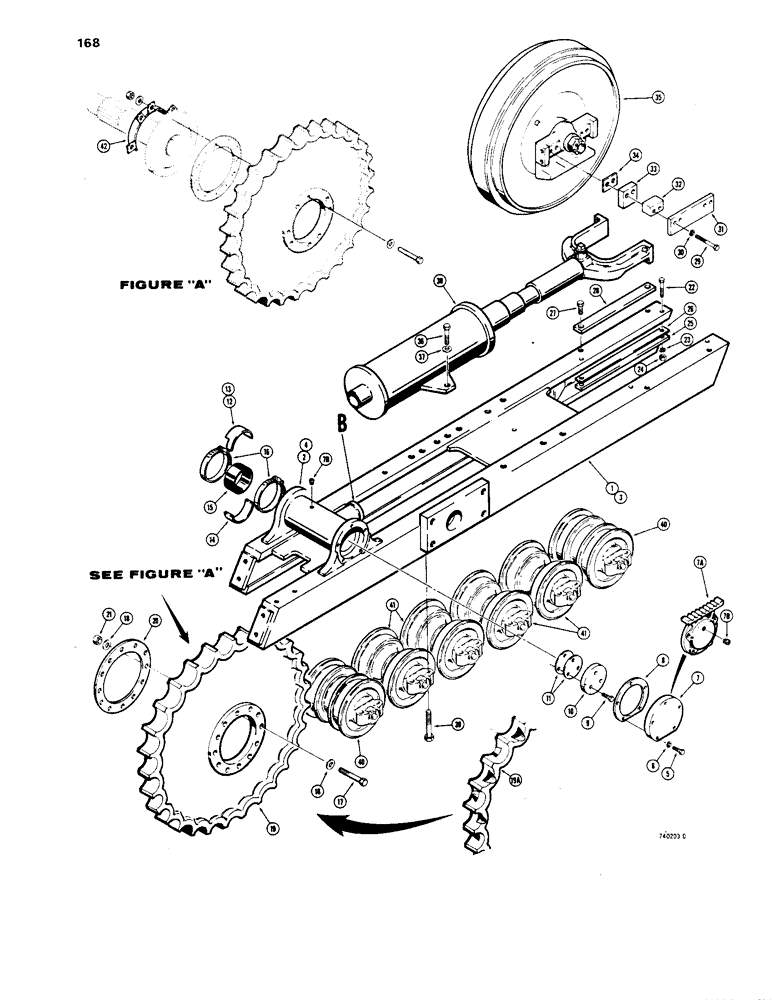

Запчасти Case 1450 (168) - TRACK FRAMES AND RELATED PARTS, DOZER MODELS (11) - TRACKS/STEERING

1

R28449

FRAME

- RH track, B is 1/2" (13 mm) long, Includes: Ref. 2

1шт.

1

R36030

FUNNEL

FRAME - RH track, B is 1-1/2" (38 mm) long, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

BLOCK - R28449 and R36030 frames

1шт.

3

R28448

FRAME

- LH track, B is 1/2" (13 mm) long, Includes: Ref. 4

1шт.

3

R36029

FUNNEL

FRAME - LH track, B is 1-1/2" (38 mm) long, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

BLOCK - R28448 and R36029 frames

1шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

10шт.

6

92-8

LOCK WASHER,1/2"

10шт.

7

R28440

COVER

- shaft, use R38494 and 221-841

2шт.

7a

R27379

COVER

AND STEP - shaft, no plug, use R38494 and 221-841

2шт.

7a

R38494

COVER

AND STEP - shaft, requires plug

2шт.

7b

221-841

PLUG

- square socket, 1/4" NPT

4шт.

8

R27377

GASKET,0.38mm Thk

- cover

1шт.

9

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

HHCS - 5/8" - 11 NC x 1-3/4", grade 8

6шт.

10

R36950

PLATE

- shaft

2шт.

11

R28436

SHIM,69.85mm ID x 96.52mm OD x 0.79mm Thk

(0.7874 mm) .031" Thk

1шт.

12

R29255

GUARD

- shaft, LH top

1шт.

13

R29256

GUARD

- shaft, RH top

1шт.

14

R29257

GUARD

- shaft, bottom

2шт.

15

R35267

SEAL

- shaft

2шт.

16

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - seal

4шт.

17

R27252

HARNESS

BOLT - 3/4" - 10 NC x 3", grade 8

24шт.

17

R39270

BOLT

- 3/4" - 10 NC x 3-1/4", grade 8

24шт.

Should be R27242

1шт.

18

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

48шт.

19

R29298

DRIVE SPROCKET

SPROCKET - .800" (20.32 mm) thick flange, use R41002 and (12) R39270 bolts

2шт.

19

R41002

DRIVE SPROCKET

SPROCKET - .994" (25.25 mm) thick flange

2шт.

19a

R33393

DRIVE SPROCKET

SPROCKET - relieved, service option, .800" (20.32 mm) thick flange, use R41003 and (12) R39270 bolts

2шт.

19a

R41003

DRIVE SPROCKET

SPROCKET - relieved, service option, .800" (20.32 mm) thick flange

2шт.

20

R27241

SHIM,1/32" Thk

(7.62 mm) 1/32" Thk

1шт.

21

280375

NUT,3/4"-10, GC

NUT - hex, self lock, 3/4" - 10 NC

24шт.

22

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

24

25-1010

NUT,5/8"-11, G5

8шт.

25

R25689

BAR

- wear

4шт.

26

R25691

SHIM

- .030" (.762 mm) thick

1шт.

27

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

28

R28233

BAR

- guide

4шт.

29

27-864

BOLT

HHCS - 1/2" - 13 NC x 4", grade 8

16шт.

30

92-8

LOCK WASHER,1/2"

16шт.

31

R29187

BLOCK

- thrust

4шт.

32

R30203

SPACER

- block

8шт.

33

R25694

BLOCK

- guide, idler

8шт.

34

R25693

SHIM,.0299" Thk

(0.7594 mm) .0299" Thk

1шт.

35

REF

INSTRUCTION

IDLER WHEEL ASSEMBLY - parts list Figure 172

2шт.

36

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

37

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

4шт.

38

REF

INSTRUCTION

RECOIL SYSTEM - parts list Figure 172

2шт.

39

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

48шт.

40

REF

INSTRUCTION

ROLLER - double flange, see Figures 176 and 178

6шт.

41

REF

INSTRUCTION

ROLLER - single flange, see Figures 176 and 178

6шт.

42

R36703

GUARD

- sprocket

4шт.
