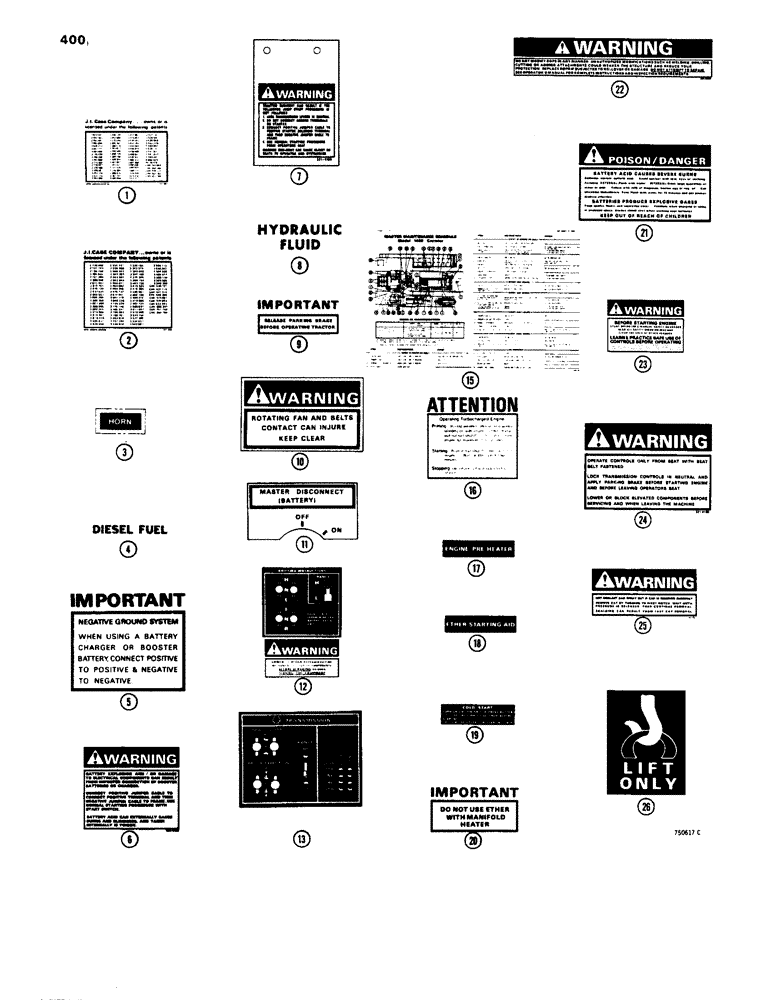

Запчасти Case 1450 (400) - DECALS (09) - CHASSIS/ATTACHMENTS

1

321-663

DECAL

- tractor patent, no longer used

1шт.

2

321-246

DECAL

- equipment patent, no longer used

1шт.

3

321-3294

DECAL

- horn

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

4

321-230

DECAL

- Diesel Fuel

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

5

321-1062

DECAL

- Caution, battery, use 321-4190

1шт.

6

321-4190

DECAL

- Warning, battery

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

7

321-4189

DECAL

- Warning, tractor runaway can

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

8

321-229

DECAL

- hydraulic Fluid

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

9

321-2387

DECAL

- Important, release parking brake, use 321-4188

1шт.

10

321-3596

DECAL

- Caution, fan

3шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

11

321-2392

DECAL

- master disconnect

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

12

321-3383

DECAL

- Shifting Instructions and Warning, use 321-4178 and 321-4188

1шт.

13

321-4178

DECAL

- transmission

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

15

321-4609

DECAL

- Master Maintenance Schedule

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

16

321-2605

DECAL

- operation procedure

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

17

321-2434

DECAL

- preheater

1шт.

18

321-1841

DECAL

- Cold Start

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

19

321-2435

DECAL

- Ether Starting Aid

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

20

321-2646

DECAL

- Do not use Ether with Manifold Heater, no longer used

1шт.

21

321-2996

DECAL

- Posion/Danger

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

22

321-4192

DECAL

- Warning - ROPS modification

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

23

321-3705

DECAL

- Warning, before starting engine

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

24

321-4188

DECAL

- Warning, operate from seat

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

25

321-3708

DECAL

- radiator pressure

1шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

26

321-3587

DECAL

- lift instructions

4шт.

Part of decal kit P/N R42950 above and on Figure 398

1шт.

R42950

DECAL

KIT - decal Includes: Refs. 3, 4, 6 - 8, 10, 11, 13, 15, 16, 18, 19 and 21 - 26 above and on figure 398

1шт.
