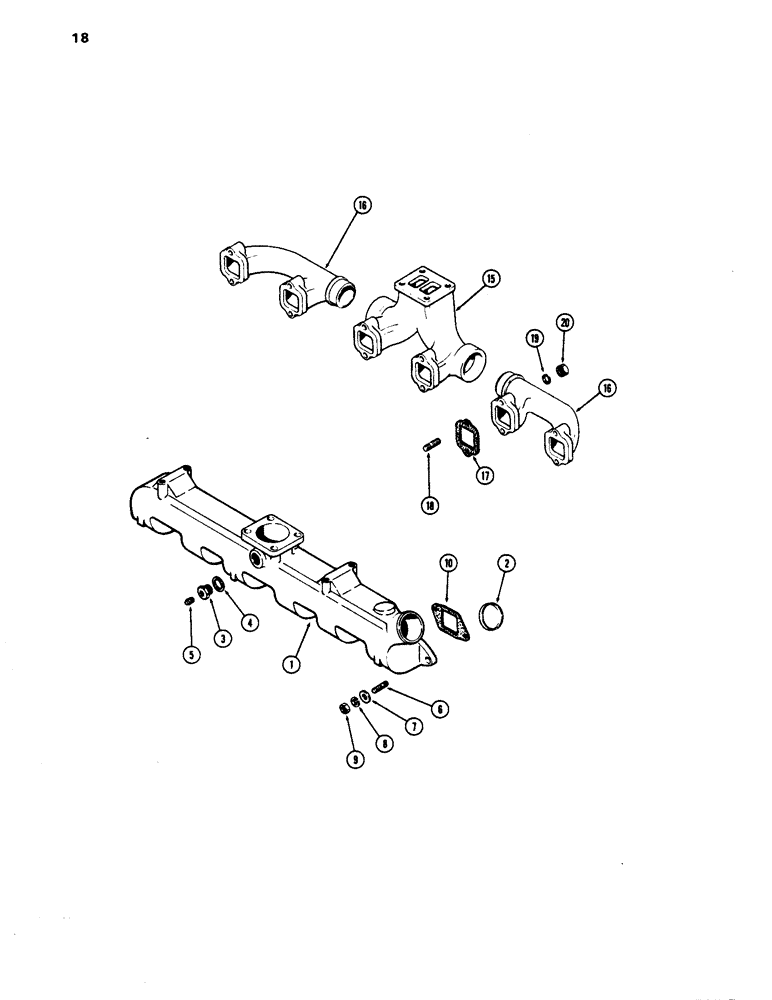

Запчасти Case 1450 (018) - MANIFOLDS, 504BDT DIESEL ENGINE, INTAKE MANIFOLD (02) - ENGINE

1

A66087

MANIFOLD

ASSY. - intake, Includes: Ref. 2 - 5

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- (2-5/8" cup type)

1шт.

3

L10283

PLUG

- heater hole

1шт.

4

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

5

221-41

PLUG

- (1/8" P.T. sltd. hd.)

1шт.

6

A59077

STUD

- intake manifold (3/8" N.C. x 1-13/16")

12шт.

7

195-25

WASHER,3/8"

- intake manifold (13/32 x 13/16 x 1/16")

12шт.

8

92-6

LOCK WASHER,3/8"

12шт.

9

25-166

NUT,3/8"-16, G5, Hvy

- intake manifold (3/8" N.C. hex.)

12шт.

10

A58662

MANIFOLD GASKET

- intake manifold

6шт.

15

A76322

MANIFOLD

- exhaust, center

1шт.

16

A65917

MANIFOLD

- exhaust, ends

2шт.

17

A58895

GASKET

- exhaust manifold

6шт.

18

A140924

STUD

- exhaust manifold (3/8" N.C. x 2-7/16") (Replaces 35175)

12шт.

19

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

12шт.

20

131-903

NUT,3/8"-16

NUT - exhaust manifold (3/8" N.C. hex., Seezpruf)

12шт.
