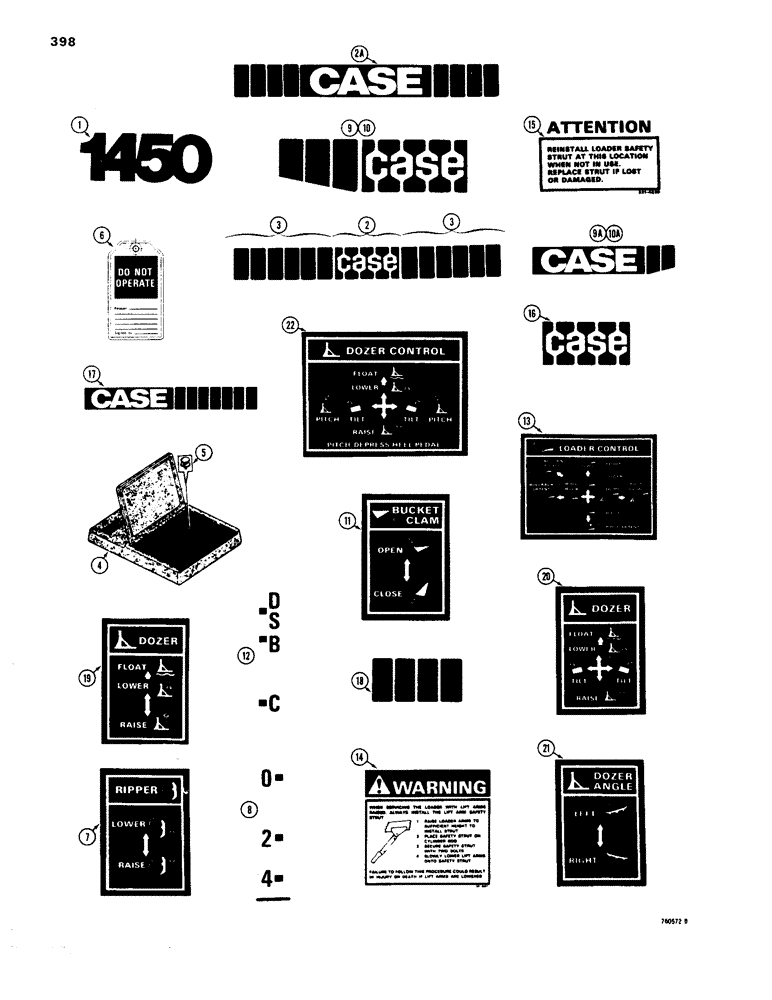

Запчасти Case 1450 (398) - DECALS, LATE PRODUCTION (09) - CHASSIS/ATTACHMENTS

1

321-3128

DECAL

- 1450

2шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

2

321-2428

DECAL

- Case, rear

1шт.

2a

321-5273

DECAL

- Case, rear

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

3

321-3123

DECAL

- treads, rear

2шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

4

R38893

CASE

- operators manual

1шт.

5

151-522

RIVET,Pop, 3/16" x .575"

- pop

3шт.

6

321-4614

TAG

- Do Not Operate

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

7

321-4185

DECAL

- Ripper

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

8

321-1706

DECAL

- bucket position

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

9

321-3132

DECAL

- Case, LH

1шт.

9a

321-5275

DECAL

- Case, LH

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

10

321-3133

DECAL

- Case, RH

1шт.

10a

321-5274

DECAL

- Case, RH

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

11

321-4184

DECAL

- clam position, 4-In-1 Bucket

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

12

321-2602

DECAL

- bucket position, 4-In-1 Bucket

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

13

321-4435

DECAL

- loader control

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

14

321-4227

DECAL

- Warning, safety strut usage

2шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

15

321-4289

DECAL

- strut storage

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

16

321-2428

DECAL

- Case, hood, dozer models

2шт.

17

321-5276

DECAL

- Case, LH, dozer models

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

17

321-5277

DECAL

- Case, RH, dozer models

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

18

321-3123

DECAL

- treads, hood, dozer models

4шт.

19

321-4397

DECAL

- Mechanical Angle Control, dozer models

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

20

321-4181

DECAL

- Tilt Control, dozer models

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

21

321-4182

DECAL

- Angle, dozer models

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

22

321-4173

DECAL

- Control, Lower, Raise, Tilt and Pitch, dozer models

1шт.

Part of decal kit P/N R42950 above and on Figure 400

1шт.

R42950

DECAL

KIT - decal, Includes: Refs. 1, 2a, 3, 6 - 8, 9a, 10a - 15, 17 and 19 - 22 above and on Figure 400, dozer models

1шт.

321-4739

EMBLEM

Medallion, dozer models

1шт.
