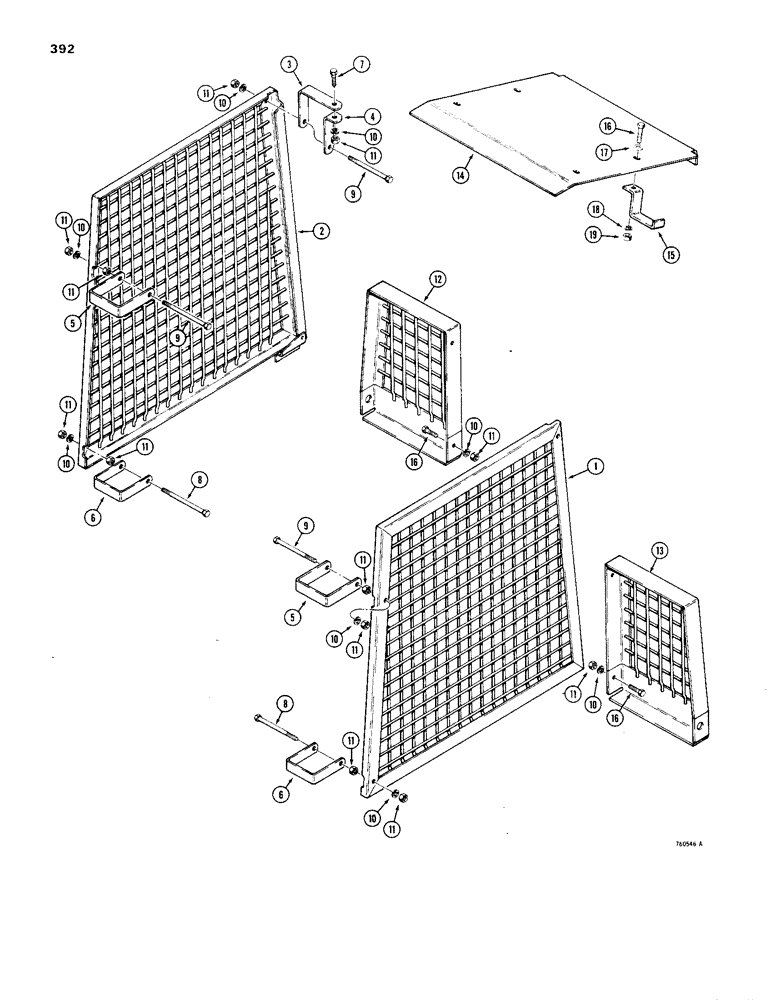

Запчасти Case 1450 (392) - ROLL-OVER PROTECTION SIDE SCREENS AND EXTENSION, USED BEFORE TRAC SN 8380422 (09) - CHASSIS/ATTACHMENTS

1

F93822

SCREEN - RH side

1шт.

2

F93823

SCREEN - LH side

1шт.

3

F44109

SUPPORT - outer

2шт.

4

F44111

SUPPORT - inner

2шт.

5

F43766

SUPPORT

CLAMP - upper rear

2шт.

6

R37018

CLAMP - lower rear

2шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

HHCS - 1/2" - 13 NC x 1-1/4", plated

2шт.

8

113-423

BOLT,Hex, 1/2" - 13 x 7", Gr 5

HHCS - 1/2" - 13 NC x 7", plated

2шт.

9

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

4шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

12

F93957

SCREEN - LH front, dozer only

1шт.

13

F93958

SCREEN - RH front, dozer only

1шт.

14

F43768

CANOPY EXTENSION - ROPS, dozer only

1шт.

15

F43756

CLAMP - canopy

4шт.

16

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

17

195-106

WASHER,1/2"

- flat, , plated 1/2"

4шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.
