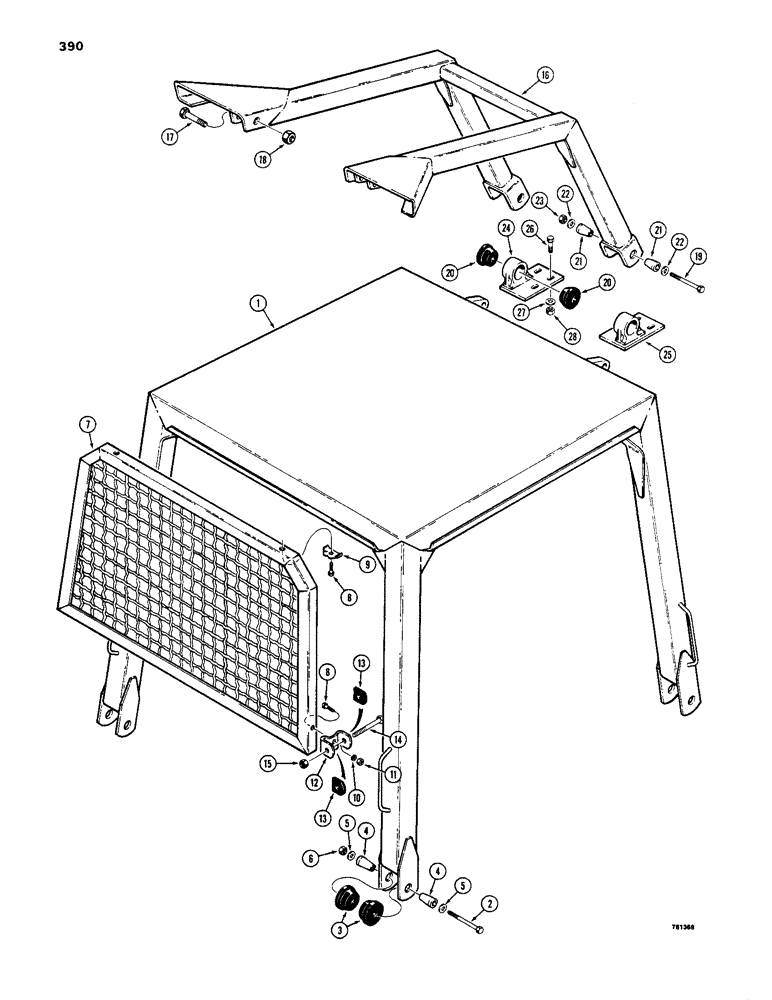

Запчасти Case 1450 (390) - ROLL-OVER PROTECTION STRUCTURE, USED TRACTOR SN 8380422 AND AFT (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

CANOPY - ROPS, order from machinery price list

1шт.

2

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

4шт.

3

F44214

MOUNTING PARTS

CUSHION - rubber

8шт.

4

F44228

BUSHING,19.46mm ID x 38.1mm OD x 60.2mm L

8шт.

5

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened

8шт.

6

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self lock, 3/4" - 10 NC

4шт.

7

R40097

SCREEN

- rear

1шт.

8

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

9

R38226

LOCK WASHER

- special

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

12

R40073

CLAMP

2шт.

13

R40074

CUSHION ASSY.

CUSHION - rubber

4шт.

14

13-2429

HHCS - 1/2" - 13 NC x 5-3/4", plated

2шт.

15

131-70

NUT,1/2"-13, GB

NUT - hex, self lock, 1/2" - 13 NC, plated

2шт.

16

R41199

GUARD

- brush sweep

1шт.

17

13-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

18

230-41116

NUT,1"-8, GA

NUT - hex, self lock, 1" - 8 NC

2шт.

19

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

20

F44212

MOUNTING PARTS

CUSHION - rubber

4шт.

21

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

4шт.

22

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened

4шт.

23

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self lock, 3/4" - 24 NC

2шт.

24

R41175

BASE

BRACKET - LH on dozer, RH on loader

1шт.

25

R41176

BASE

BRACKET - RH on dozer, LH on loader

1шт.

26

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

6шт.

27

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

6шт.

28

25-1012

NUT,3/4"-10, G5

6шт.

T42579

LOCK ASSY

Used for sims Cab

1шт.
