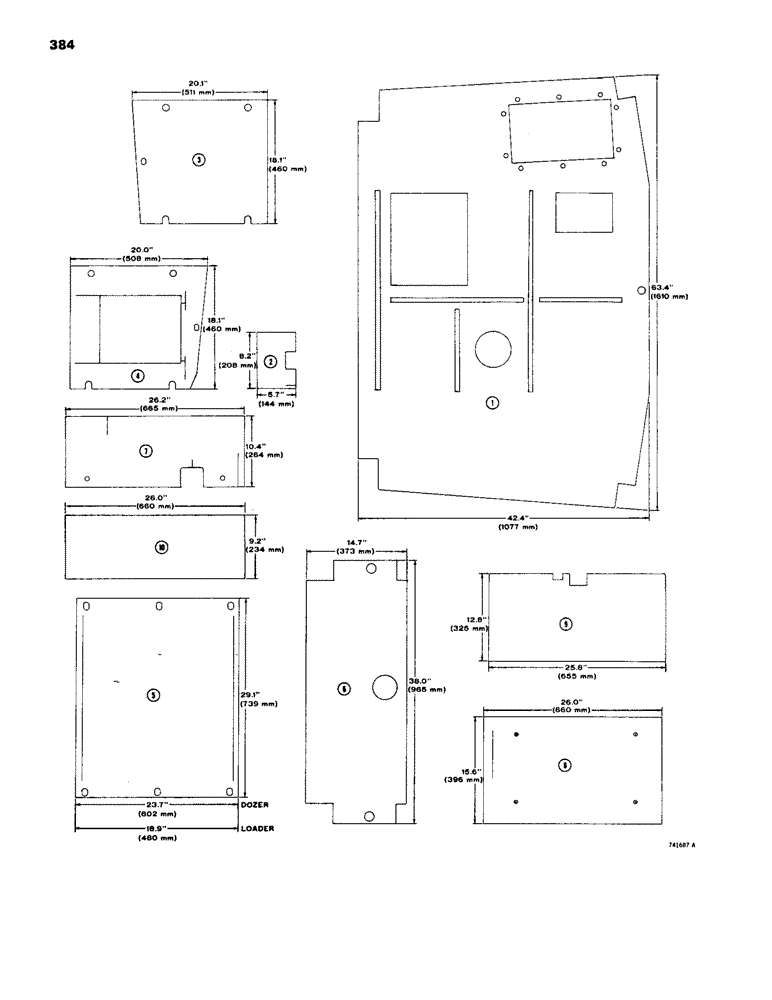

Запчасти Case 1450 (384) - NOISE REDUCTION AND ANTI-RECIRCULATION PADS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

PAD - hood, cut from R30870

1шт.

2

REF

INSTRUCTION

PAD - hood door, cut from R30870

1шт.

3

REF

INSTRUCTION

PAD - shield LH and RH front, cut from R30870

2шт.

4

REF

INSTRUCTION

PAD - shield, LH and RH rear, cut from R30870

2шт.

5

REF

INSTRUCTION

PAD - engine guard, front, cut from R30870

1шт.

6

REF

INSTRUCTION

PAD - dozer transmission guard, rear, cut from R30870

1шт.

7

REF

INSTRUCTION

PAD - heel plate, cut from R30870

1шт.

8

REF

INSTRUCTION

PAD - seat plate, cut from R30870

1шт.

9

REF

INSTRUCTION

PAD - tool box cover, cut from R30870

1шт.

10

REF

INSTRUCTION

PAD - tool box cover, cut from R30870

1шт.

11

REF

INSTRUCTION

PAD - hood support, cut from R30870

1шт.

12

R42048

PAD

- ROPS roof

1шт.

13

REF

INSTRUCTION

PAD - outer floor plate, cut from R30870

2шт.

14

REF

INSTRUCTION

PAD - center floor plate, RH front, cut from R30870

1шт.

15

REF

INSTRUCTION

PAD - center floor plate, LH rear, cut from R30870

1шт.

16

REF

INSTRUCTION

PAD - tower, control, cut from R30870

1шт.

17

REF

INSTRUCTION

PAD - center floor plate, LH front, cut from R30870

1шт.

18

REF

INSTRUCTION

PAD - center floor plate, RH rear, cut from D30870

1шт.

19

REF

INSTRUCTION

PAD - hydraulic tank, front, cut from R30870

1шт.

20

REF

INSTRUCTION

PAD - hydraulic tank, side cover, cut from R30870

1шт.

21

REF

INSTRUCTION

PAD - hydraulic tank, top cover, cut from R30870

1шт.

22

REF

INSTRUCTION

PAD - rear cover, Cut from R30870

1шт.

23

REF

INSTRUCTION

PAD - rear transmission guard, ripper models, cut from R30870

1шт.

24

R30870

PAD

- bulk, 54" x 72" x 1" (1371.6 mm x 1828.8 mm x 25.4 mm) not shown

1шт.

27

REF

INSTRUCTION

PAD - headlight plate, cut from R30870, use ref 31

1шт.

28

REF

INSTRUCTION

PAD - headlight plate, cut from R30870, use ref 31

2шт.

29

REF

INSTRUCTION

PAD - radiator angle, cut from R30870

1шт.

30

REF

INSTRUCTION

PAD - shroud, cut from R30870

2шт.

31

REF

INSTRUCTION

PAD - headlight plate, cut from R30870

1шт.
