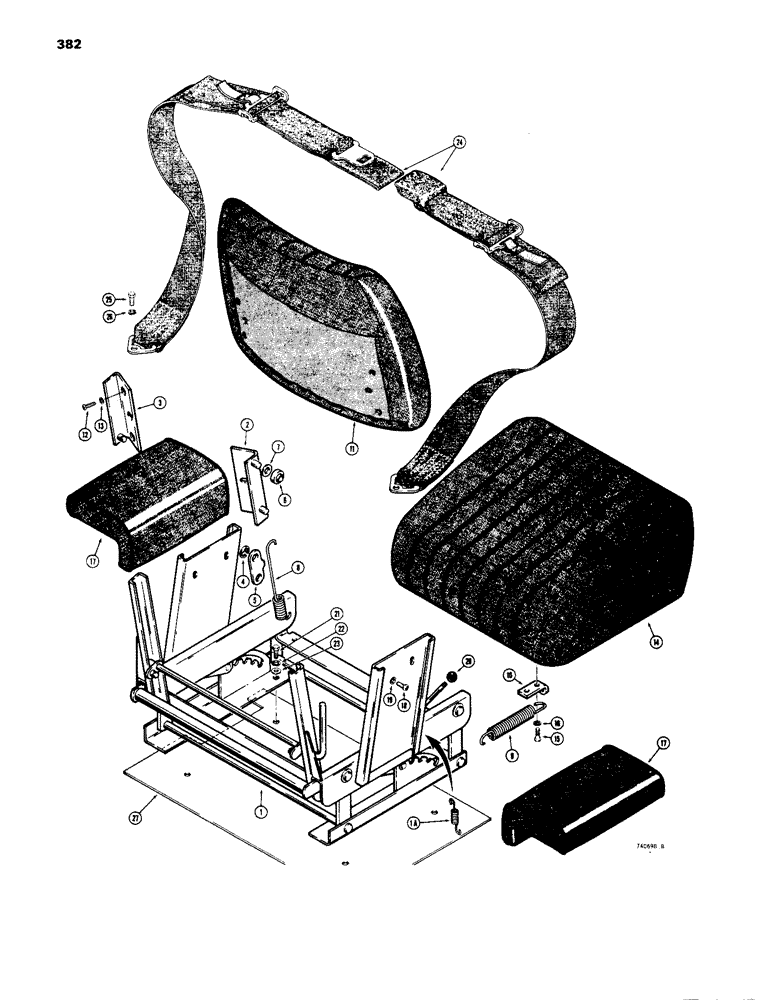

Запчасти Case 1450 (382) - SEAT ASSEMBLIES AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

R31429

SEAT

ASSEMBLY - complete, Includes: Ref. 1 - 20

1шт.

1

R31666

FRAME

- seat, Includes: Ref. 1A

1шт.

1a

D64839

SPRING

- frame

1шт.

2

R31671

BRACKET

- back rest, RH

1шт.

3

R31672

BRACKET

- back rest, LH

1шт.

4

REF

INSTRUCTION

RING - retaining

4шт.

5

R31674

LINK

- back adjustment

2шт.

6

R31673

ROLLER

4шт.

7

REF

INSTRUCTION

WASHER

2шт.

8

R31675

VALVE SPRING

SPRING - back adjusting

2шт.

9

R31670

VALVE SPRING

SPRING - seat adjusting

1шт.

10

R31669

BRACKET

- spring

1шт.

11

R31668

CUSHION

- back

1шт.

12

REF

INSTRUCTION

SCREW

6шт.

13

92-5

LOCK WASHER,5/16"

6шт.

14

R31667

CUSHION

- seat

1шт.

15

REF

INSTRUCTION

SCREW

6шт.

16

92-5

LOCK WASHER,5/16"

6шт.

17

R31677

CUSHION

- arm rest

2шт.

18

REF

INSTRUCTION

SCREW

4шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

R31676

BALL

KNOB - handle

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Seat only Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Seat and plate Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

D41740

WASHER

- hardened, 3/8"

4шт.

24

R36488

SAFETY BELT

SAFETY BELT, 3" (66 mm) wide

1шт.

24

R39063

SAFETY BELT

SAFETY BELT, 2" (51 mm) wide

1шт.

25

F42236

STEP BOLT

BOLT - shoulder

2шт.

26

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

27

R29451

PLATE ASSEMBLY - seat, see Figure 384, ref no. 8 for pad

1шт.
