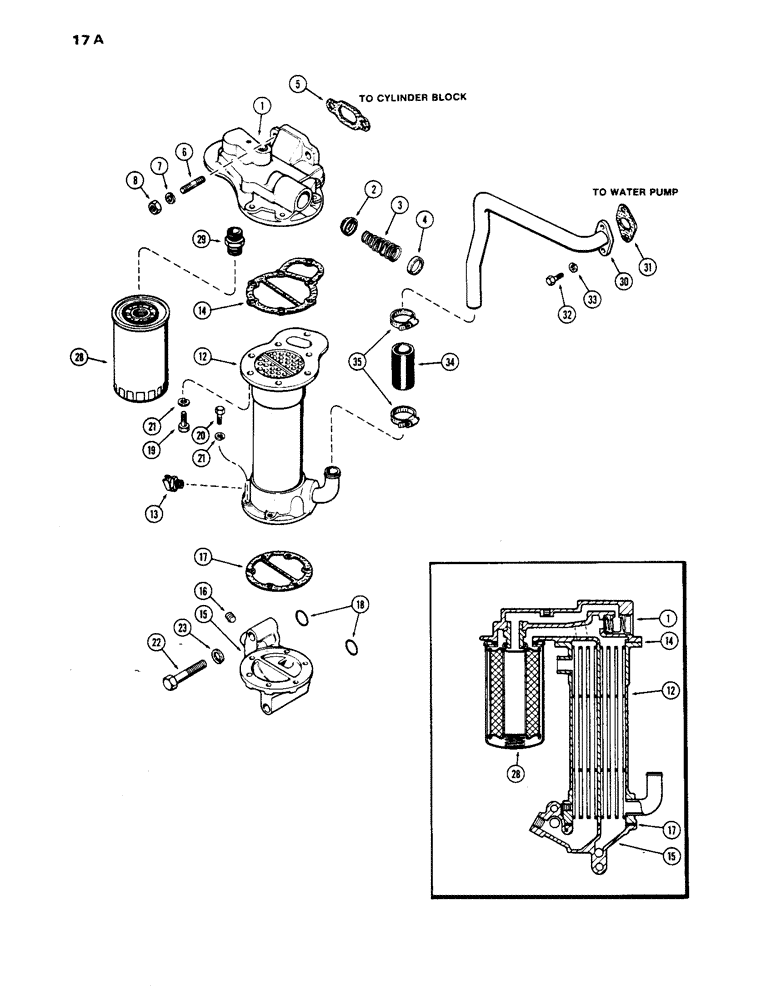

Запчасти Case 1450 (017A) - OIL FILTER AND HEAT EXCHANGER, 504BDT DIESEL ENGINE, USED ENG SN 2585698 (02) - ENGINE

1

A58667

HEAD

ASSY, Includes: Ref. 2 - 4

1шт.

2

A21090

VALVE

- oil filter relief

1шт.

3

A58669

SPRING

- relief valve (2-13/16" free length)

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve (1-1/4" cup type)

1шт.

5

A58670

GASKET

-, Serial Range: head-block

1шт.

6

G102126

STUD

- head to block (1/2" N.C. x 2-1/8") (Replaces A50241)

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

12

A58674

COOLER

EXCHANGER - heat unit

1шт.

13

A23656

COCK, DRAIN

VALVE - drain

1шт.

14

A58676

GASKET

- exchanger, Serial Range: unit-head

1шт.

15

A64409

BASE

ASSY, Includes: Ref. 16

1шт.

16

221-844

PLUG,Hex Soc, 1/2"-14

- (1/2" P.T., hex. sckt. hd.)

1шт.

17

A58675

GASKET

- base to exchanger unit

1шт.

18

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block (15/16 x 1-1/8 x 3/32")

2шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Unit to head Hex, 3/8"-16 x 1", G5, Full Thd

7шт.

20

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- base to unit (3/8 x 1-3/8" N.C. hex.)

5шт.

20

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- base to unit (3/8 x 2-1/2" N.C. hex.)

1шт.

21

92-6

LOCK WASHER,3/8"

13шт.

22

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- base to block (1/2 x 3" N.C. hex.)

1шт.

22

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Base to block Hex, 1/2"-13 x 4 1/2", G5

1шт.

23

92-8

LOCK WASHER,1/2"

2шт.

28

A62423

FILTER, ENGINE OIL

FILTER - oil (for 7/8" N.F. adapter)

1шт.

29

A59109

ADAPTER

- filter to head (7/8" N.F. at filter end)

1шт.

30

A66261

TUBE

- (to water pump body)

1шт.

31

A58680

OIL PAN GASKET SET

- tube to water pump

1шт.

32

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Tube to water pump Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

33

92-5

LOCK WASHER,5/16"

2шт.

34

A58681

HOSE

- tube to exchanger (1" I.D. x 2-1/2")

1шт.

35

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.
