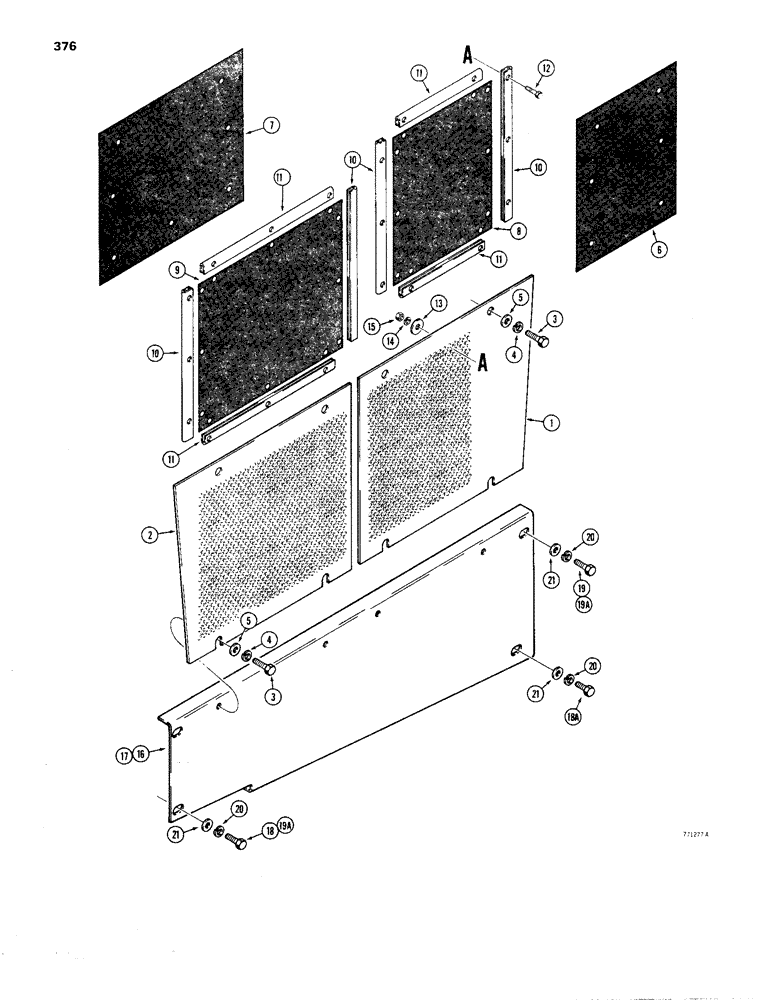

Запчасти Case 1450 (376) - SIDE SHIELDS AND SCREENS (09) - CHASSIS/ATTACHMENTS

1

R42302

SHIELD

- side, front

2шт.

1

R32086

GUARD

SHIELD AND PAD - side, LH front, see Figure 384 and 386 for pads

1шт.

1

R32087

GUARD

SHIELD AND PAD - side, RH front, see Figure 384 and 386 for pads

1шт.

2

R32094

GUARD

SHIELD AND PAD - side, LH rear, see Figure 384 and 386 for pads

1шт.

2

R32095

GUARD

SHIELD AND PAD - side, RH rear, see Figure 384 and 386 for pads

1шт.

2

R42303

SHIELD

- side, rear

2шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

20шт.

4

92-8

LOCK WASHER,1/2"

20шт.

5

195-33

WASHER,1/2"

- flat, 1/2"

20шт.

6

R28718

SCREEN

- side, front, use R40309 screen and (2) R40306 and R40307 plates

2шт.

7

R28719

BUSHING

- side, rear, use R40310 screen and (2) R40307 and (2) 40305 plates

2шт.

8

R40309

SCREEN

- side, front

2шт.

9

R40310

SCREEN

- side, rear

2шт.

10

R40307

STRIP

PLATE

8шт.

11

R40306

STRIP

PLATE

8шт.

11a

R40305

STRIP

PLATE

4шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

44шт.

13

195-28

WASHER,3/8"

- flat, 3/8"

52шт.

14

92-6

LOCK WASHER,3/8"

44шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

44шт.

16

R28601

COVER - lower, LH, side, dozer model

1шт.

16

R28597

SHIELD

COVER - lower, LH, side, loader model

1шт.

17

R28602

COVER - lower, RH, side, dozer model

1шт.

17

R28598

COVER - lower, RH, side, loader model

1шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Dozer model Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

18

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4", loader model

2шт.

18a

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

19

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4", dozer model

4шт.

19

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Loader model Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

19a

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

20

92-8

LOCK WASHER,1/2"

8шт.

21

195-33

WASHER,1/2"

- flat, , dozer model 1/2"

8шт.

21

95-8

WASHER,1/2"

flat, loader model 1/2"

8шт.
