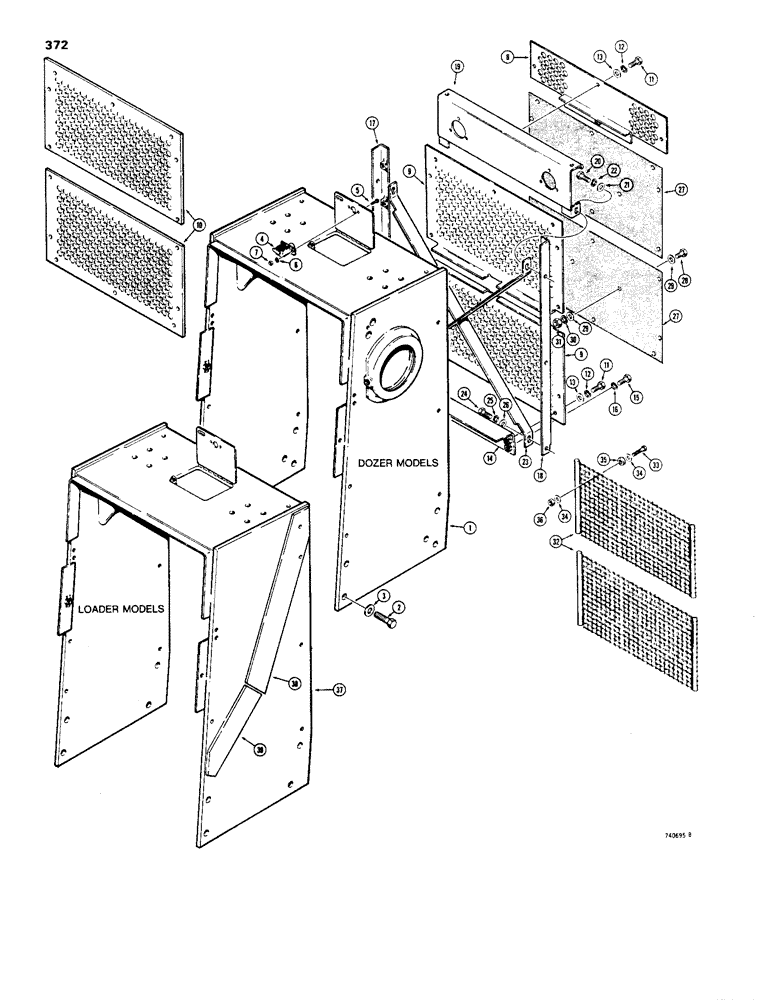

Запчасти Case 1450 (372) - RADIATOR, SHROUD, GRILLE AND SCREEN (09) - CHASSIS/ATTACHMENTS

1

R28483

GUARD

SHROUD - radiator, dozer models

1шт.

dlr needs outer race lift trunnion part is R44207

1шт.

Some units may require L102515 Latch

1шт.

2

13-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

Dozer Hex, 1"-8 x 2 1/2", G5, Full Thd

10шт.

2

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

HHCS - 1" - 8 NC x 2", loader

8шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

10шт.

4

R28526

FASTENER

- pawl, adjustable

1шт.

5

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

25-104

NUT,1/4"-20, G5

2шт.

8

R28486

GRILLE - head light, dozer

1шт.

8

R28494

GRILLE - head light, loader models

1шт.

9

R28507

SIEVE

GRILLE - radiator, standard

2шт.

10

R28508

GRILLE - radiator, forestry, heavy duty

2шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

13шт.

12

92-8

LOCK WASHER,1/2"

13шт.

13

195-33

WASHER,1/2"

- flat, 1/2"

13шт.

14

R28499

ANGLE - grille mount

1шт.

15

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

16

92-8

LOCK WASHER,1/2"

3шт.

17

R28521

ANGLE

- grille mount, LH

1шт.

18

R28520

ANGLE

- grille mount, RH

1шт.

19

R28496

PLATE - head light mounting

1шт.

20

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

21

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

22

92-8

LOCK WASHER,1/2"

4шт.

23

R28501

BRACE

- X

1шт.

24

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.

26

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

27

R28509

SCREEN - dirt, outside of gille

2шт.

28

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

29

195-33

WASHER,1/2"

- flat, 1/2"

12шт.

30

92-8

LOCK WASHER,1/2"

6шт.

31

25-106

NUT,3/8"-16, G5

- hex, 1/2" - 13 NC

6шт.

32

R28510

SCREEN

- brush, inside of grille

2шт.

33

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

16шт.

34

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

32шт.

35

R20553

WASHER

SPACER - screen

16шт.

36

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self lock, 3/8" - 16 NC

16шт.

37

R28491

SHROUD

- radiator, loader models, Includes: Ref. 38 and 39

1шт.

Some units may require L102515 Latch

1шт.

38

R32540

PLATE

- rub, upper

2шт.

39

R28515

PLATE

- rub, lower

2шт.
