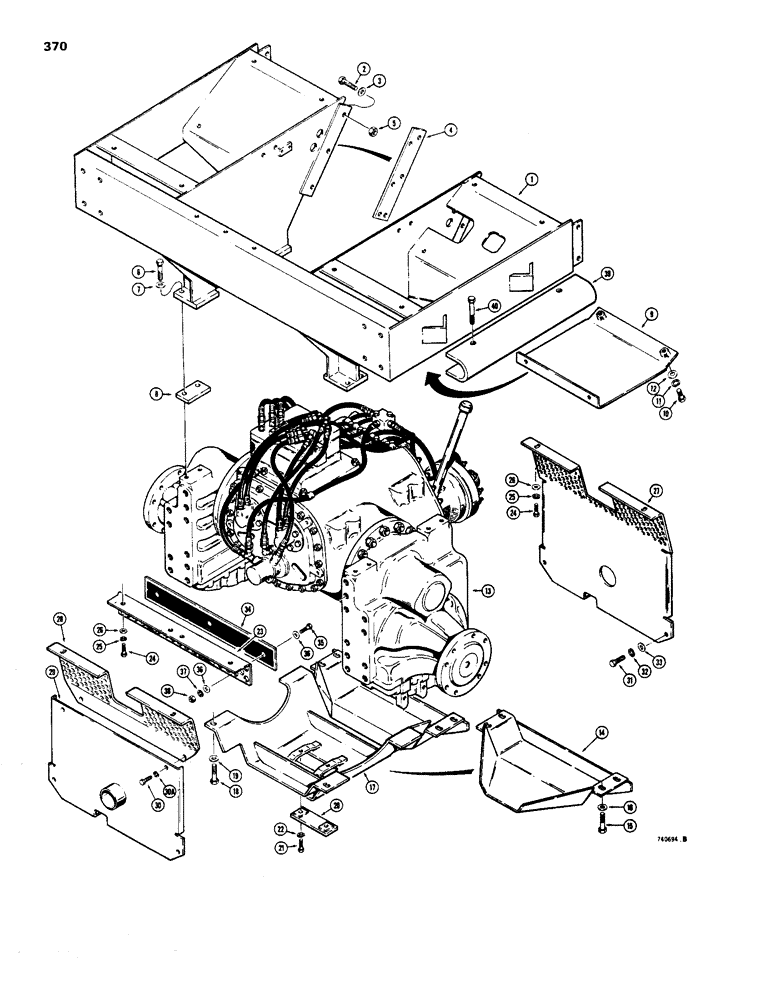

Запчасти Case 1450 (370) - REAR FRAME AND TRANSMISSION GUARDS, LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R28302

FRAME - before tractor sn 8380422 - see Figure 368, service with R34195 frame, R34069 tube and R34071 tube

1шт.

1

R34195

FRAME - before tractor sn 8380422, ref 4 welded on

1шт.

1

R39097

FRAME - before tractor sn 8380422, ref 4 bolted on

1шт.

1

R41036

FRAME ASSY

FRAME - tractor sn 8380422 and after

1шт.

2

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

12шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

24шт.

4

R36471

LARGE PLATE

PLATE - mounting, R36472 frame

2шт.

5

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self lock, 5/8" - 11 NC

12шт.

6

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

HHCS - 3/4" - 10 NC x 2-1/2", grade 8

8шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

8шт.

8

R28317

BLOCK

SPACER - frame

4шт.

9

R29273

GUARD

- tank support, used before tractor sn 8380422

1шт.

9

R40409

GUARD - tank support, tractor sn 8380422 and after

1шт.

10

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

11

92-8

LOCK WASHER,1/2"

8шт.

12

R24718

WASHER

- hardened, 1/2"

8шт.

13

REF

INSTRUCTION

TRANSMISSION - see page 135

1шт.

14

R28141

GUARD - transmission, loader models, without drawbar

1шт.

15

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

16

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special

4шт.

17

R28861

GUARD - transmission, loader drawbar models

1шт.

18

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

19

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special

6шт.

20

R26886

PLATE

- oil drain cover

1шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

R29446

GUARD ASSY.

GUARD - transmission, rear

2шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

25

92-6

LOCK WASHER,3/8"

4шт.

26

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

27

R32719

GUARD

- transmission, ripper models, 1 piece, use R35698, R35676, (2) 13-816 and (2) 192-8 frames

1шт.

28

R35698

GUARD

- upper, transmission, ripper models - 2 piece

1шт.

29

R35676

GUARD

- lower, transmission, ripper models - 2 piece

1шт.

30

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

30a

92-8

LOCK WASHER,1/2"

2шт.

31

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

34

R35517

SCREEN - R29446 guard

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

36

195-28

WASHER,3/8"

- flat, 3/8"

12шт.

37

92-6

LOCK WASHER,3/8"

6шт.

38

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

39

R38865

STAY

STRUT - safety

1шт.

40

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

HHCS - 3/8" - 16 NC x 1"

2шт.
