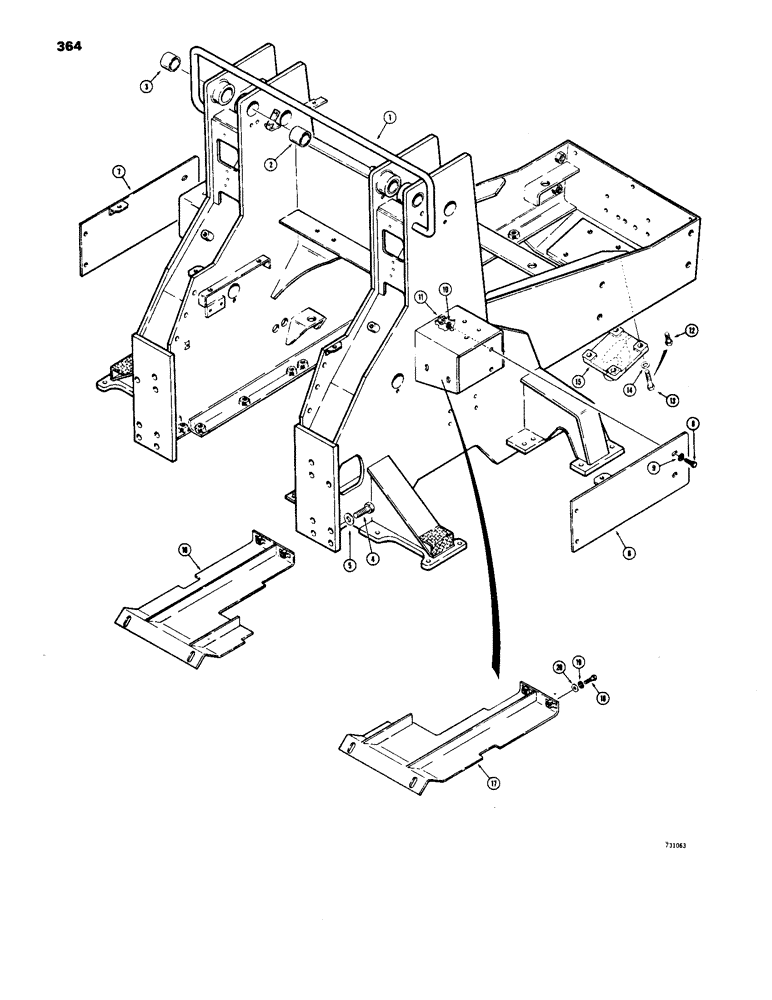

Запчасти Case 1450 (364) - ENGINE AND MAIN FRAME AND PULL HOOK, LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R28072

FRAME - engine and main, before tractor sn 8380422, Includes: Ref. 2 and 3

1шт.

1

R41035

FRAME - engine and main, tractor sn 8380422 and after, Includes: Ref. 2 and 3

1шт.

SMALL CAGE NUTS WELDED TO FRAME CAN BE OBTAINED. CAGE IS PART# D35240, NUT IS 224-28010.

1шт.

2

D53823

BUSHING

- inner

2шт.

3

D40443

BUSHING

- outer

2шт.

4

26-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 8

HHCS - 1" - 8 NC x 2-3/4", grade 8

14шт.

5

D30196

WASHER

- hardened

14шт.

6

R28389

PLATE - side, RH

1шт.

7

R28388

PLATE - side, LH

1шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

9

R24718

WASHER

- hardened, 1/2"

8шт.

10

92-8

LOCK WASHER,1/2"

8шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

12

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

without pull hook Hex, 3/4"-10 x 1 3/4", G5

4шт.

13

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

HHCS - 3/4" - 10 NC x 3-1/4", with pull hook

4шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

15

71671

PLATE ASSY.

HOOK - pull

1шт.

16

R29390

GUARD - hydraulic, LH

1шт.

17

R29391

GUARD - hydraulic, RH

1шт.

18

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

R24718

WASHER

- hardened, 1/2"

4шт.
