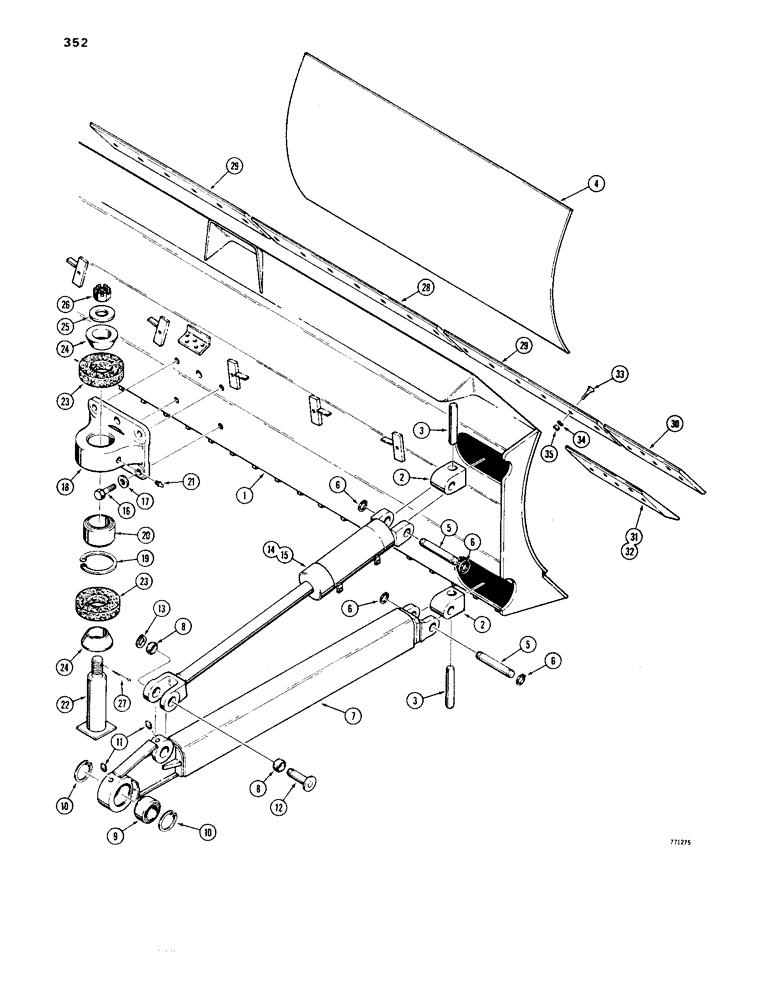

Запчасти Case 1450 (352) - ANGLE TILT PITCH DOZER, DOZER BLADE AND STRUT (09) - CHASSIS/ATTACHMENTS

R37358

BLADE

- with push plate

1шт.

1

R37355

BLADE

- without push plate

1шт.

2

R37089

BRACKET

UNIVERSAL

4шт.

3

R37331

PIN

4шт.

4

R37356

PLATE - push

1шт.

5

D42787

PIN

- strut and cylinder

4шт.

6

D25279

SNAP RING,M35, Int

RING - snap

8шт.

R37174

STRUT

ASSEMBLY - LH, Includes: Ref. 7 - 11

1шт.

R38064

STRUT

ASSEMBLY - RH

1шт.

7

NSS

NOT SOLD SEPARAT

STRUT

1шт.

8

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- each strut

2шт.

9

R26680

SPHERICAL BEARING,63.5mm ID x 100.01mm OD x 55.6mm W

- self-aligning, each strut

1шт.

10

A55435

SNAP RING,3.938", Int, #393

Ring, Snap, 3.938", Int, #393

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

12

R37207

PIN

- cylinder

2шт.

13

D25279

SNAP RING,M35, Int

RING - snap

2шт.

14

G101023

CYLINDER

- tilt, LH, parts list Figure 260

1шт.

15

G101022

CYLINDER

- tilt, RH, parts list Figure 260

1шт.

16

13-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

HHCS - 1" - 8 NC x 3"

4шт.

17

R42671

SHIM

WASHER - hardened (replaced D37732)

4шт.

R37198

BRACKET

- pivot, Includes: Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

19

T38110

SNAP RING,5.00", Int, #500

Ring, Snap, 5.00", Int, #500

1шт.

20

R37037

SPHERICAL BEARING,82.55mm ID x 130.18mm OD x 72.24mm W

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

22

R37269

PIN

- threaded

1шт.

23

R37424

GASKET

2шт.

24

R37252

SPACER

2шт.

25

R37333

WASHER

- special

1шт.

26

25-1228

NUT

- hex, castle, 1-3/4" - 5 NC

1шт.

27

132-161

COTTER PIN,1/4" x 3 1/2"

Pin, Split (Cotter), 1/4" x 3 1/2"

1шт.

28

R37029

EDGE, CUTTING

CUTTING EDGE - center

1шт.

29

R37028

EDGE, CUTTING

CUTTING EDGE

2шт.

30

R37034

EDGE, CUTTING

CUTTING EDGE - end, standard

2шт.

31

R37414

BIT

CUTTING EDGE - end, LH, heavy duty

1шт.

32

R37415

BIT

CUTTING EDGE - end, RH, heavy duty

1шт.

33

19-1240

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 5

BOLT - plow, 3/4" - 10 NC x 2-1/2"

29шт.

34

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

29шт.

35

25-1012

NUT,3/4"-10, G5

29шт.
