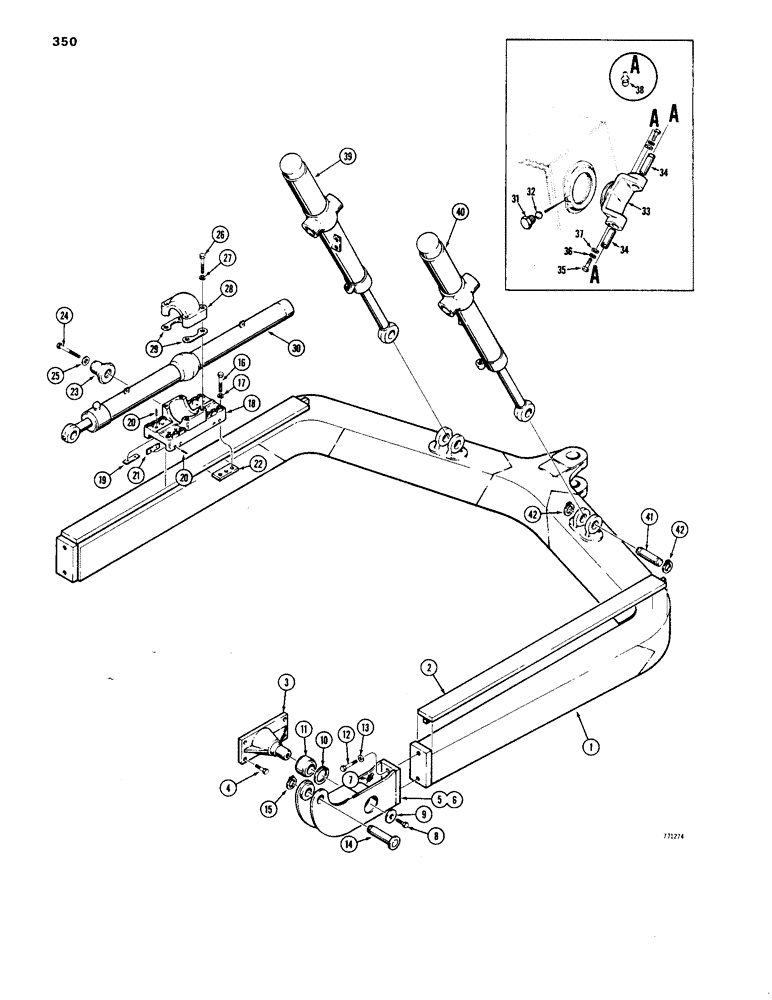

Запчасти Case 1450 (350) - ANGLE TILT PITCH DOZER, FRAME, SLIDE AND TRUNNION (09) - CHASSIS/ATTACHMENTS

1

R37227

FRAME

- push beam, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

RAIL - slide

2шт.

3

R34494

TRUNNION

- push

2шт.

4

13-1636

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5, Full Thd

8шт.

5

R38223

BRACKET - LH

1шт.

6

R38224

BRACKET - RH

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

8

13-1624

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5, Full Thd

2шт.

9

R35127

WASHER

- hardened

2шт.

10

A55435

SNAP RING,3.938", Int, #393

Ring, Snap, 3.938", Int, #393

2шт.

11

R26680

SPHERICAL BEARING,63.5mm ID x 100.01mm OD x 55.6mm W

- self-aligning

2шт.

12

26-1648

BOLT,Hex, 1" - 8 x 3", Gr 8

HHCS - 1" - 8 NC x 3", grade 8

4шт.

13

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

4шт.

14

R37209

PIN

- angle cylinder

2шт.

15

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

16

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

HHCS - 5/8" - 11 NC x 3-3/4", grade 8

24шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

18

R37102

COVER

- slide

2шт.

19

R37196

SHIM,.016" Thk

(.41 mm) .016" Thk

1шт.

20

135-450

GROOVED PIN,5/16" x 1", Type B, Hardened

PIN - taper groove, 1/2" long

32шт.

21

R37185

PLATE ASSY.

PLATE - wear

16шт.

22

R37197

PLATE ASSY.

PLATE - wear

8шт.

23

R42811

PIN

- strut mount

2шт.

24

26-1680

BOLT,Hex, 1" - 8 x 5", Gr 8

HHCS - 1" - 8 NC x 5", grade 8

2шт.

25

R35127

WASHER

- hardened

2шт.

26

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

HHCS - 5/8" - 11 NC x 3-3/4"

8шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

28

R25567

CAP

- slide

2шт.

29

R28387

SHIM,.030" Thk

(.76 mm) .030" Thk

1шт.

29

R42671

SHIM

- .25" (6 mm) thick

1шт.

30

G100970

CYLINDER BLOCK

CYLINDER - angle, parts list Figure 262

2шт.

31

D28481

PLUG

- special

2шт.

32

211-17

BALL,3/4" Dia

- steel

70шт.

33

R28001

TRUNNION

- lift

2шт.

34

R28802

PIN - cylinder

4шт.

35

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

37

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- flat

4шт.

38

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

6шт.

39

G100947

CYLINDER BLOCK

CYLINDER - lift, LH, parts list Figure 256

1шт.

40

G100948

CYLINDER BLOCK

CYLINDER - lift, RH, parts list Figure 256

1шт.

41

R28003

PIN

- lift cylinder

2шт.

42

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

4шт.
