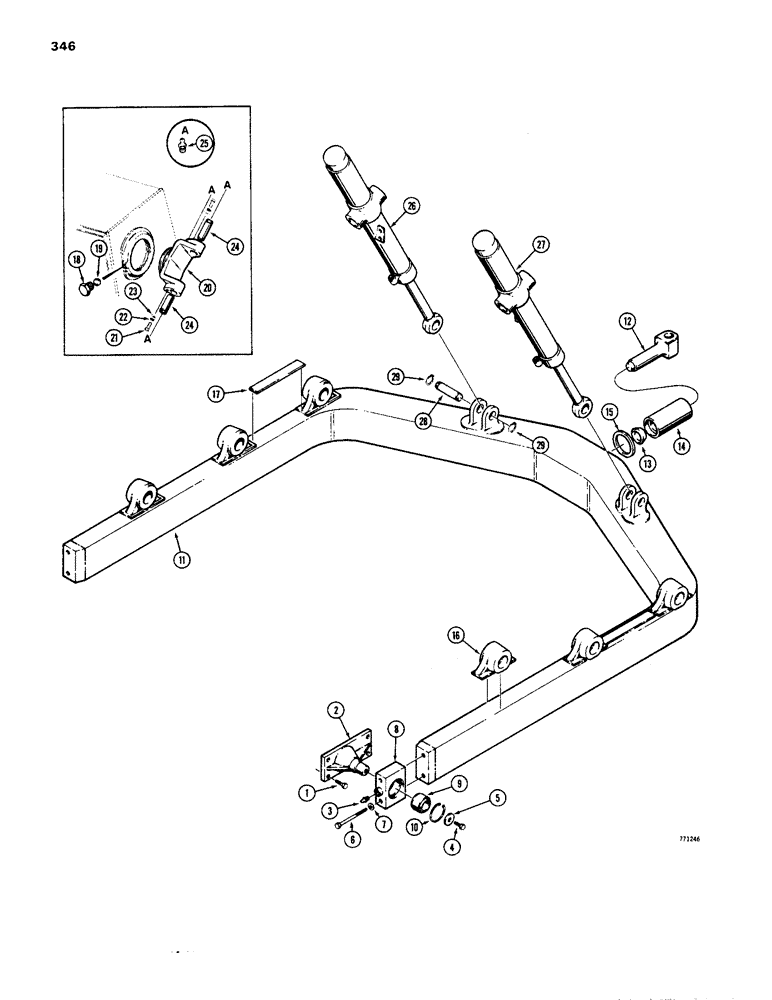

Запчасти Case 1450 (346) - MECHANICAL ANGLE DOZER, C FRAME AND CYLINDER (09) - CHASSIS/ATTACHMENTS

1

13-1636

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5, Full Thd

8шт.

2

R34494

TRUNNION

- push

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

2шт.

4

13-1624

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5, Full Thd

2шт.

5

R35127

WASHER

- hardened

2шт.

6

26-16128

BOLT,Hex, 1" - 8 x 8", Gr 8

HHCS - 1" - 8 NC x 8", grade 8

4шт.

7

D30196

WASHER

- hardened

4шт.

8

R40487

BRACKET

BLOCK - trunnion, Includes: Ref. 9 and 10

2шт.

9

R26680

SPHERICAL BEARING,63.5mm ID x 100.01mm OD x 55.6mm W

- self-aligning

1шт.

10

A55435

SNAP RING,3.938", Int, #393

Ring, Snap, 3.938", Int, #393

1шт.

11

R39047

FRAME - C, Includes: Ref. 12 - 17

1шт.

12

R39177

PIVOT PIN

PIN

1шт.

13

R39174

COLLAR CLAMP

COLLAR - retaining

1шт.

14

R39176

BEARING

1шт.

15

R39175

COLLAR CLAMP

COLLAR

2шт.

16

R39178

BRACKET

6шт.

17

R39181

PLATE

2шт.

18

D28481

PLUG

- special

2шт.

19

211-17

BALL,3/4" Dia

- trunnion retaining

70шт.

20

R28001

TRUNNION

- lift

2шт.

21

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

23

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- flat

4шт.

24

R28002

PIN

- retaining

4шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease, 1/8" NPT

6шт.

26

G34971

CYLINDER

- LH lift, parts list Figure 252

1шт.

27

G34970

CYLINDER

- RH lift, parts list Figure 252

1шт.

28

R28003

PIN

- retaining

2шт.

29

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

4шт.
