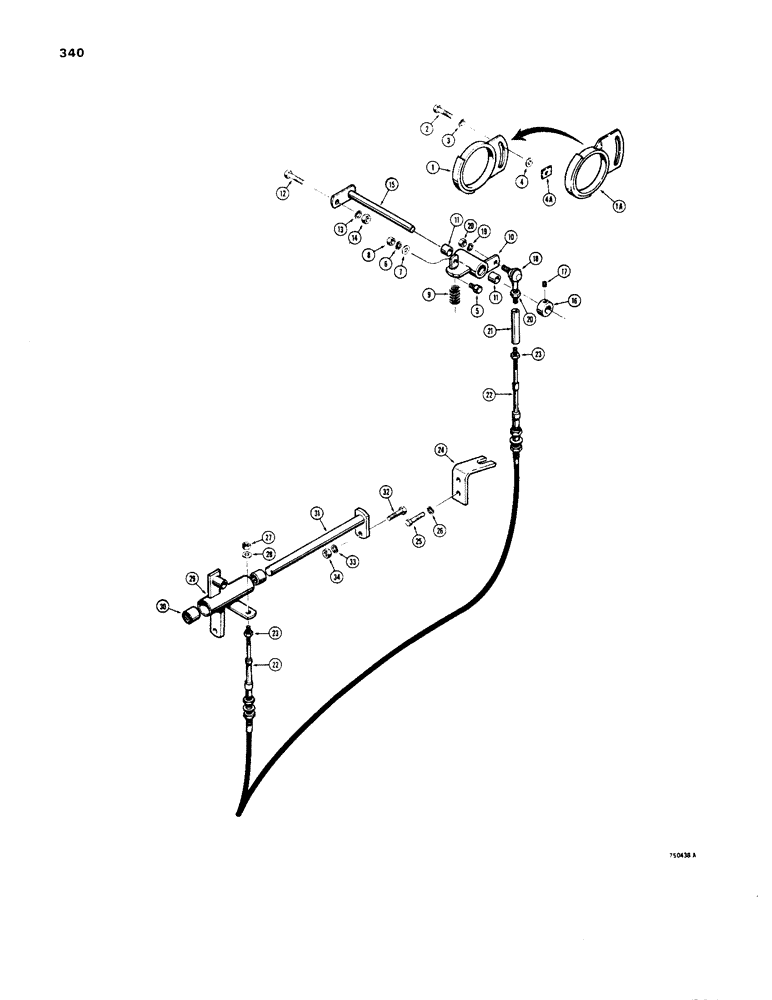

Запчасти Case 1450 (340) - LOADER HEIGHT CONTROL (09) - CHASSIS/ATTACHMENTS

1

R29083

TUBE - height adjustment, see ref 18 figure 333 for identification

1шт.

1a

R35650

TUBE - height adjustment, see ref 18 figure 333 for identification used before tractor sn 8380101

1шт.

1a

R40714

TUBE

- height adjustment, used tractor sn 8380101 and after

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

R35650 and R40714 tubes Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

R29083 tube Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

3

92-8

LOCK WASHER,1/2"

1шт.

4

195-33

WASHER,1/2"

- flat, (1) with R29083, (7) with R35650, (6) with R40709 1/2"

1-7шт.

4a

R40709

PLATE

- used with R40714

1шт.

5

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

FOLLOWER - cam

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

8

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

9

R27874

SPRING

- height, actuator

1шт.

10

R32127

BEARING

LEVER - actuating, Includes: Ref. 11

1шт.

11

R27370

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"

BEARING - lever

2шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

15

R29103

TUBE

- lever mounting

1шт.

16

D43620

COLLAR

- locking

1шт.

17

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

18

R27899

BALL

JOINT - 1/4" - 18 NF

1шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF

2шт.

21

R29087

CONNECTOR, ELEC

CONNECTOR - cable

1шт.

22

R28833

CABLE

- height control, Includes: Ref. 23

1шт.

23

129-27

NUT,Hex, #10 - 32

- hex, no. 10-32 NF

2шт.

24

R29086

BRACKET

- cable retaining

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

129-27

NUT,Hex, #10 - 32

- hex, no. 10-32 NF

1шт.

28

195-12

WASHER,#10

- flat, 3/16"

1шт.

29

R29043

ROCKER

ARM - height control, see Figure 270 for connecting parts, Includes: Ref. 30

1шт.

30

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BUSHING - needle

2шт.

31

R29047

SHAFT

- rocker arm

1шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
