Заказать запчасти

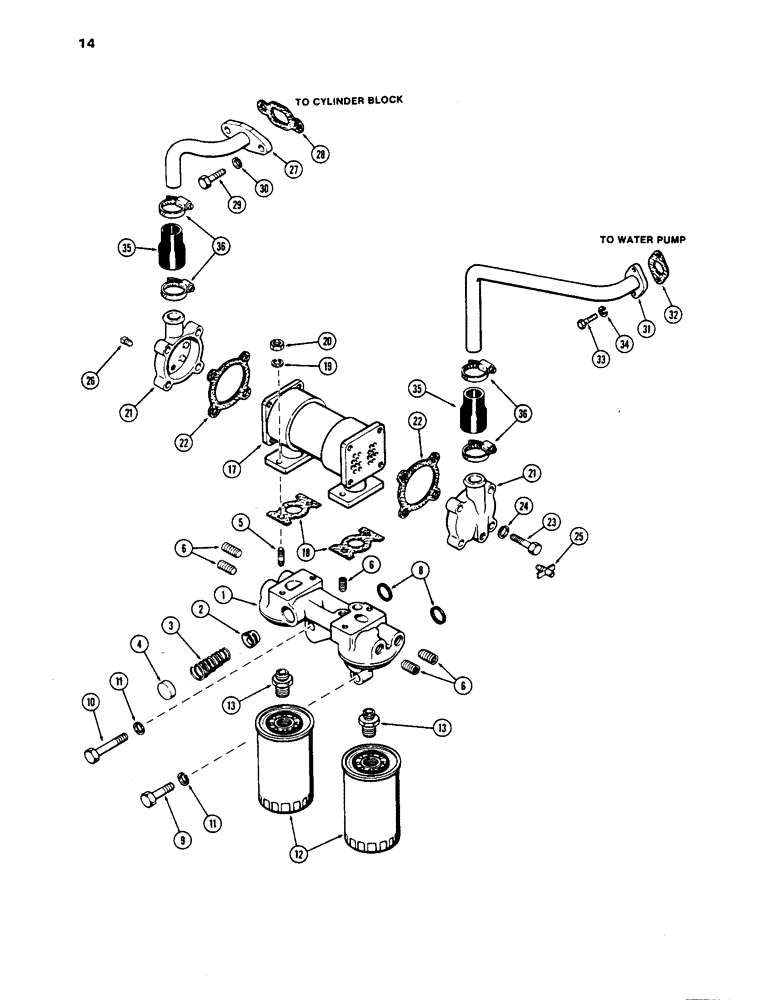

Запчасти Case 1450 (014) - OIL FILTER AND COOLER, 504BDT DIESEL ENGINE, 1ST USED ENGINE SN 10095016 (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A64107
BASE
ASSY - oil filter, Includes: Ref. 2 - 6
1шт.
3
A58669
SPRING
- relief valve
1шт.
4
41-1020
PLUG,Cup, 1 1/4"
- 1-1/4" cup type
1шт.
5
G102128
BOLT
- heat exchanger to base (3/8" NC x 4-1/2")
4шт.
6
221-844
PLUG,Hex Soc, 1/2"-14
- 1/2" PT, square socket head
5шт.
8
A64434
O-RING,0.93" ID x 1.142" x 0.106"
- base to block (15/16 x 1-1/8 x 3/32")
2шт.
9
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
Base Hex, 1/2"-13 x 2", G5
1шт.
10
13-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
- base (1/2 x 3" NC hex)
1шт.
11
195-33
WASHER,1/2"
- 1/2 x 1-1/16" x 13 gauge
2шт.
12
A75294
ENGINE OIL FILTER
ELEMENT - oil filter
2шт.
12a
A44081
ENGINE OIL FILTER
element, for use after 20 hours for higher capacity
1шт.
13
A63916
ADAPTER
-, Serial Range: filter-base
2шт.
17
A63917
COOLER
HEAT EXCHANGER - oil
1шт.
18
A65359
GASKET
- heat exchanger to filter base
2шт.
19
92-6
LOCK WASHER,3/8"
4шт.
20
25-106
NUT,3/8"-16, G5
- 3/8" NC hex
4шт.
21
A64349
HOOD
BONNET - heat exchanger end cover
2шт.
22
A63920
GASKET
- bonnet
2шт.
23
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- bonnet to heat exchanger (3/8 x 1-1/2" NC hex)
8шт.
24
92-6
LOCK WASHER,3/8"
8шт.
25
217-107
VALVE
DRAINCOCK - heat exchanger
1шт.
26
221-11
PLUG,Sq Hd, 1/8"-27
- 1/8" PT square head
1шт.
27
A64350
TUBE
- heat, Serial Range: exchanger-block
1шт.
28
A58670
GASKET
- tube
1шт.
29
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
- tube to block (1/2 x 2-1/4" NC hex)
2шт.
30
92-8
LOCK WASHER,1/2"
2шт.
31
A66714
TUBE
- heat exchanger to water pump
1шт.
32
A58680
OIL PAN GASKET SET
- tube
1шт.
33
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Tube to water pump Hex, 5/16"-18 x 1", G5, Full Thd
2шт.
34
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
35
A64353
HOSE
- bonnets to water tubes
2шт.
36
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose (1-3/16" to 1-3/4")
2шт.
Выбрано товаров: 33
