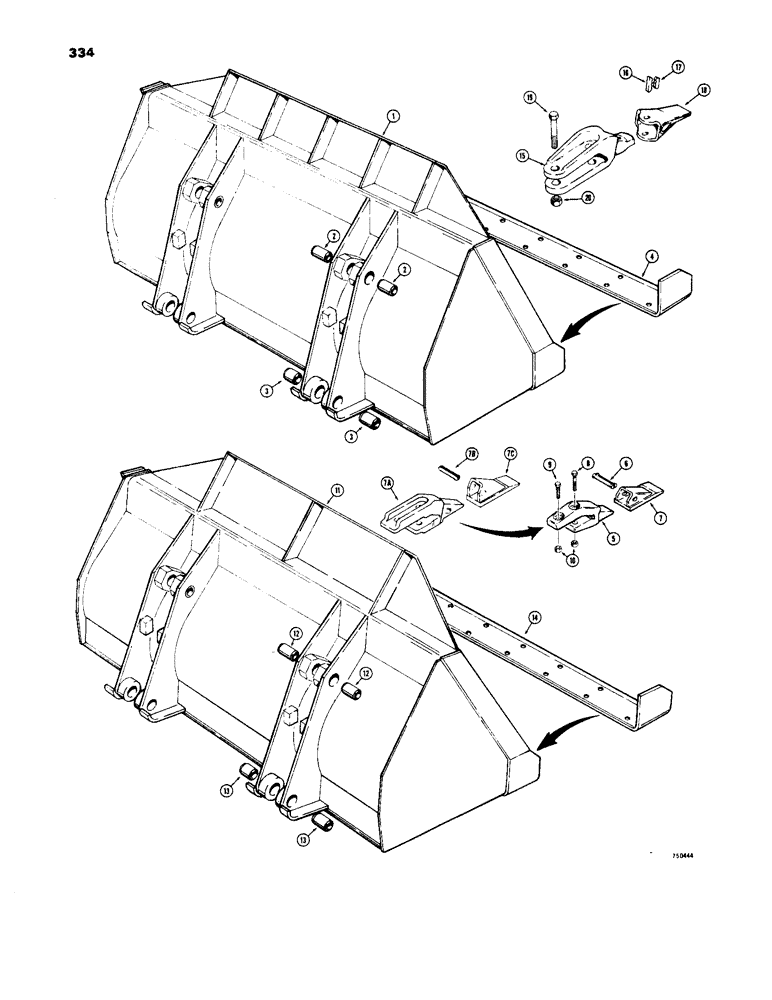

Запчасти Case 1450 (334) - LOADER BUCKET, 2-1/4" CUBIC YARD BUCKET (1.452 CUBIC METER) (09) - CHASSIS/ATTACHMENTS

1

R28155

BUCKET ASSEMBLY - complete, machinery item, Includes: Ref. 2 - 4

1шт.

2

D53823

BUSHING

- bucket, upper

4шт.

3

R28235

BUSHING

- bucket, lower

4шт.

4

R28276

BLADE

EDGE - cutting

1шт.

R29118

BUCKET TOOTH

TOOTH ASSEMBLY - bucket, use R35260 for service, Includes: Ref. 5 - 7

8шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth, standard bucket

1шт.

6

R29121

PIN

FLEX PIN - tooth, standard bucket

1шт.

7

R31212

POINT

- tooth, standard bucket

1шт.

R35260

TOOTH

ASSEMBLY - bucket, standard, Includes: Ref. 7A - 7C

8шт.

7a

R35254

SHANK - tooth (replaced NSS), standard bucket

1шт.

7b

L32090

PIN

FLEX PIN - tooth, standard

1шт.

7c

L32089

POINT

- tooth, standard bucket

1шт.

8

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

HHCS - 3/4" - 10 NC x 3-3/4", R29118 tooth assembly, standard bucket

8шт.

8

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

R35260 tooth assembly, standard bucket Hex, 3/4"-10 x 3 1/4", G5

8шт.

9

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

Standard bucket teeth Hex, 3/4"-10 x 2 3/4", G5

8шт.

10

25-1012

NUT,3/4"-10, G5

Standard bucket teeth 3/4"-10, G5

16шт.

11

R29425

BUCKET ASSEMBLY - complete, machinery item, 2-1/2" cubic yard bucket (1.613 cubic meter), Includes: Ref. 12 - 14

1шт.

12

D53823

BUSHING

- bucket, upper, 2-1/2" cubic yard (1.613 cubic meter)

4шт.

13

R28235

BUSHING

- bucket, lower, 2-1/2" cubic yard (1.613 cubic meter)

4шт.

14

R28276

BLADE

EDGE - cutting, 2-1/2" cubic yard bucket (1.613 cubic meter)

1шт.

R31774

TOOTH

ASSEMBLY - bucket, 2-1/2" cubic yard (1.613 cubic meter), Includes: Ref. 15 - 18

8шт.

15

NSS

NOT SOLD SEPARAT

SHANK - tooth, heavy duty bucket

1шт.

16

R31916

PIN

- tooth, heavy duty bucket

1шт.

17

R31917

KEY

LOCK - pin, heavy duty bucket teeth

1шт.

18

R31915

POINT

- tooth, heavy duty bucket

1шт.

19

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

Heavy duty bucket teeth Hex, 3/4"-10 x 3 1/4", G5

16шт.

20

25-1012

NUT,3/4"-10, G5

Heavy duty bucket teeth 3/4"-10, G5

16шт.
