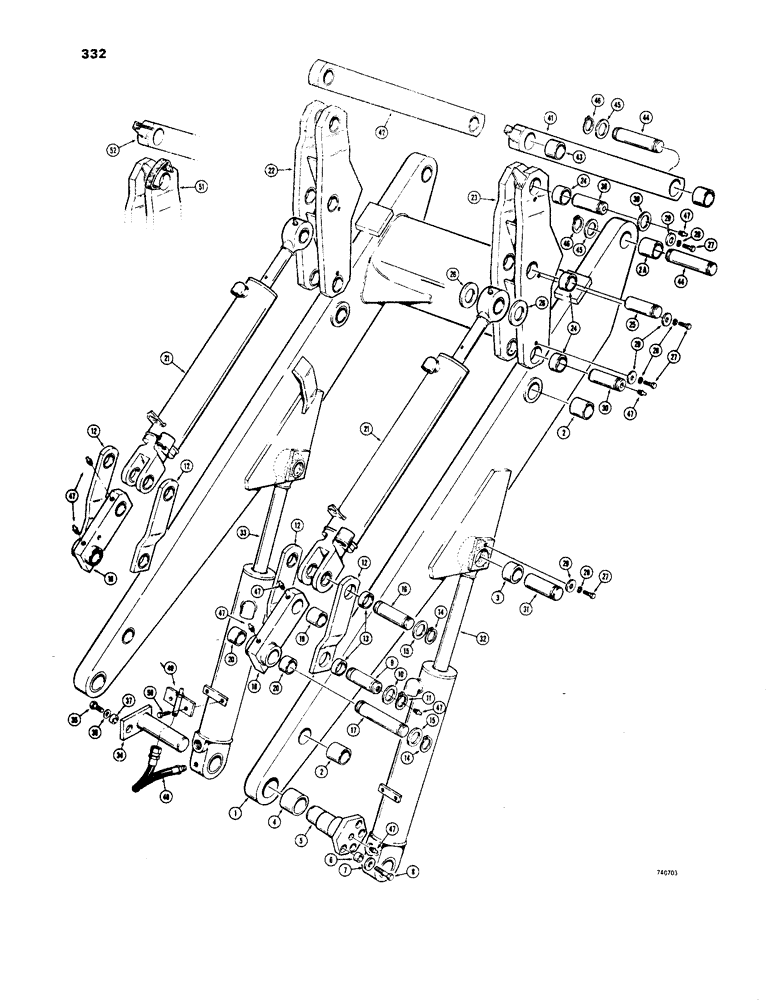

Запчасти Case 1450 (332) - LOADER MECHANICAL PARTS (09) - CHASSIS/ATTACHMENTS

1

R39014

ARM ASSY.

FRAME - loader lift arm, Includes: Ref. 2 - 4

1шт.

2

D52580

BUSHING

- dump lever pivot

4шт.

2a

D53823

BUSHING

- bucket pivot

2шт.

3

R28252

BUSHING

- lift cylinder pivot

4шт.

4

R28251

BUSHING

- frame pivot

2шт.

5

R28196

PIN

- hinge, at loader frame

2шт.

6

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

SPACER - pin

2шт.

7

D31328

WASHER

- special

2шт.

8

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

2шт.

9

R32121

PIN

- link to lift arm

2шт.

10

L47706

WASHER

- special

4шт.

11

F40807

SNAP RING,#225, Ext

Ring, Snap, #225, Ext

4шт.

12

R28246

LINK

- dump cylinder to lift arm, Includes: Ref. 13

4шт.

13

R28247

BUSHING

- link

2шт.

14

F40807

SNAP RING,#225, Ext

Ring, Snap, #225, Ext

8шт.

15

L47706

WASHER

- special

8шт.

16

R28285

PIN

- bucket, Serial Range: cylinder-links

2шт.

17

R28282

AXLE PIN

PIN - leveling, Serial Range: link-frame

2шт.

18

R28249

LINK

- leveling, used with R29083, ref 1 Figure 340, Includes: Ref. 19 and 20

2шт.

18

R35652

LINK

- LH and RH before tractor sn 8380101, used with R35650 ref 1A figure 340, LH only tractor sn 8380101 and after, Includes: Ref. 19 and 20

1-2шт.

18

R40711

DRAG LINK

LINK - RH, tractor sn 8380101 and after, Includes: Ref. 19 and 20

1шт.

19

R28247

BUSHING

- 2" (51 mm) x 2-1/4" (57 mm) ID

2шт.

20

D52580

BUSHING

- 1-1/2" (38 mm) x 2-1/4" (86 mm) ID

2шт.

21

G34520

CYLINDER

- bucket, parts list Figure 248

2шт.

22

R28242

LEVER

- bucket dump, LH, Includes: Ref. 24

1шт.

23

R28243

LEVER

- bucket dump, RH, Includes: Ref. 24

1шт.

24

D52579

BUSHING,57.38mm ID x 69.85mm OD x 28.57mm L

- R28242 and R28243 levers

6шт.

25

R28279

PIN

- bucket, Serial Range: cylinder-lever

2шт.

26

F62081

BUSHING

WASHER - special, spacer

4шт.

27

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

28

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

29

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, retaining

8шт.

30

R32029

PIN

- bucket, Serial Range: lever-arm

2шт.

31

R28278

PIN

- lift, Serial Range: cylinder-arm

2шт.

32

G34510

CYLINDER

- RH lift, parts list Figure 246

1шт.

33

G34511

CYLINDER

- LH, parts list Figure 246

1шт.

34

R30207

PIN

- lift, Serial Range: cylinder-frame

2шт.

35

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

36

D31328

WASHER

- special

2шт.

37

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

SPACER - pin

2шт.

38

R32028

PIN

- lever to bucket links

2шт.

39

F62081

BUSHING

WASHER - special

4шт.

41

R28188

LINK

- bucket dump, RH, Includes: Ref. 43

1шт.

42

R28186

LINK

- bucket dump, LH, Includes: Ref. 43

1шт.

43

L45223

BUSHING

- R28186 and R28188 links

2шт.

44

R34482

PIN

- bucket to arm and links

4шт.

45

L47706

WASHER

- special

8шт.

46

F40807

SNAP RING,#225, Ext

Ring, Snap, #225, Ext

8шт.

47

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

12шт.

48

R32507

HOSE

- grease, 17" (422 mm) long

2шт.

49

R32508

BRACKET

- hose

2шт.

50

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

51

R27638

INDICATOR

- 4-in-1 bucket position

1шт.

52

D51707

PIN

POINTER - 4-in-1 bucket position

1шт.
