Запчасти Case 1450 (328) - RELIEF VALVES AND ANTICAVITATION ASSEMBLIES, D66197 RELIEF VALVE (08) - HYDRAULICS

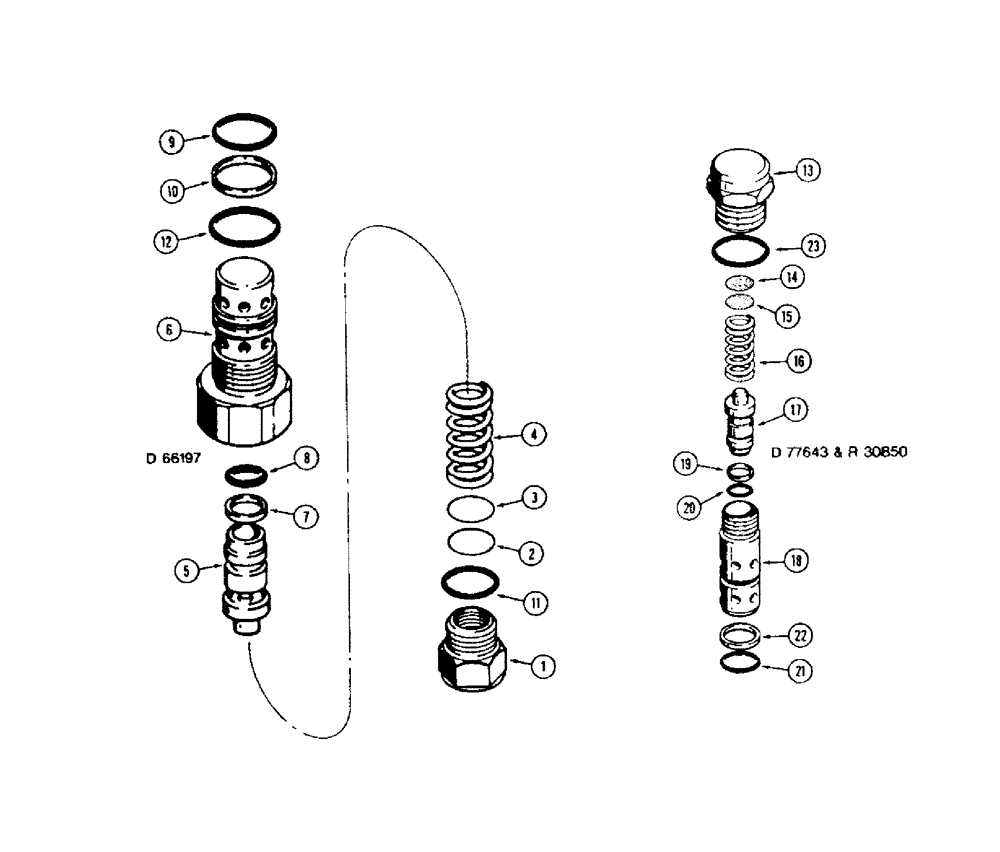

Схема запчастей Case 1450 - (328) - RELIEF VALVES AND ANTICAVITATION ASSEMBLIES, D66197 RELIEF VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

D66197

VALVE

- relief, Includes: Ref. 1 - 12

1шт.

1

D66201

BODY - relief, outer

1шт.

2

D66199

SHIM,.010" Thk

(.254 mm) .010" Thk

1шт.

3

D66199

SHIM,.010" Thk

(.254 mm) .010" Thk

1шт.

4

D66203

SPRING

- relief

1шт.

5

D66202

SPOOL

POPPET - relief

1шт.

6

D66200

BODY

- relief, inner

1шт.

7

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

WASHER - backup, inner

1шт.

8

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

- outer

1шт.

9

A141835

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

- inner

1шт.

10

D66198

RING

WASHER - backup

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

D77643

VALVE

- relief, D77643 & R30850, Includes: Ref. 13 - 23

1шт.

D66197

VALVE

- relief, D77643 & R30850, Includes: Ref. 13 - 23

1шт.

13

R30984

BODY - relief, upper, D77643 & R30850 valve

1шт.

14

R30986

SHIM,.010" Thk

(.254 mm), D77643 & R30850 relief valve .010" Thk

1шт.

15

R30987

SHIM,.030" Thk

(.762 mm), D77643 & R30850 relief valve .030" Thk

1шт.

16

R30988

SPRING

- D77643 & R30850 relief valve

1шт.

17

R30985

HOOK

POPPET - relief, D77643 & R30850 relief valve

1шт.

18

D55935

HOUSING

BODY - lower, D77643 & R30850 relief valve

1шт.

R31000

SEAL KIT

KIT - D77643 & R30850 relief valve, Includes: Ref. 19 - 23

1шт.

19

W12244

RING

WASHER - backup, D77643 & R30850 relief valvep, inner

1шт.

20

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Inner, D77643 & R30850 relief valve

1шт.

21

A65918

O-RING,0.551" ID x 0.691" OD

- outer, D77643 & R30850 relief valve

1шт.

22

D56904

BACK-UP RING

WASHER - backup, outer, D77643 & R30850 relief valve

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- D77643 & R30850 relief valve

1шт.

Выбрано товаров: 27
