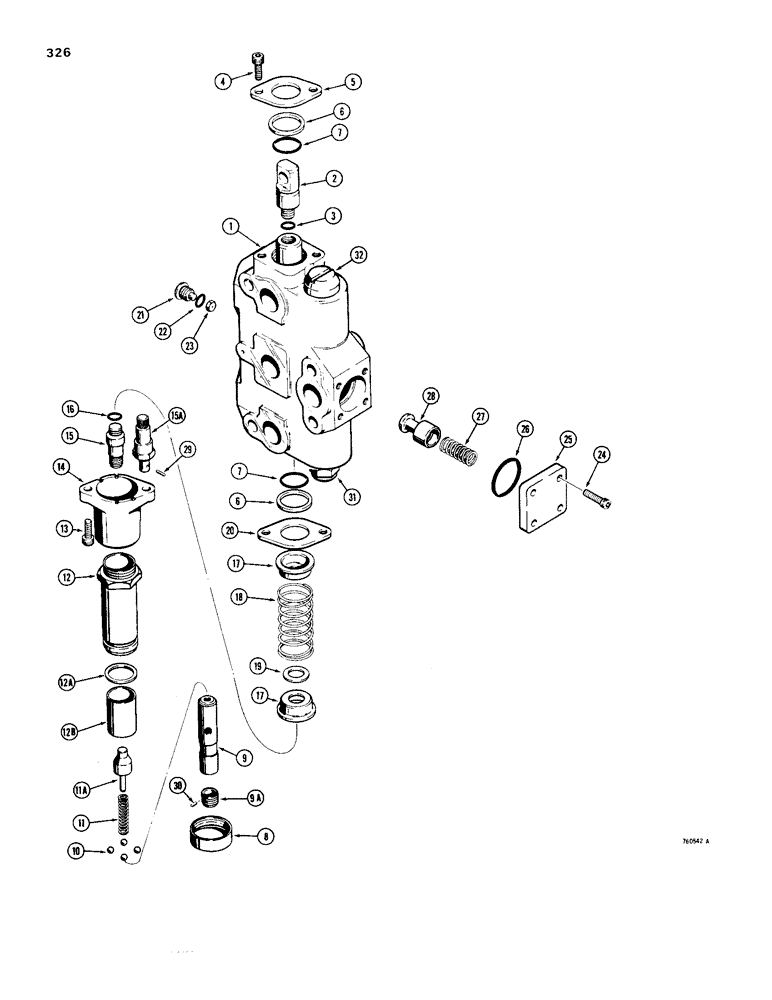

Запчасти Case 1450 (326) - D77549 AND D80332 LOADER LIFT SECTION, PLASTIC CAP ON SPOOL DETENT (08) - HYDRAULICS

D77549

ELEMENT

LIFT SECTION - 6" (152 mm) thick, Includes: Ref. 1 - 32

1шт.

If you are replacing section D77549 complete, identify the control valve assembly in which section D77549 is used, figures 300 to 310. See the information on these figures for ordering individual sections.

1шт.

D80332

VALVE

LIFT SECTION - 6-13/16" (173 mm) thick, Includes: Ref. 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

R30844

CONNECTOR, ELEC

EYE - spool, connector, Includes: Ref. 3

1шт.

3

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

4

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - hex socket head, 1/4" - 20 NC x 1/2"

2шт.

5

R30862

SPACER

- cap

1шт.

6

D54585

WASHER

RETAINER - seal, spool

2шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

8

D77637

DUST CAP

CAP

1шт.

9

D77633

RETAINER

SLEEVE - detent, D77549 section

1шт.

9

D80362

SLEEVE VALVE

SLEEVE - detent, D80364 section

1шт.

9a

D77641

ADJUSTMENT SCREW

RETAINER - detent

1шт.

10

211-357

BALL,1/4" Dia

- steel

4шт.

11

D77639

SPRING

- detent

1шт.

11a

D77632

PLUNGER

1шт.

12

D77635

CYLINDER END CAP

CAP - detent

1шт.

12a

D77642

WASHER

1шт.

12b

D77631

SLEEVE CYLINDER

SLEEVE - float detent

1шт.

13

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- hex socket head, 1/4" - 20 NC x 3/4"

2шт.

14

R30974

CAP

- spool end

1шт.

15

D77630

SCREW - D77549 section, Includes: Ref. 16

1шт.

16

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, D77630 screw

1шт.

16a

D80360

SCREW

- D80364 section

1шт.

17

R30856

COLLAR

- spring, retaining

2шт.

18

R30861

SPRING

- centering, spool

1шт.

19

R30863

BUSHING

SPACER - spool travel, D77549 section

1шт.

19

D80361

SPACER

- spool travel, D80364 section

1шт.

20

R30857

SPACER

- cap

1шт.

21

R30847

PLUG

- load response, Includes: Ref. 22

1шт.

22

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

23

R31053

PLATE

- orifice

1шт.

24

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - hex socket head, 5/16" - 18 NC x 1"

4шт.

25

D70588

PLATE ASSY.

PLATE - load check

1шт.

26

D70589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

27

D77636

VALVE SPRING

SPRING - load check

1шт.

28

D77634

SPOOL

POPPET - load check

1шт.

29

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

30

D80363

AXLE PIN

PIN - nylon

1шт.

31

R30849

VALVE

ANTICAVITATION ASSEMBLY - parts list Figure 328

1шт.

32

D77640

VALVE

- relief, parts list Figure 330

1шт.
