Запчасти Case 1450 (324) - R31140 LOADER LIFT SECTION (08) - HYDRAULICS

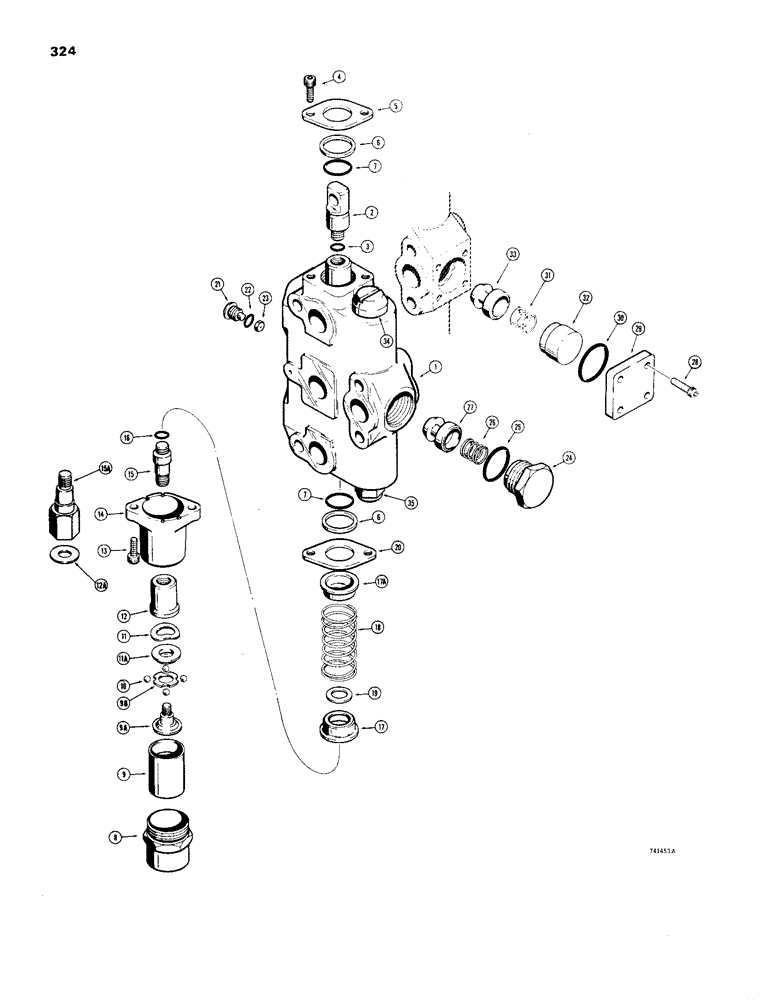

Схема запчастей Case 1450 - (324) - R31140 LOADER LIFT SECTION (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

R31140

LIFT SECTION - complete, 6" (152 mm) thick, Includes: Ref. 1 - 35

1шт.

If you are replacing section R31140 complete, identify the control valve in which section R31140 is used, Figures 300 to 309A. See the information on these pages for ordering individual sections.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

R30844

CONNECTOR, ELEC

EYE - spool, connector, Includes: Ref. 3

1шт.

3

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

4

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - hex socket head, 1/4" - 20 NC x 1/2"

2шт.

5

R30862

SPACER

PLATE - end, spacer

1шт.

6

D54585

WASHER

RETAINER - seal, spool

2шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

8

R30865

CYLINDER END CAP

CAP - detent

1шт.

9

D66195

SLEEVE

- detent (replaced D65195)

1шт.

9a

D65208

RETAINER

- detent, used with 12 and 15

1шт.

Replaced in sets. Use P/N's D74526, D74524 and D74525.

1шт.

9a

D74526

RETAINER

- detent, used with 12A and 15

1шт.

9b

D65206

RETAINER

- ball

1шт.

10

211-355

BALL

- steel

4шт.

11

D66196

VALVE SPRING

SPRING - detent

2шт.

11a

D65204

WASHER

- retainer

1шт.

12

D65205

RETAINER

- detent

1шт.

Replaced in sets. Use P/N's D74526, D74524 and D74525.

1шт.

12a

D74524

SHIM

WASHER - flat

1шт.

13

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- hex socket head, 1/4" - 20 NC x 3/4"

2шт.

14

R30974

CAP

- spool end

1шт.

15

R30848

SCREW

- special

1шт.

Replaced in sets. Use P/N's D74526, D74524 and D74525.

1шт.

15a

D74525

SCREW

- special, Includes: Ref. 16

1шт.

16

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, R30848 and D74525 screws

1шт.

17

R30856

COLLAR

- spring retaining, outer

1шт.

17a

R24872

SPRING SEAT

COLLAR - spring retaining, inner

1шт.

18

R30861

SPRING

- centering, spool

1шт.

19

R30863

BUSHING

SPACER - spool travel

1шт.

20

R30857

SPACER

- cap

1шт.

21

R30847

PLUG

- load response, Includes: Ref. 22

1шт.

22

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

23

R31053

PLATE

- orifice

1шт.

D66452

CHECK VALVE

CHECK ASSEMBLY - load, Includes: Ref. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

25

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

1шт.

26

R30860

SPRING

- load check

1шт.

27

R30858

SPOOL

POPPET - load check

1шт.

28

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - hex socket head, 5/16" - 18 NC x 1"

4шт.

29

D70588

PLATE ASSY.

PLATE - load check

1шт.

30

D70589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

R36357

VALVE

KIT - load check, Includes: Ref. 31 - 33

1шт.

31

R30860

SPRING

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

33

NSS

NOT SOLD SEPARAT

POPPET

1шт.

34

R30849

VALVE

ANTICAVITATION ASSEMBLY - parts list Figure 328

1шт.

35

D66197

VALVE

- relief, parts list Figure 328

1шт.
