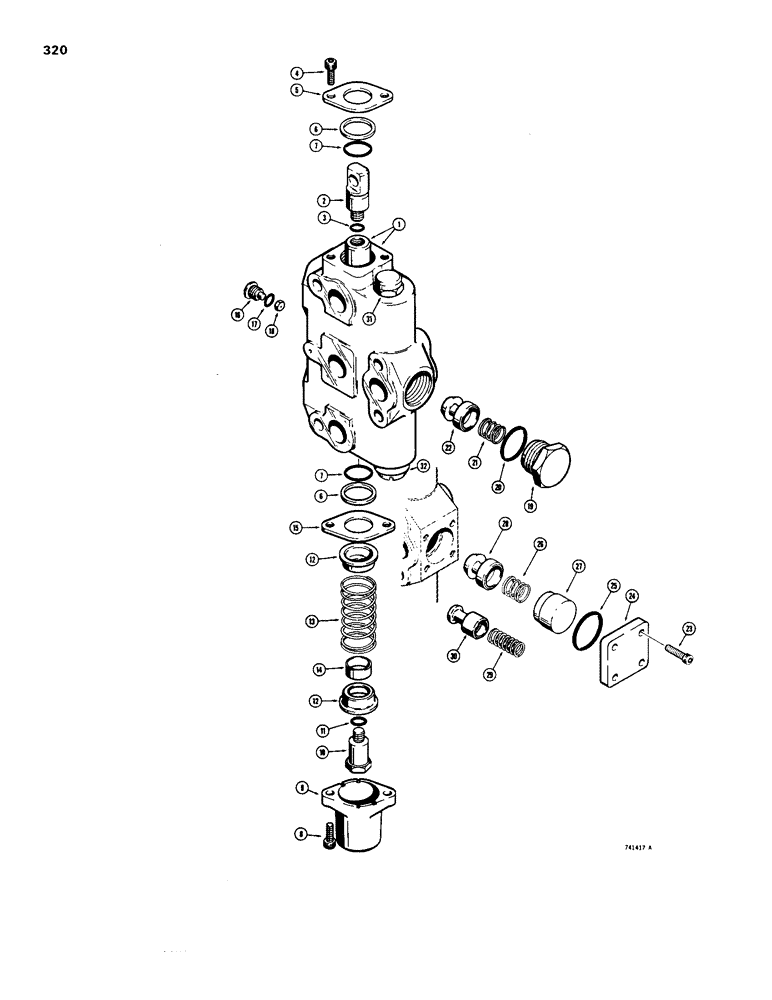

Запчасти Case 1450 (320) - DUAL PULL BEHIND, RIPPER, BUCKET OR AUXILIARY SECTION R33511, R38246, R40790 SECTION (08) - HYDRAULICS

R33511

VALVE BLOCK

DUAL PULL BEHIND, RIPPER, BUCKET OR AUXILIARY SECTION - 6" (152 mm) thick, Includes: Ref. 1 - 32

1шт.

If you are replacing section R38246 or R33511 complete, identify the control valve assembly in which section R38246 or R33511 is used, pages 291 to 311. See the information on these pages for ordering individual sections.

1шт.

R38246

HYD VALVE SECTION

DUAL PULL BEHIND, RIPPER, BUCKET OR AUXILIARY SECTION - 6" (152 mm) thick, Includes: Ref. 1 - 32

1шт.

If you are replacing section R38246 or R33511 complete, identify the control valve assembly in which section R38246 or R33511 is used, pages 291 to 311. See the information on these pages for ordering individual sections.

1шт.

R40790

SEGMENT

DUAL PULL BEHIND, RIPPER, BUCKET OR AUXILIARY SECTION - 6-13/16" (173 mm) thick, Includes: Ref. 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

R30844

CONNECTOR, ELEC

END - spool, connector, Includes: Ref. 3

1шт.

3

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

4

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - hex socket head, 1/4" - 20 NC x 1/2"

2шт.

5

R30862

SPACER

PLATE - end, spacer

1шт.

6

D54585

WASHER

RETAINER - seal, spool

2шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

8

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- hex socket head, 1/4" - 20 NC x 3/4"

2шт.

9

R30859

CAP

- spool end

1шт.

10

R30845

SCREW

BOLT - special, Includes: Ref. 11

1шт.

11

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

12

R30856

COLLAR

- spring retaining

2шт.

13

R30861

SPRING

- spool return

1шт.

14

R30855

BUSHING

SPACER - spool travel

1шт.

15

R30857

SPACER

- cap

1шт.

16

R30847

PLUG

- load response, Includes: Ref. 17

1шт.

17

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

18

R31053

PLATE

- orifice

1шт.

D66452

CHECK VALVE

CHECK ASSEMBLY - load, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

20

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

1шт.

21

R30860

SPRING

- load check

1шт.

22

R30858

SPOOL

POPPET - load check

1шт.

23

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - hex socket head, 5/16" - 10 NC x 1"

4шт.

24

D70588

PLATE ASSY.

PLATE - load check

1шт.

25

D70589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

R36357

VALVE

KIT - load check, R33511 section, Includes: Ref. 26 - 28

1шт.

26

R30860

SPRING

- poppet

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE - poppet

1шт.

28

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

29

D77636

VALVE SPRING

SPRING - load check, R38246 and R40790 sections

1шт.

30

D77634

SPOOL

POPPET - load check, R38246 and R40790 sections

1шт.

31

R30850

VALVE PRESSURE RELIE

VALVE - relief, R33511 section, parts list Figure 328

1шт.

For identification, R33511 section has Ref. 19.

1шт.

31

D77643

VALVE

- relief, R38246 and R40790 section, parts list Figure 328

1шт.

For identification, R38246 and R40790 sections have a Ref. 24.

1шт.

32

D65200

FILTER

ANTICAVITATION ASSEMBLY - parts list Figure 328

1шт.

For identification, R38246 and R40790 sections have a Ref. 24.

1шт.
