Запчасти Case 1450 (318) - D80365, D75922 AND R30838 DOZER TILT OR ANGLE, AND PITCH SECTION (08) - HYDRAULICS

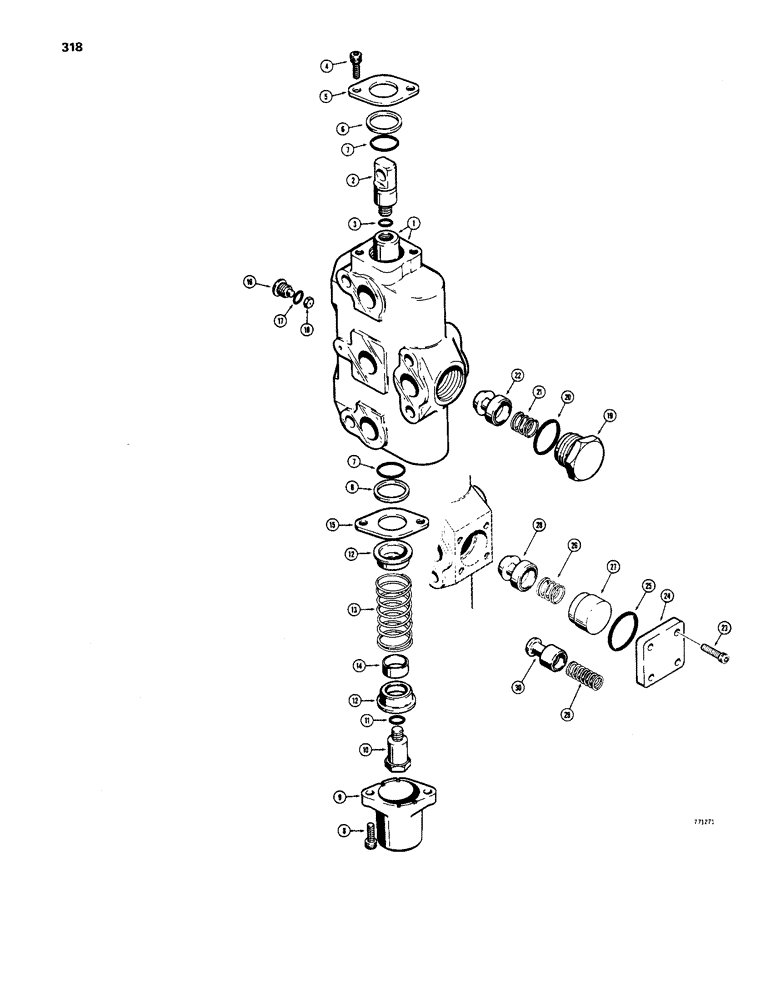

Схема запчастей Case 1450 - (318) - D80365, D75922 AND R30838 DOZER TILT OR ANGLE, AND PITCH SECTION (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

D75922

NO LONGER SERVICED

TILT OR ANGLE AND PITCH SECTION - valve, 6" (152 mm) thick, Includes: Ref. 1 - 30

1шт.

If you are replacing section D75922 or R30838 complete, order (1) D80365 section, (1) R40326 tube and (1) R40324 tube.

1шт.

D80365

VALVE

TILT OR ANGLE AND PITCH SECTION - valve, 6-13/16" (173 mm) thick, Includes: Ref. 1 - 30

1шт.

R30838

HYD VALVE SECTION

TILT OR ANGLE AND PITCH SECTION - valve, 6" (152 mm) thick, Includes: Ref. 1 - 30

1шт.

If you are replacing section D75922 or R30838 complete, order (1) D80365 section, (1) R40326 tube and (1) R40324 tube.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

R30844

CONNECTOR, ELEC

END - spool, connector, Includes: Ref. 3

1шт.

3

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

4

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - hex socket head, 1/4" - 20 NC x 1/2"

2шт.

5

R30862

SPACER

PLATE - end, spacer

1шт.

6

D54585

WASHER

RETAINER - seal, spool

2шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

8

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- hex socket head, 1/4" - 20 NC x 3/4"

2шт.

9

R30859

CAP

- spool, end

1шт.

10

R30845

SCREW

BOLT - special, Includes: Ref. 11

1шт.

11

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

12

R30856

COLLAR

- spring retaining

2шт.

13

R30861

SPRING

- centering

1шт.

14

R30855

BUSHING

SPACER - spool travel

1шт.

15

R30857

SPACER

- cap, spool end

1шт.

16

R30847

PLUG

- load response, Includes: Ref. 17

1шт.

17

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

18

R31053

PLATE

- orifice

1шт.

D66452

CHECK VALVE

CHECK ASSEMBLY - load, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

20

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

1шт.

21

R30860

SPRING

- load check

1шт.

22

R30858

SPOOL

POPPET - load check

1шт.

23

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - hex socket head, 5/16" - 18 NC x 1"

4шт.

24

D70588

PLATE ASSY.

PLATE - load check

1шт.

25

D70589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

R36357

VALVE

KIT - body check, R30838 section, Includes: Ref. 26 - 28

1шт.

26

R30860

SPRING

- poppet

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE - poppet

1шт.

28

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

29

D77636

VALVE SPRING

SPRING - poppet, D75922 and D80365 sections

1шт.

30

D77634

SPOOL

POPPET - load check, D75922 and D80365 sections

1шт.

Выбрано товаров: 37
