Запчасти Case 1450 (316) - D75921 AND D80364 DOZER LIFT SECTION, PLASTIC CAP ON SPOOL CHECK (08) - HYDRAULICS

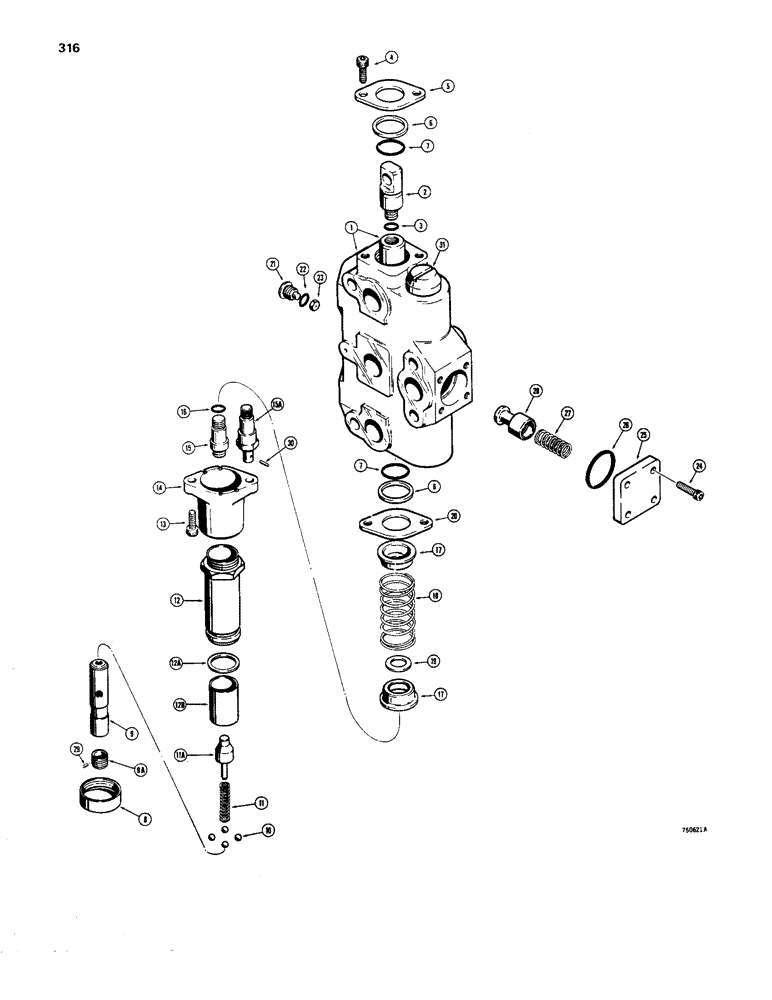

Схема запчастей Case 1450 - (316) - D75921 AND D80364 DOZER LIFT SECTION, PLASTIC CAP ON SPOOL CHECK (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

D75921

NO LONGER SERVICED

LIFT SECTION - 6" (152 mm) thick, Includes: Ref. 1 - 31

1шт.

If you are replacing section D75921 complete, identify the control valve in which section D75921 is used, figures 286 to 309A. See the information on these figures for ordering individual sections.

1шт.

D80364

VALVE

LIFT SECTION - 6-13/16" (173 mm) thick, Includes: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

R30844

CONNECTOR, ELEC

END - spool, connector, Includes: Ref. 3

1шт.

3

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

4

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - hex socket head, 1/4" - 20 NC x 1/2"

2шт.

5

R30862

SPACER

PLATE - end, spacer

1шт.

6

D54585

WASHER

RETAINER - seal, spool

2шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

8

D77637

DUST CAP

CAP - detent

1шт.

9

D77633

RETAINER

SLEEVE - detent, D75921 section

1шт.

9

D80362

SLEEVE VALVE

SLEEVE - detent, D80364 section

1шт.

9a

D77641

ADJUSTMENT SCREW

RETAINER - detent

1шт.

10

211-357

BALL,1/4" Dia

- steel

4шт.

11

D77639

SPRING

- detent

1шт.

11a

D77632

PLUNGER

1шт.

12

D77635

CYLINDER END CAP

RETAINER - detent

1шт.

12a

D77642

WASHER

1шт.

12b

D77631

SLEEVE CYLINDER

SLEEVE - float detent

1шт.

13

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- hex socket head, 1/4" - 20 NC x 3/4"

2шт.

14

R30974

CAP

- spool end

1шт.

15

D77630

SCREW - D75921 section, Includes: Ref. 16

1шт.

16

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

16a

D80360

SCREW

- D80364 section

1шт.

17

R30856

COLLAR

- spring retaining

2шт.

18

R30861

SPRING

- centering, spool

1шт.

19

R30863

BUSHING

SPACER - spool travel, D75921 section

1шт.

19

D80361

SPACER

- spool travel, D80364 section

1шт.

20

R30857

SPACER

- cap

1шт.

21

R30847

PLUG

- load response, Includes: Ref. 22

1шт.

22

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

23

R31053

PLATE

- orifice

1шт.

24

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - hex socket head, 5/16" - 18 NC 1"

4шт.

25

D70588

PLATE ASSY.

PLATE - load check

1шт.

26

D70589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

27

D77636

VALVE SPRING

SPRING

1шт.

28

D77634

SPOOL

POPPET

1шт.

29

D80363

AXLE PIN

PIN - nylon

1шт.

30

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

31

R30849

VALVE

ANTICAVIATATION ASSEMBLY - parts list Figure 328

1шт.

Выбрано товаров: 41
