Запчасти Case 1450 (312) - INLET AND OUTLET SECTIONS (08) - HYDRAULICS

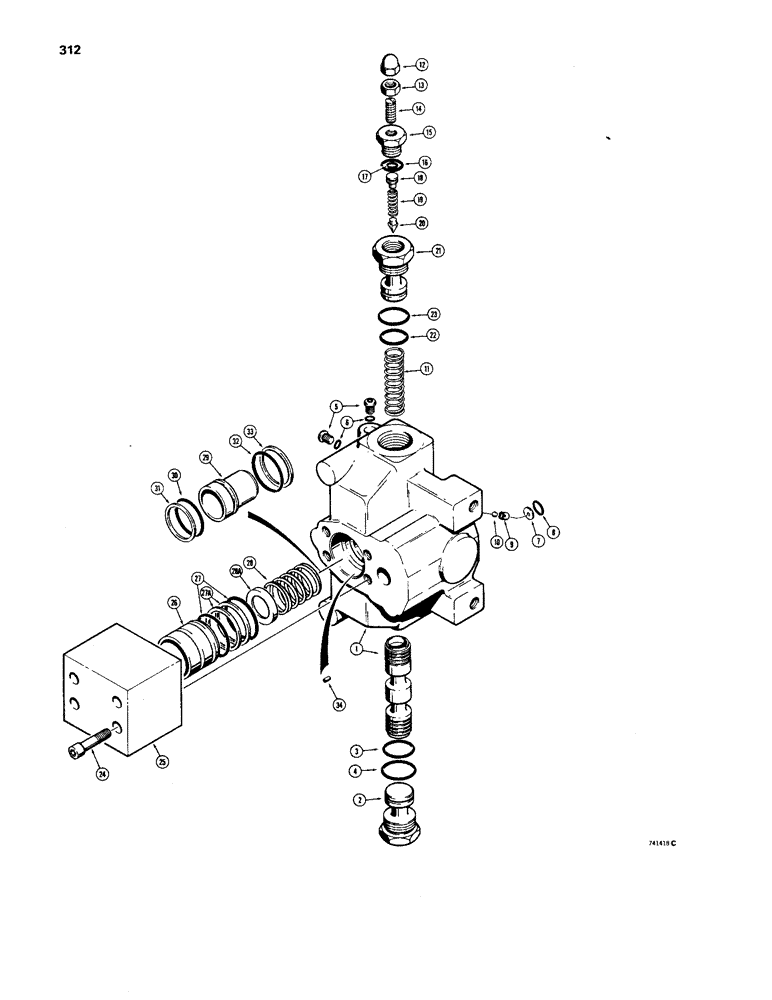

Схема запчастей Case 1450 - (312) - INLET AND OUTLET SECTIONS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

D65195

X

INLET AND OUTLET SECTION - dozer, Includes: Ref. 1 - 34

1шт.

To identify the part number of the inlet and outlet section, identify the control valve in which the inlet and outlet section is used. See figure 286 to 298 for dozers; figures 300 to 310 for loaders. The correct part number is shown with each control valve.

1шт.

D80366

VALVE

INLET AND OUTLET SECTION - dozer, Includes: Ref. 1 - 34

1шт.

To identify the part number of the inlet and outlet section, identify the control valve in which the inlet and outlet section is used. See figure 286 to 298 for dozers; figures 300 to 310 for loaders. The correct part number is shown with each control valve.

1шт.

D65198

NO LONGER SERVICED

INLET AND OUTLET SECTION - loader, Includes: Ref. 1 - 34

1шт.

To identify the part number of the inlet and outlet section, identify the control valve in which the inlet and outlet section is used. See figure 286 to 298 for dozers; figures 300 to 310 for loaders. The correct part number is shown with each control valve.

1шт.

D80330

NO LONGER SERVICED

INLET AND OUTLET SECTION - loader, Includes: Ref. 1 - 34

1шт.

To identify the part number of the inlet and outlet section, identify the control valve in which the inlet and outlet section is used. See figure 286 to 298 for dozers; figures 300 to 310 for loaders. The correct part number is shown with each control valve.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - inlet section

1шт.

2

R30842

PLUG

- special, Includes: Ref. 4 and 5

1шт.

3

R30989

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- small, inner

1шт.

4

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- large, outer

1шт.

5

86632547

PLUG,Hex, 5/16"-24 ORB

Includes Ref. 6 Hex Soc, 5/16"-24 ORB

2шт.

6

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

7

D80367

PLATE ASSY.

PLATE - orifice

1шт.

8

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

R30854

RETAINER

- ball

1шт.

10

211-355

BALL

- steel, 3/16" dia

1шт.

11

R30853

SPRING

- load response

1шт.

R30843

VALVE

ASSEMBLY - relief, pilot, Includes: Ref. 13 - 23

1шт.

12

129-526

CROWN NUT,Low, 3/8" - 24

- acorn, 3/8" - 24 NF

1шт.

13

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, 3/8" - 24 NF

1шт.

14

D55933

SCREW

- adjusting

1шт.

15

R30975

PLUG

- pilot, Includes: Ref. 16

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

1шт.

18

D55932

PISTON

- relief

1шт.

19

R30980

SPRING

- relief

1шт.

20

R30979

SPOOL

POPPET - relief

1шт.

21

R30976

CARTRIDGE

- relief, Includes: Ref. 22 and 23

1шт.

22

R30989

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- small

1шт.

23

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- large

1шт.

24

61-424

HEX SOC SCREW,1/4"-20 x 1 1/2"

SCREW - hex socket, 3/8" - 16 NC x 1-1/2"

4шт.

24

61-432

HEX SOC SCREW,1/4"-20 x 2"

SCREW, Hex Soc Hd, 1/4"-20 x 2"

4шт.

25

D65194

TUBE NUT

ADAPTER - block

1шт.

D65193

SLEEVE

ASSEMBLY - D65195 and D65198 section

1шт.

D80371

SLEEVE CYLINDER

SLEEVE ASSEMBLY - D80366 and D80330 section

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

27

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

2шт.

27a

S110725

RING

- backup, D80371 sleeve

2шт.

28

D65189

SPRING

- D65195 and D65198 section

1шт.

28

D80369

SPRING

- D80366 and D80330 section

1шт.

28a

D80372

RETAINER

- D80369 spring

1шт.

D65192

SPOOL

ASSEMBLY - D65195 and D65198 section, Includes: Ref. 29 - 31

1шт.

D80368

SPOOL

ASSEMBLY - D80366 and D80330 section, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

30

A16755

O-RING

1шт.

31

D65191

WASHER

- backup, D65192 spool

1шт.

31

D80370

WASHER

- backup, D80368 spool

1шт.

32

A16755

O-RING

1шт.

33

D65191

WASHER

- backup, D65195 and D65198 section

1шт.

33

D80370

WASHER

- backup, D80366 and D80330 section

1шт.

34

D70590

ORIFICE

- if used

1шт.

Выбрано товаров: 53
