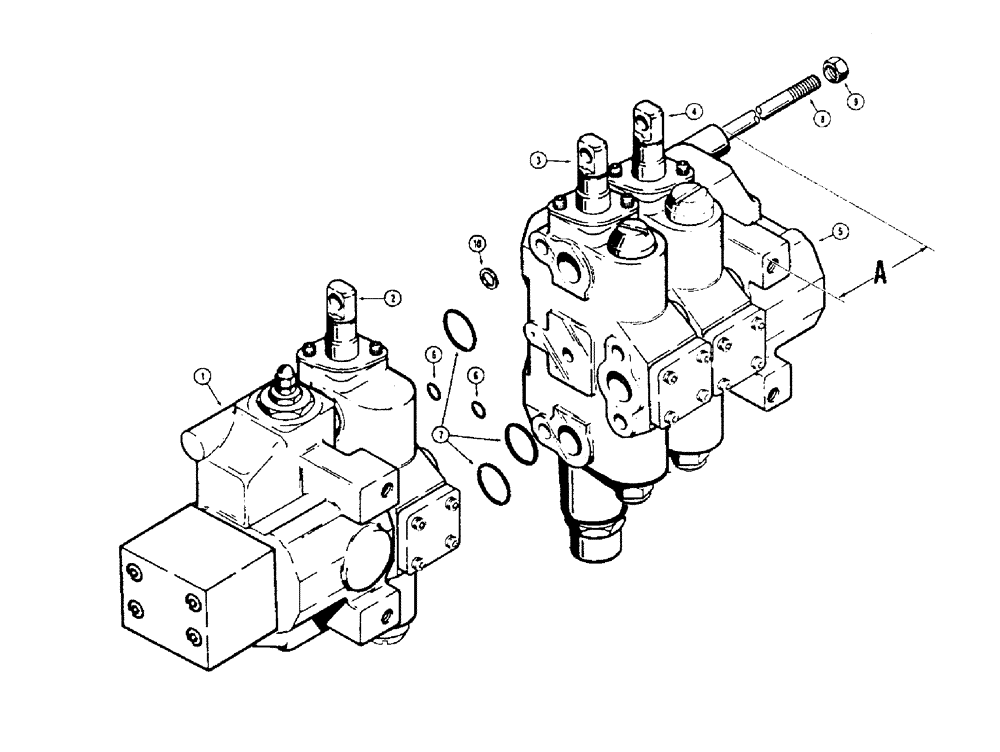

Запчасти Case 1450 (306) - R38201 3 SPOOL VALVE, LOADER WITH RIPPER OR 4-IN-1 BUCKET (08) - HYDRAULICS

R38201

VALVE

- Cross no. 6LR 003-250103, see Note 2, Figure 278

1шт.

Order R40053 for complete valve replacement. Also order R40578 tube, R40580 tube, R40581 tube and R40583 tube.

1шт.

1

D65198

NO LONGER SERVICED

INLET AND OUTLET SECTION - parts list Figure 312

1шт.

2

D75923

X

BUCKET TILT SECTION - parts list Figure 322

1шт.

Service with D80331 section, R40580 and R40578 tubes.

1шт.

2

D80331

VALVE

BUCKET TILT SECTION - parts list Figure 322

1шт.

3

D77549

ELEMENT

LIFT SECTION - parts list Figure 326

1шт.

Service with D80332 section, R40581 and R40583 tubes.

1шт.

3

D80332

VALVE

LIFT SECTION - parts list Figure 326

1шт.

4

R38246

HYD VALVE SECTION

RIPPER, CLAM OR AUXILIARY SECTION - parts list Figure 320

1шт.

Service with R40790 section, R40789 cover, (4) R40791 bolts, if 4-in-1 bucket is used also order R39973 and R39975 tubes.

1шт.

4

R40790

SEGMENT

RIPPER, CLAM OR AUXILIARY SECTION - parts list Figure 320

1шт.

5

R38536

PLATE ASSY.

COVER - 2-15/16" (75 mm) at A

1шт.

5

R40789

PLATE

COVER - 1-15/16" (49 mm) at A

1шт.

6

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- small

5шт.

7

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- large

15шт.

8

R30972

BOLT

ROD - 7/16" - 14 NC x 11-1/2", used with R38536 cover

4шт.

8

R40791

TIE-ROD

ROD - 7/16" - 14 NC x 10-1/2", used with R40789 cover

4шт.

9

25-117

NUT,7/16"-20, G5

- hex, 7/16" - 14 NC

4шт.

10

R38250

SHIM,.002" Thk

4 per section (.0508 mm) .002" Thk

1шт.
